Description

Price

1400

LH Rear Fender

705015053

$204.99

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1440

Panel Nut M6 X 1.0

250100198

$2.11

1460

Black, Dart

414644300

$0.98

1480

Stainless Steel Flat Washer

234062670

$2.11

1500

RH Rear Fender

705015055

$204.99

1600

Air Filter Acces Door

705015057

$75.99

1610

Grommet

705003264

$4.09

1625

Quarter Turn

708400278

$4.29

1650

Clip

708400285

$3.99

1675

Washer

708400286

$3.99

2000

Timeless Black, LH Rear Panel Trim

705015602

$139.99

2010

Clip

517306478

$1.09

2100

Timeless Black, RH Rear Panel Trim

705015603

$139.99

2300

Rear Upper Cab Panel Ass'y

715008563

$154.99

2310

Panel Nut M6 X 1.0

250100198

$2.11

2315

Flat Washer M6.6 X 22

250200162

$2.32

2320

Torx Screw M6 X 20

250000722

$1.68

2325

Torx Screw M6 X 20

250000722

$1.68

2330

Cab Panel Support

705015686

$124.99

2335

Insert Half Hex Body M6 x 1.0

250100199

$3.19

2340

Torx Truss Screw M6 X 16

250000721

$1.69

2350

CVT Air Inlet Cover

705011339

$18.99

2400

Liquid Acces Cover

705015149

$73.99

2410

Cover Latch Quarter Turn

708400065

$2.79

2450

Air Intake Cover

705011340

$16.99

2475

Rear Cage Trim Kit | Includes 2475 to 2475a

705016344

$28.99

2475a

Rear Cage Trim

705015862

$4.69

2600

LH Rear Wheel Arch Protector

705015886

$45.49

2610

Tuflok Plastic Rivet

293150230

$1.47

2620

Torx Screw K50 X 16

250000720

$1.69

2630

Washer M5

250200025

$0.74

2700

RH Rear Wheel Arch Protector

705016135

$45.49

2710

Panel Nut M6 X 1.0

250100198

$2.11

2720

Stainless Steel Flat Washer

234062670

$2.11

2730

Torx Screw M6 X 20

250000722

$1.68

2740

Tuflok Plastic Rivet

293150230

$1.47

3100

LH Median Side Panel

705011430

$109.99

3110

Torx Screw M6 X 20

250000722

$1.68

3200

RH Median Side Panel

705011431

$109.99

3300

LH Rear Rocker Panel

705013190

$90.99

3310

Panel Nut M6 X 1.0

250100198

$2.11

3320

Pop Rivet 3/16”

293150108

$1.19

3330

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

3340

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

3350

Flat Washer M6.6 X 22

250200162

$2.32

3400

RH Rear Rocker Panel

705013191

$90.99

3500

LH Rear Fixed Panel

705013140

$49.99

3510

Pop Rivet 3/16”

293150108

$1.19

3600

RH Rear Fixed Panel

705013141

$49.99

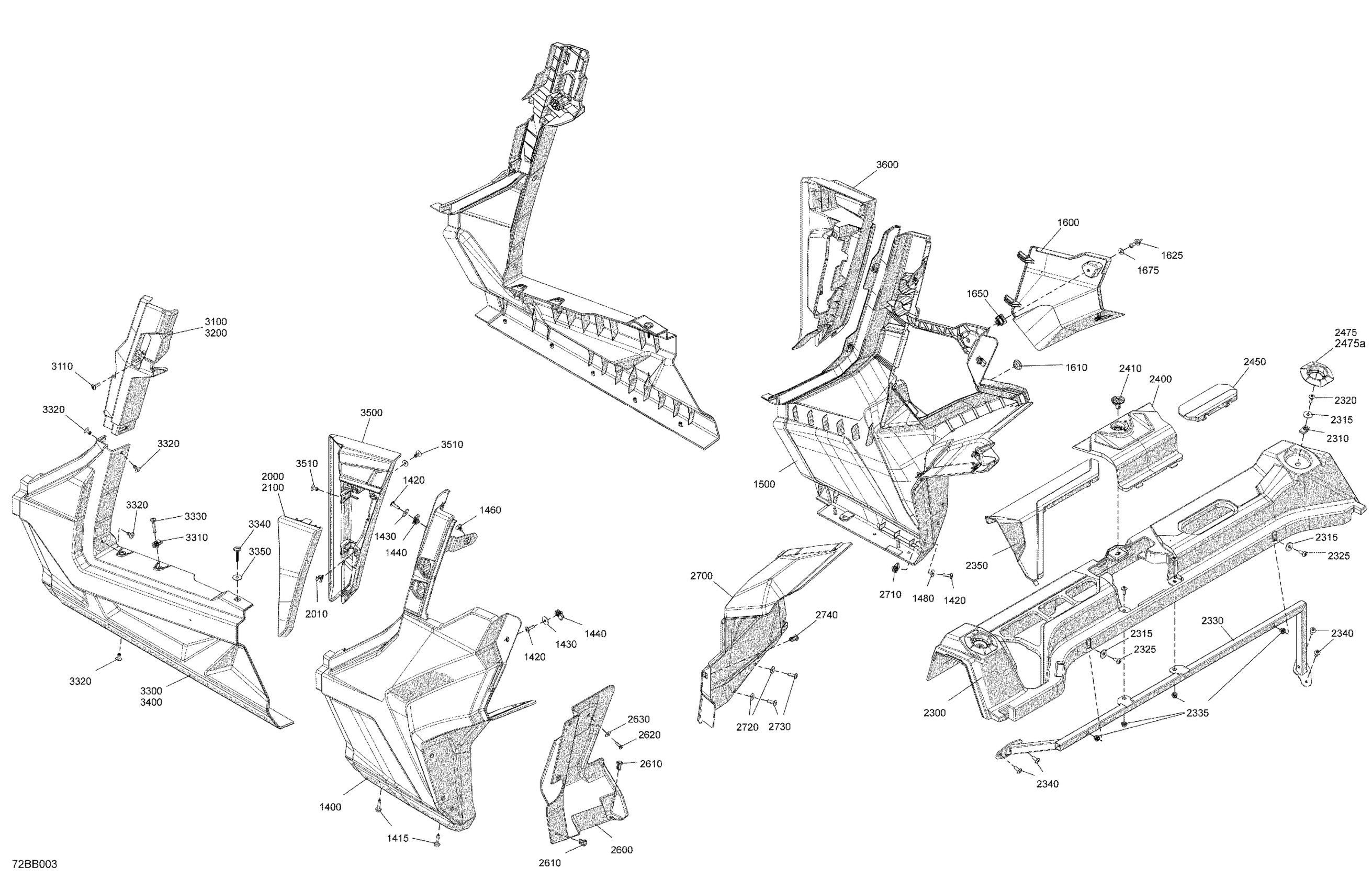

Can-Am 006 - Commander MAX 1000R EFI - XTP - International, 2022 07- Body - Rear Section Diagram

LH Rear Fender

Hex. Flange Screw M6 X 25

Torx Screw M6 X 20

Flat Washer M6.6 X 22

Panel Nut M6 X 1.0

Black, Dart

Stainless Steel Flat Washer

RH Rear Fender

Air Filter Acces Door

Grommet

Quarter Turn

Clip

Washer

Timeless Black, LH Rear Panel Trim

Clip

Timeless Black, RH Rear Panel Trim

Rear Upper Cab Panel Ass'y

Panel Nut M6 X 1.0

Flat Washer M6.6 X 22

Torx Screw M6 X 20

Torx Screw M6 X 20

Cab Panel Support

Insert Half Hex Body M6 x 1.0

Torx Truss Screw M6 X 16

CVT Air Inlet Cover

Liquid Acces Cover

Cover Latch Quarter Turn

Air Intake Cover

Rear Cage Trim Kit | Includes 2475 to 2475a

Rear Cage Trim

LH Rear Wheel Arch Protector

Tuflok Plastic Rivet

Torx Screw K50 X 16

Washer M5

RH Rear Wheel Arch Protector

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Torx Screw M6 X 20

Tuflok Plastic Rivet

LH Median Side Panel

Torx Screw M6 X 20

RH Median Side Panel

LH Rear Rocker Panel

Panel Nut M6 X 1.0

Pop Rivet 3/16”

Torx Truss Hex. Screw M6X35, Nylon Patch

Torx Truss Screw Head PT.K50 X 40

Flat Washer M6.6 X 22

RH Rear Rocker Panel

LH Rear Fixed Panel

Pop Rivet 3/16”

RH Rear Fixed Panel
