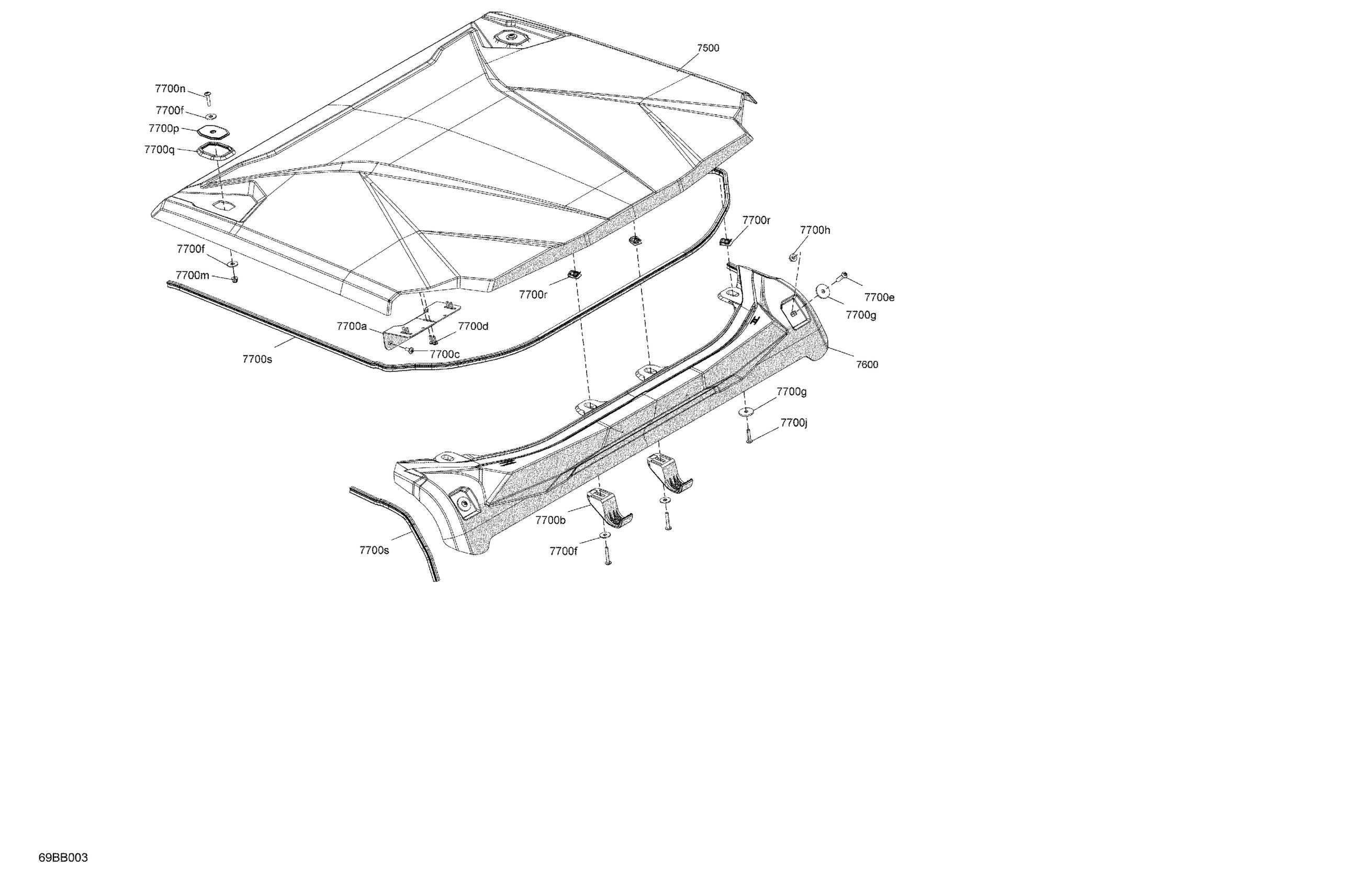

Can-Am 006 - Commander 1000R EFI - XTP - North America, 2022 07- Body - Roof Diagram

Description

Price

7500

Deep Black, Front Rigid Roof

705800679

$204.99

7600

Deep Black, Rear Roof Visor

705800681

$53.99

7700a

Roof Anchor

705800804

$16.33

7700b

Roof Anchor

705800795

$12.71

7700c

Torx Truss M8 X 16

250000881

$2.11

7700d

Torx Screw K50 X 16

250000720

$1.69

7700e

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

7700f

Stainless Steel Flat Washer

234082670

$2.11

7700g

Flat Washer M8

250200158

$2.11

7700h

Hex. Flange Nut M8

233181414

$1.15

7700j

Torx Truss Screw M6 X 30

250000843

$2.11

7700k

Torx Truss M/S M6 X 40

705800890

$17.49

7700m

Hex. Flange Elastic Nut M6

233261494

$1.58

7700n

Stainless, Torx Screw M6 X 30

250000842

$2.11

7700p

Spacer

708303993

$2.11

7700q

Gasket

708304060

$2.00

7700r

Panel Nut M6 X 1.0

250100208

$1.46

7700s

Outer Seal

705800054

$35.99
