Description

Price

10

Interior Open Carrier Ass'y

715009086

$549.99

30

LH Exterior Panel | Includes 30 to 30a

708304330

$179.99

30a

LH Panel Exterior

708304328

$189.99

40

RH Exterior Panel | Includes 40 to 40a

708304331

$179.99

40a

RH Panel Exterior

708304329

$189.99

80

Torx Screw M6 X 25 | XT Models

250000728

$4.44

85

Pop Rivet 3/16”

293150108

$1.19

90

Flat Washer M6.6 X 22

250200162

$2.32

100

Carriage Bolt M8 X 60

207786044

$14.21

110

Flat Washer 8 mm

234082410

$1.47

120

Hex. Flange Elastic Nut M8

233281414

$1.47

180

Panel Nut M6 X 1.0

250100224

$2.11

190

Panel Nut M6 X 1.0

250100198

$2.11

200

Deflector

708302584

$16.99

210

Pop Rivet 3/16”

293150108

$1.19

220

Washer

517124300

$0.19

300

Outside Tailgate

708301227

$124.99

305

Panel Cargo Box Ass'y | Includes 305 to 305f

708302914

$369.99

305b

Handle Support

708302913

$27.99

305c

Handle

708302911

$25.99

305d

Torx Screw Truss Head K50X20 T20

250000760

$2.11

305f

Washer M5

250200025

$0.74

340

Handle Rod

708301500

$6.59

350

Bushing Hinge

708304564

$3.39

360

Washer

708301653

$2.61

370

Hairpin Cotter

269800431

$1.29

380

Spring

705009468

$5.99

390

Spring

705009470

$13.49

400

Spring

705009471

$13.49

430

LH Tailgate Support

708304219

$24.49

440

RH Tailgate Support

708304221

$28.99

450

Hex. Flange Screw M6 X 35

207663554

$2.11

460

Hex. Flange Screw M6 X 25

207662554

$1.48

470

Flat Washer M6.6 X 22

250200162

$2.32

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

490

Bushing

708300737

$5.99

500

Cable

708301491

$31.99

540

Latch Stopper

708304062

$10.99

590

Hex. Flange Screw M6 X 25

207662554

$1.48

600

Hex. Flange Screw M6 X 35

207663554

$2.11

620

Bushing

708300737

$5.99

650

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

700

Torx Screw Truss Head K50X20 T20

250000760

$2.11

710

Washer M5

250200025

$0.74

720

Torx Truss Screw M6 X 25

250000807

$2.11

730

Flat Washer M6.6 X 22

250200162

$2.32

800

Open Carrier Frame Kit

703501215

$329.99

830

Rubber Stopper

708304601

$2.29

830a

Washer

224060251

$0.58

835

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

840

Rubber Bumper

293830005

$8.09

1210

Support Pivot

708303735

$17.49

1220

O-Ring

293300131

$5.29

1600

Latch Lever

708303712

$85.99

1605

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1610

Cap Latch Lever

708300358

$6.59

1640

Half Ring

705503570

$7.99

1660

Clamp Retainer

708301479

$3.98

1670

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1720

LH Torsion Spring

708303190

$4.79

1730

RH Torsion Spring

708303191

$4.79

1740

Deflector

708303097

$12.49

1750

Tuflok Plastic Rivet

293150230

$1.47

2000

Gas Shock Absorber

715007129

$54.99

2010

Pin Clevis

250400098

$5.99

2020

Hair Pin

414575600

$1.89

3000

Retaining Plate

708301480

$9.69

3020

Hex. Flange Screw M6 X 20

207662054

$1.01

3500

Red, Reflector

705016982

$14.49

3520

Elastic Stop Nut M5

232551414

$0.87

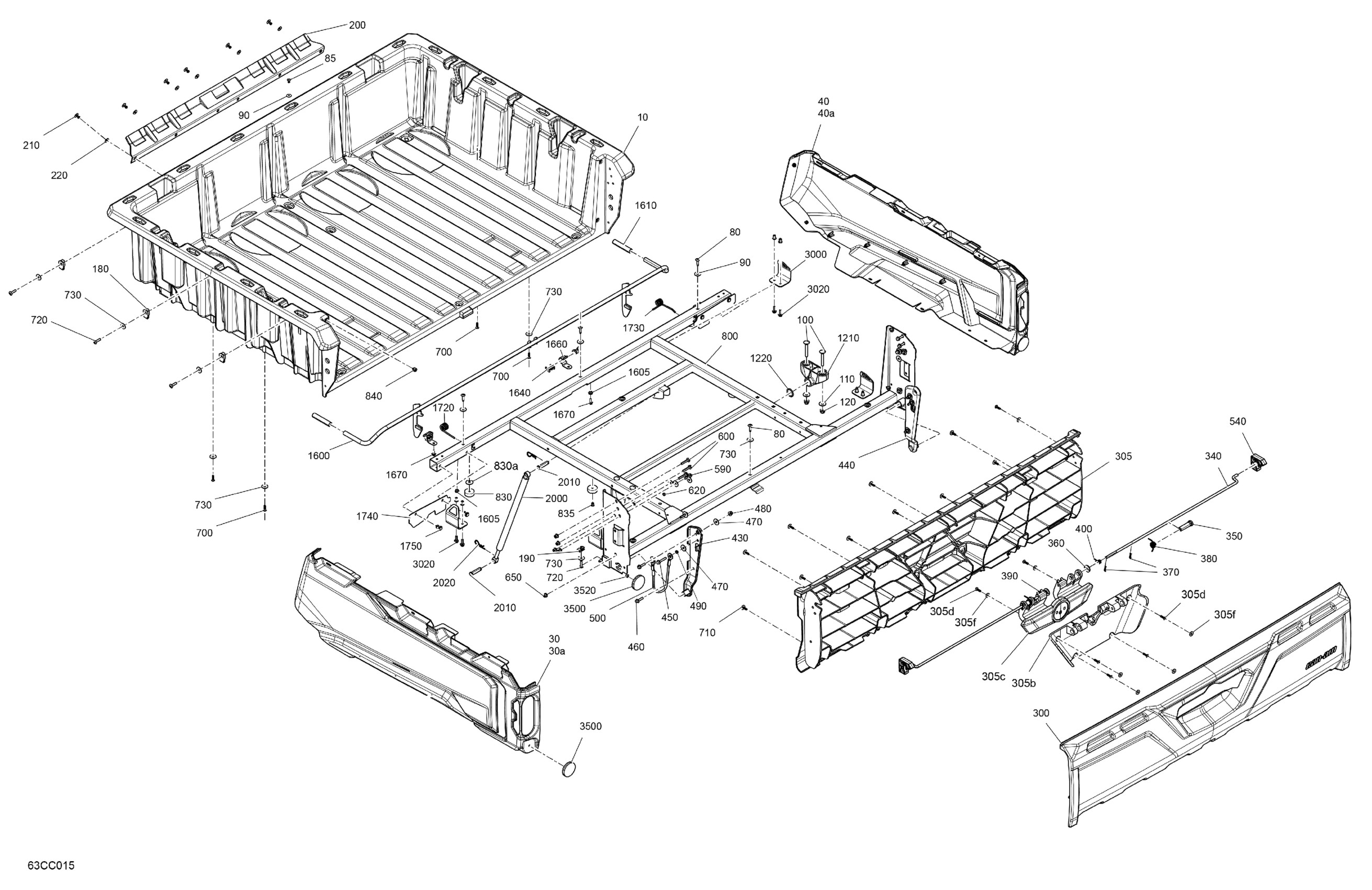

Can-Am 005 - Traxter HD10 - XU - T Regulation, 2023 07- Body - Cargo Diagram

Interior Open Carrier Ass'y

LH Exterior Panel | Includes 30 to 30a

LH Panel Exterior

RH Exterior Panel | Includes 40 to 40a

RH Panel Exterior

Torx Screw M6 X 25 | XT Models

Pop Rivet 3/16”

Flat Washer M6.6 X 22

Carriage Bolt M8 X 60

Flat Washer 8 mm

Hex. Flange Elastic Nut M8

Panel Nut M6 X 1.0

Panel Nut M6 X 1.0

Deflector

Pop Rivet 3/16”

Washer

Outside Tailgate

Panel Cargo Box Ass'y | Includes 305 to 305f

Handle Support

Handle

Torx Screw Truss Head K50X20 T20

Washer M5

Handle Rod

Bushing Hinge

Washer

Hairpin Cotter

Spring

Spring

Spring

LH Tailgate Support

RH Tailgate Support

Hex. Flange Screw M6 X 35

Hex. Flange Screw M6 X 25

Flat Washer M6.6 X 22

Hex. Flange Elastic Nut M6 x 1.0

Bushing

Cable

Latch Stopper

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 35

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Torx Screw Truss Head K50X20 T20

Washer M5

Torx Truss Screw M6 X 25

Flat Washer M6.6 X 22

Open Carrier Frame Kit

Rubber Stopper

Washer

Black, Pop Rivet 3/16 X ,550

Rubber Bumper

Support Pivot

O-Ring

Latch Lever

Insert Half Hex Body M6 x 1.0

Cap Latch Lever

Half Ring

Clamp Retainer

Hex. Flange Screw M6 X 16, Scotch Grip

LH Torsion Spring

RH Torsion Spring

Deflector

Tuflok Plastic Rivet

Gas Shock Absorber

Pin Clevis

Hair Pin

Retaining Plate

Hex. Flange Screw M6 X 20

Red, Reflector

Elastic Stop Nut M5
