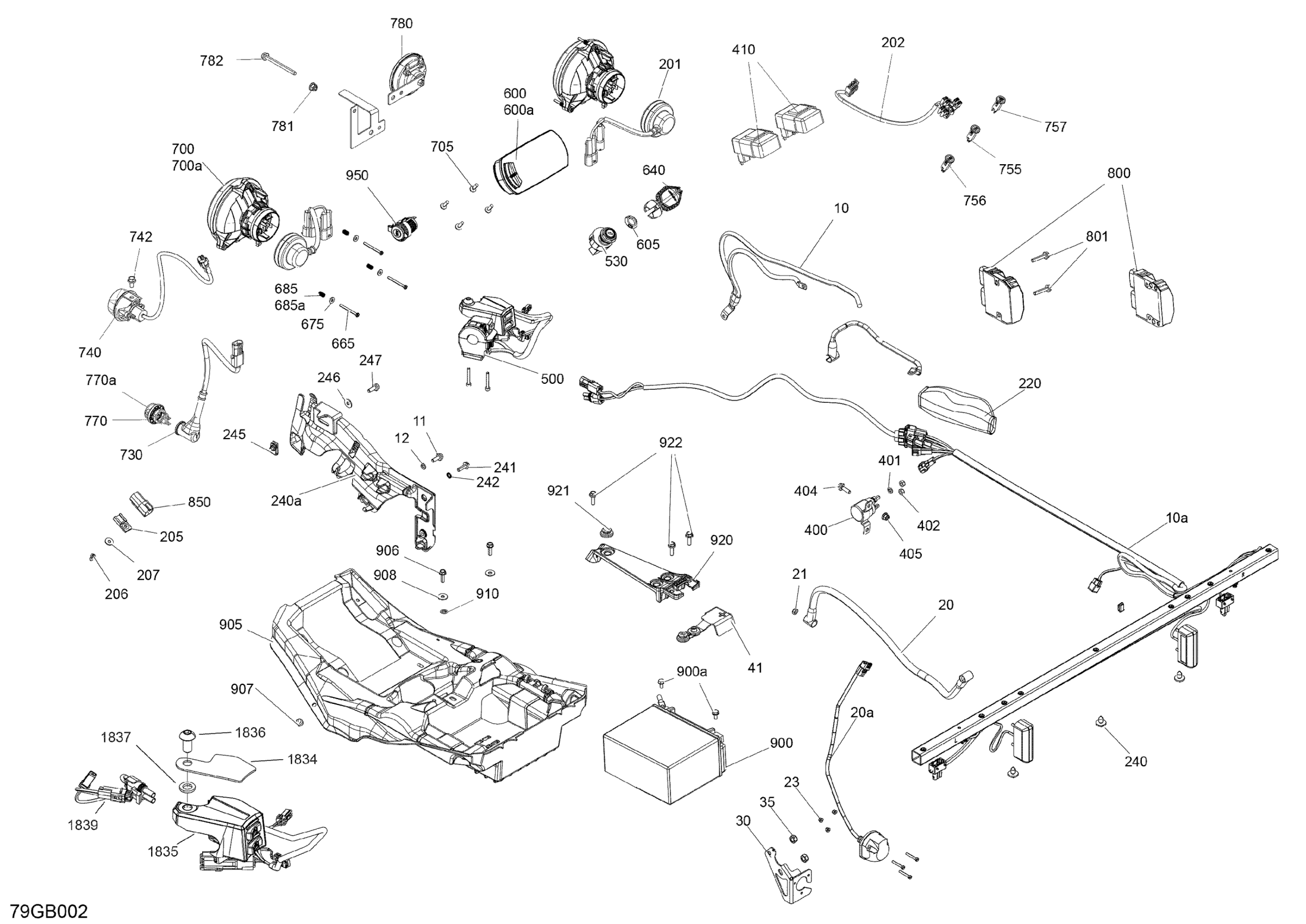

Can-Am 005 - Outlander T MAX 6X6 - 450 EFI - XU+ - T Regulation, 2022 08- Electric - System Diagram
#
10
Ground Cable
710004380
Unavailable
10a
Rear Light Harness
710005932
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
20
Positive Cable | Engine 450
710004381
Unavailable
20a
Trailer Harness
710005846
Unavailable
21
Elastic Stop Nut M6
232561434
Unavailable
23
Flange Elastic Nut M5
233251434
Unavailable
30
Plug Fastening Plate
705204572
Unavailable
35
Elastic Stop Nut M10
232500416
Unavailable
41
Battery Cable Cap
710006729
Unavailable
201
Light Cable
710005780
Unavailable
202
Indicator Light Cable
710005840
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
220
Sheath | Not Shown
710004193
Unavailable
240
Mount Dart
293730040
Unavailable
240a
Cable Bracket
707001280
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
245
Panel Nut M6 X 1.0
250100198
Unavailable
246
Flat Washer 6 mm
234062410
Unavailable
247
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561434
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
410
Flasher Unit
710003239
Unavailable
500
LH Front Switch Housing
710006672
Unavailable
530
Terminal Dess One-Wire | Except Model Europe
515178840
Unavailable
600
Multifunction Gauge Compact Mono
710008108
Unavailable
600a
Multifunction Compact Gauge
710007407
Unavailable
605
Safety Nut (DESS Switch)
278002963
Unavailable
640
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
675
Flat Washer
517225900
Unavailable
685
Spring
517168600
Unavailable
685a
Spring
517168600
Unavailable
700
Low Beam
710003900
Unavailable
700a
Bulb, 12V 35/35W
710000871
Unavailable
705
Torx Screw K50 X 16
250000720
Unavailable
730
Position Light Harness
710005676
Unavailable
740
Flasher | Europe
710002964
Unavailable
742
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
755
Pilot Light Trailer Flasher
710005766
Unavailable
756
Pilot Light Tail Lamp
710005767
Unavailable
757
Pilot Lamp | Model-Europe
710003909
Unavailable
770
Day Light | Europe
710001726
Unavailable
770a
Cap Protector | Model-Europe
710003269
Unavailable
780
Horn
710004791
Unavailable
781
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
782
Hex. Flange Screw M6 X 70
207667044
Unavailable
800
Voltage Regulator | Package-DPS, Model-Europe
710005569
Unavailable
801
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
850
Housing
710003006
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
910
Push Nut
732610072
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
950
DC Outlet
710001248
Unavailable
1834
Top Plate
715004008
Unavailable
1835
Multifonction Housing Ass'y
710004990
Unavailable
1836
Screw M10 X1.25 X 20 BHCS S.Grip
710005908
Unavailable
1837
Washer
503192496
Unavailable
1839
Cable
710004567
Unavailable
