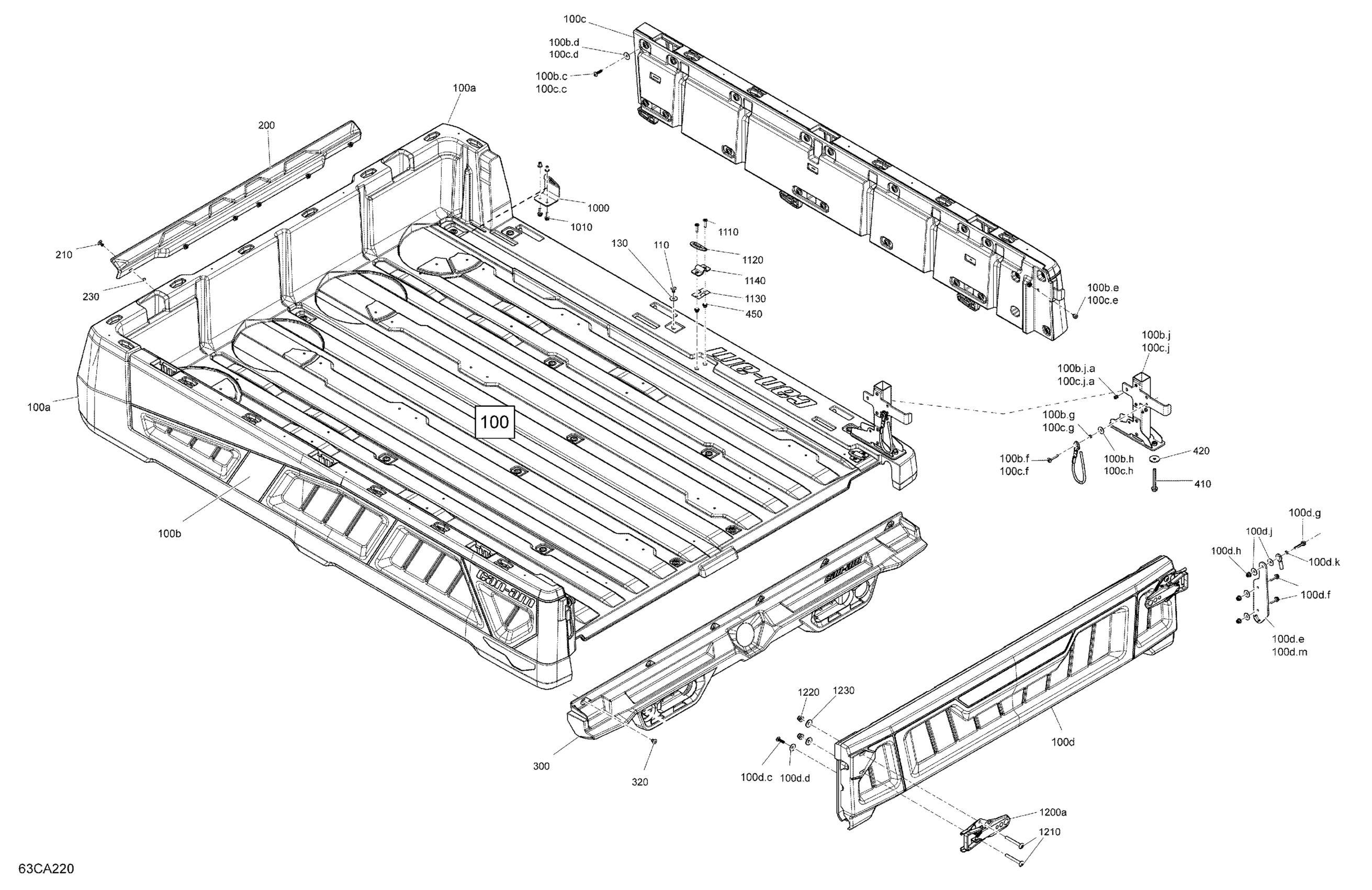

Can-Am 004 - Traxter PRO T HD10 - DPS - T Regulation, 2021 07- Body - Cargo - Upper Section Diagram

#

Description
Price

100

Cargo Box Inside Ass'y | Includes 100 to 100d.m

715007520

$1,959.99

100a

Cargo Box Inside Ass'y

715007479

$1,959.99

100b

LH Cargo Panel

708303499

$579.99

100b.c

Hex. Screw Pt K60 X 25

250000980

$2.11

100b.d

Flat Washer M6.6 X 22

250200162

$2.32

100b.e

Rubber Bumper

293830005

$8.09

100b.f

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100b.g

Bushing

293900101

$7.87

100b.h

Flat Washer M6.6 X 22

250200162

$2.32

100b.j

LH Panel Support | Includes 100b9 to 100b9a7

708304595

$119.99

100b.j.a

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

100c

RH Cargo Panel

708303500

$579.99

100c.c

Hex. Screw Pt K60 X 25

250000980

$2.11

100c.d

Flat Washer M6.6 X 22

250200162

$2.32

100c.e

Rubber Bumper

293830005

$8.09

100c.f

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100c.g

Bushing

293900101

$7.87

100c.h

Flat Washer M6.6 X 22

250200162

$2.32

100c.j

RH Panel Support | Includes 100c9 to 100c9a7

708304596

$119.99

100c.j.a

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

100d

Tailgate Ass'y

708303501

$429.99

100d.c

Hex. Screw Pt K60 X 25

250000980

$2.11

100d.d

Flat Washer M6.6 X 22

250200162

$2.32

100d.e

LH Tailgate Support

708303138

$28.99

100d.f

Hex. Flange Screw M6 X 25

207662554

$1.48

100d.g

Hex. Flange Screw M6 X 35

207663554

$2.11

100d.h

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100d.j

Flat Washer M6.6 X 22

250200162

$2.32

100d.k

Bushing

293900101

$7.87

100d.m

RH Tailgate Support

708303141

$28.99

110

Pop Rivet 3/16”

293150108

$1.19

130

Flat Washer M6.6 X 22

250200162

$2.32

200

Deflector

708303216

$55.99

210

Pop Rivet 3/16”

293150108

$1.19

230

Washer

517124300

$0.19

300

Taillight Support

708303497

$104.99

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

410

Hex. Flange Screw M8 X 70

207587044

$1.03

420

Flat Washer M8

250200187

$2.11

450

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1000

Retaining Plate

708301480

$9.69

1010

Hex. Flange Screw M6 X 20

207662054

$1.01

1110

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

$2.11

1120

D-Ring

708302990

$4.29

1130

Tie-Down Ring Spring

708302991

$2.39

1140

Tie-Down Ring Bracket

708302992

$2.39

1200a

Latch Ass'y

511001014

$38.99

1210

Torx Truss M8 X 65

250000901

$1.90

1220

Elastic Flange Nut M8

233281464

$1.01

1230

Stainless Steel Flat Washer

234082670

$2.11
