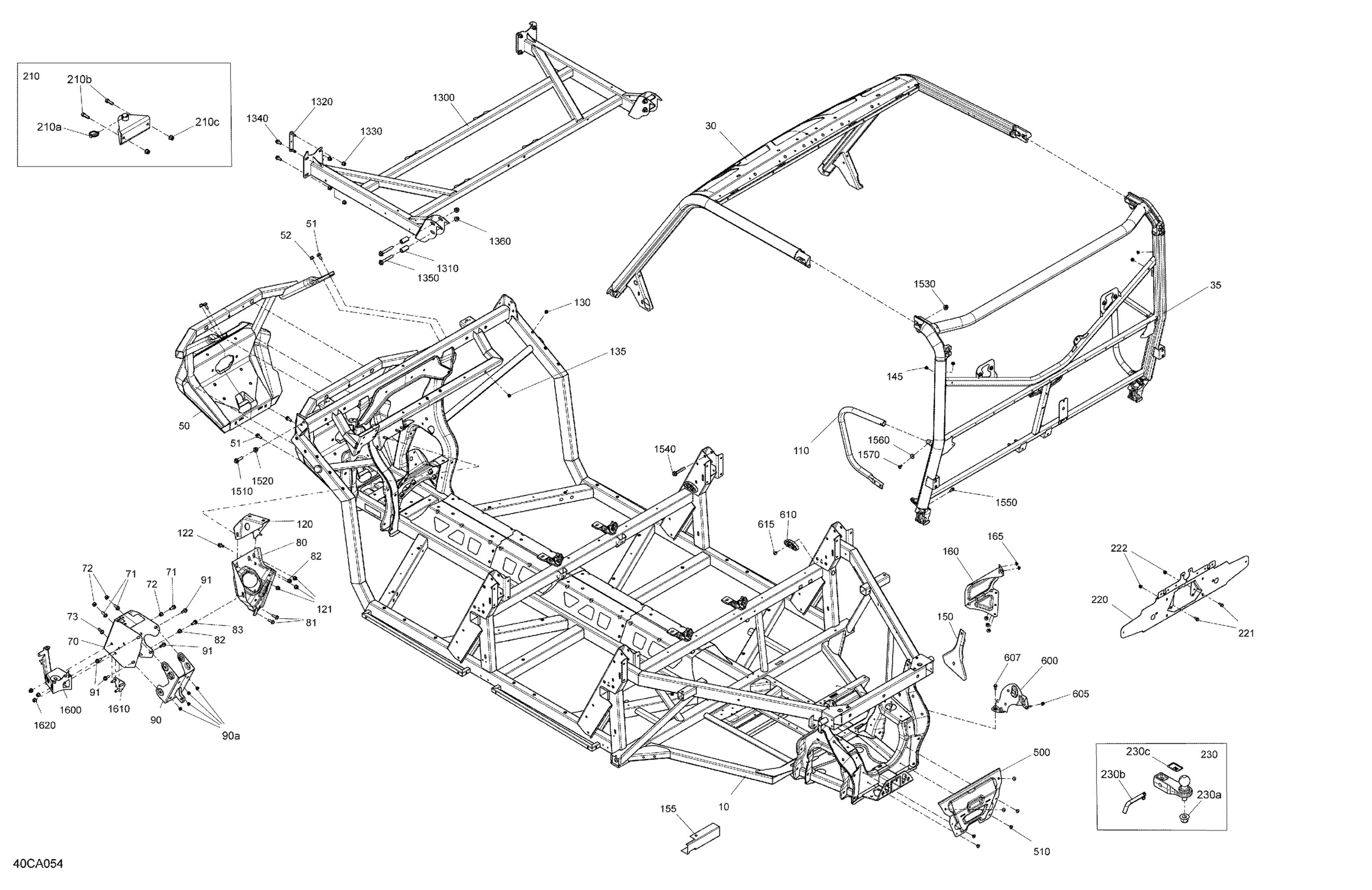

Can-Am 004 - Traxter PRO T HD10 - DPS - T Regulation, 2021 06- Frame - System Diagram

Deep Black, Chassis Kit

715009081

$3,159.99

Front Cage Ass'y

715008404

$649.99

Rear Cage Profile Ass'y

715006532

$649.99

Deep Black, Front Bumper

705207588

$499.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Module Support

705209388

$61.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Power Steering Support

705208741

$70.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Steering Column Support | Includes 90 to 90d

705209190

$37.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Deep Black, RH Protector Tube

705204592

$44.49

Support

705208742

$30.99

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Heat Shield

705014849

$2.59

Heat Shield

705015496

$2.59

Heat Shield

707002709

$61.99

Pop Rivet 3/16"

293150103

$0.55

Anchorage Strap F Ass'y | Includes 210 to 210c

705208973

$114.99

Pin

605456518

Unavailable

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Licence Plate Support

705014656

$114.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

Elastic Flange Nut M20

250100104

$12.66

Hitch Pin

705204490

$52.99

Hitch Approval Decal

704906897

$19.99

Rear Chassis Reinforcement

705207753

$33.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Voltage Regulator Support

710007522

$17.49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Spacer

705208203

$20.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Central Chassis Extension

705207484

$124.99

Spacer

705207818

$15.99

Support

705208025

$14.49

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682046

$1.90

Hex. Flange Screw M10 X 70

207607046

$2.96

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 35

250000855

$1.89

Hex. Flange Elastic Nut M10

233201436

$2.11

Flange Elastic Nut M10

233201466

$3.17

Hex. Flange Screw M10 X 6

207606046

$4.12

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Offset Washer

705202223

$4.14

Torx Truss M6X14

250000789

$5.39

Module Support

705601905

$85.99

Support

705209564

$10.99

Hex. Elastic Flange Nut M8

233281416

$1.48
