04- Drive - Front Section - Common Parts - DPS

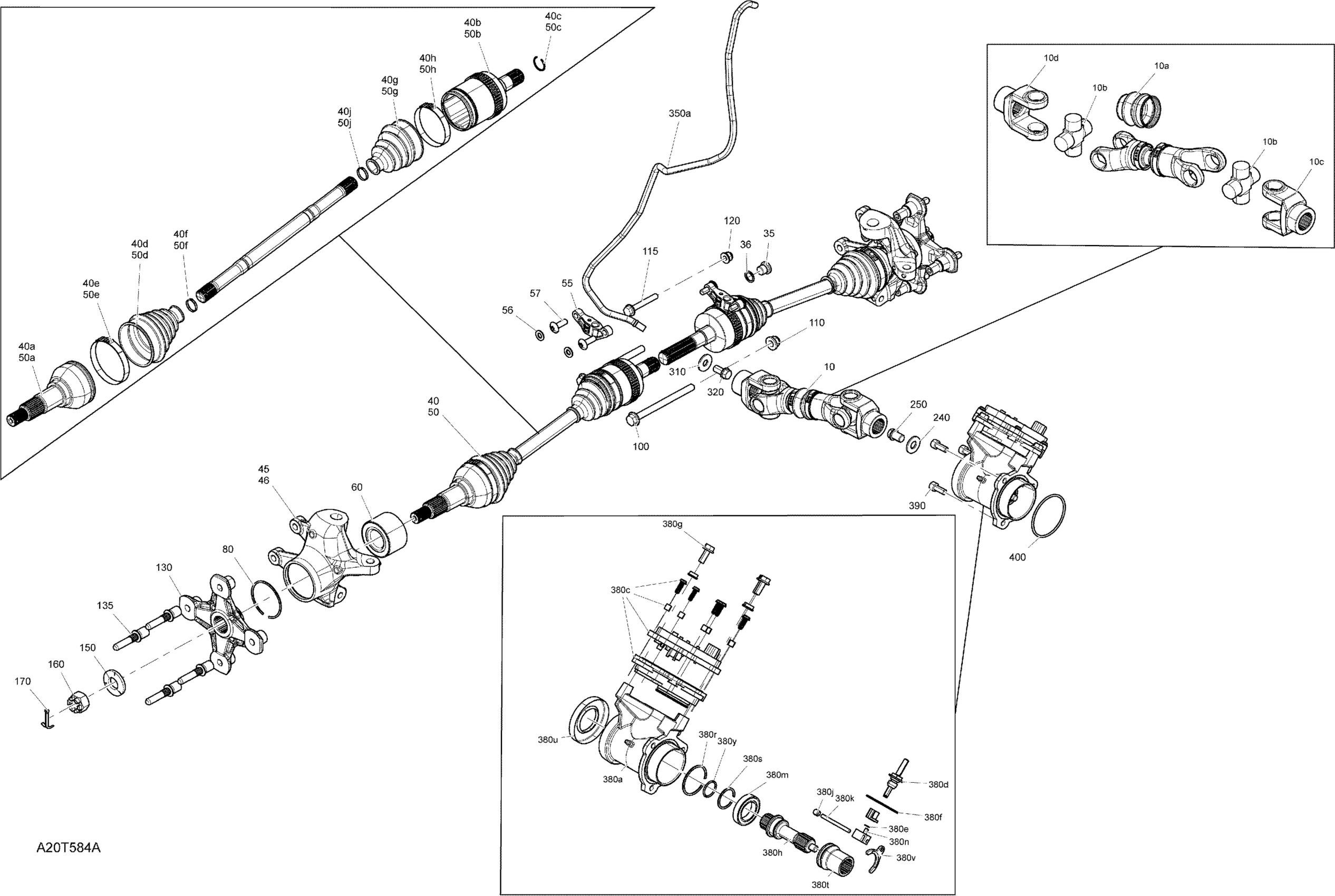

Can-Am 004 - Outlander T MAX 450 EFI - DPS - T Regulation, 2021 04- Drive - Front Section - Common Parts - DPS Diagram
#
10
Front Drive Axle
705403293
Unavailable
10a
Rubber Boot
715900118
Unavailable
10b
U-Joint Cross Kit | Engine 450
715900435
Unavailable
10c
Fixed Yoke Joint
715900497
Unavailable
10d
Yoke Joint
715900498
Unavailable
35
Fill Level Plug | 4X4
705500504
Unavailable
36
Copper Washer | 4X4
705500506
Unavailable
40
RH Homocinetic Joint | Includes 40 to 40f2
705402021
Unavailable
40a
CV Joint
705401344
Unavailable
40b
RH Plunging Joint
715900602
Unavailable
40c
Circlip Joint | Not shown
705401349
Unavailable
40d
Boot Kit, Wheel Side
705401345
Unavailable
40e
Oetiker Clamp
715900282
Unavailable
40f
Oetiker Clamp, Small
715900283
Unavailable
40g
Boot Kit, Differential Side
705401346
Unavailable
40h
Oetiker Clamp, Large
715900284
Unavailable
40j
Oetiker Clamp, Small
715900261
Unavailable
45
LH Knuckle
705403307
Unavailable
46
RH Knuckle
705403308
Unavailable
50
LH Homocinetic Joint | Includes 50 to 50f2
705402022
Unavailable
50a
CV Joint
705401344
Unavailable
50b
LH Plunging Joint
715900603
Unavailable
50c
Circlip Joint | Not shown
705401349
Unavailable
50d
Boot Kit, Wheel Side
705401345
Unavailable
50e
Oetiker Clamp
715900282
Unavailable
50f
Oetiker Clamp, Small
715900283
Unavailable
50g
Boot Kit, Differential Side
705401346
Unavailable
50h
Oetiker Clamp, Large
715900284
Unavailable
50j
Oetiker Clamp, Small
715900261
Unavailable
55
Sensor Support
705402088
Unavailable
56
Flat Washer 8 mm
234081410
Unavailable
57
Torx Truss M8 X 25
250000874
Unavailable
60
Ball Bearing
293350150
Unavailable
80
Circlip
293370019
Unavailable
100
Hex. Flange Screw M10 X 125
230602546
Unavailable
110
Hex. Flange Elastic Nut M10
233201436
Unavailable
115
Hex. Flange Screw M8 X 55
207685544
Unavailable
120
Hex. Flange Elastic Nut M8
233281414
Unavailable
130
Wheel Hub Ass'y
705501716
Unavailable
130
Wheel Hub | Built Dec 21 2020 And Up
705503050
Unavailable
135
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
135
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
150
Conical Spring Washer M18
250200171
Unavailable
160
Hex. Flange Castellated Nut M18
232291413
Unavailable
170
Cotter Pin
250400071
Unavailable
240
Flat Washer M12
250200102
Unavailable
250
Hex Flange Screw M12 X 16
250001039
Unavailable
310
Flat Washer M10 | 4X4
250200014
Unavailable
320
Hex Flange Screw M10 X 20 S.Grip
250001046
Unavailable
350a
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
380a
Machined Housing
705402360
Unavailable
380c
Actuator Ass'y
705402090
Unavailable
380d
Fork | 4X4
705400274
Unavailable
380e
Circlip | 4X4
293370042
Unavailable
380f
O-Ring
293300117
Unavailable
380g
Hex. Flange Screw M8 X 20, Scotch Grip | 4X4
250000137
Unavailable
380h
Idler Shaft Gear
705401509
Unavailable
380j
Pressure Screw M8 X 8 | 4X4
206580890
Unavailable
380k
Dowell Pin | 4X4
250400025
Unavailable
380m
Ball Bearing | 4X4
705400249
Unavailable
380n
Slider | 4X4
705402139
Unavailable
380r
Circlip | 4X4
293370029
Unavailable
380s
Circlip | 4X4
293370030
Unavailable
380t
Coupling Sleeve | 4X4
705400389
Unavailable
380u
Oil Seal
293250348
Unavailable
380v
Shifter Lever Plate | 4X4
705401553
Unavailable
380y
O-Ring
293300179
Unavailable
390
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
400
O-Ring
293300091
Unavailable
