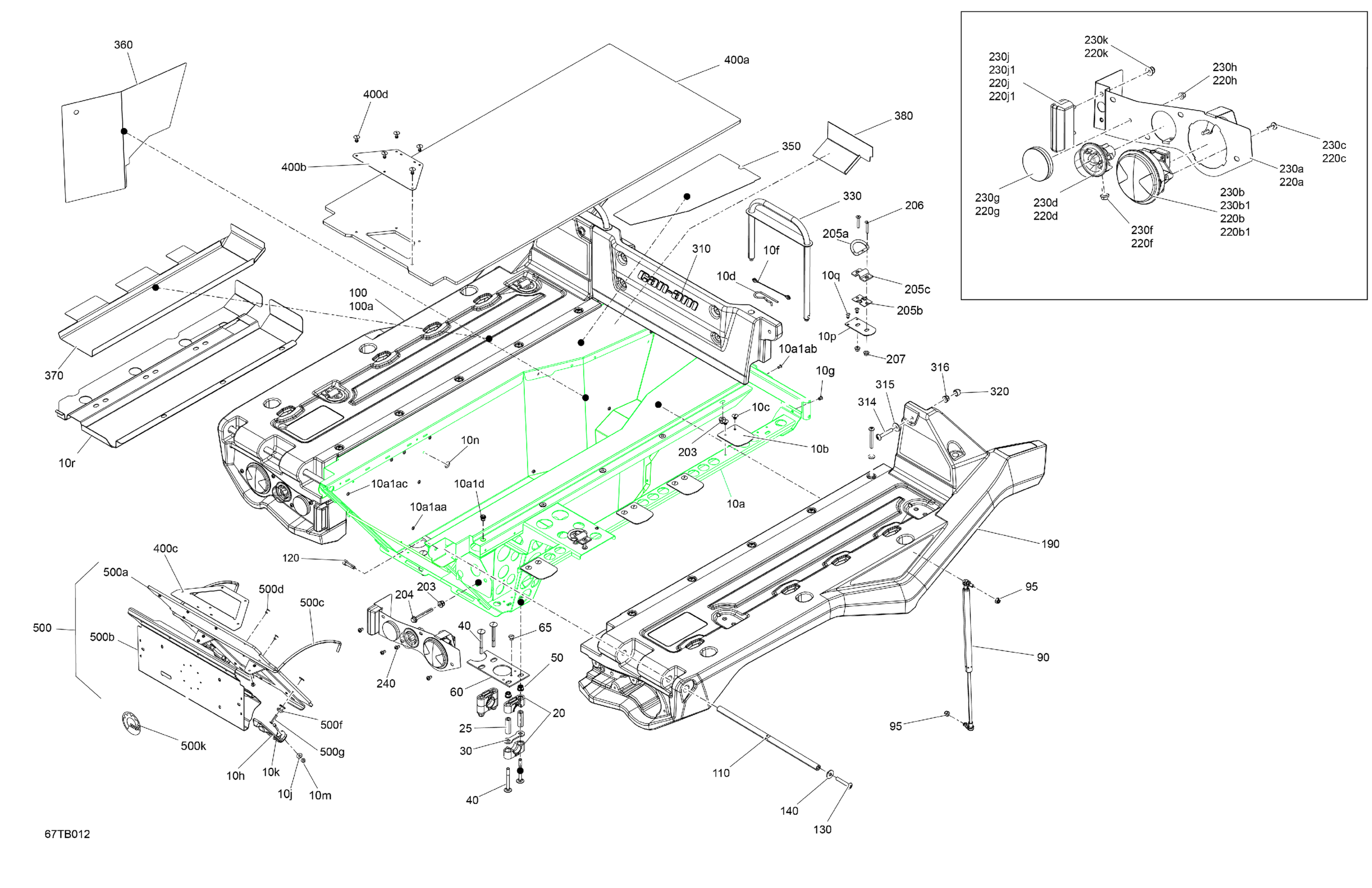

Can-Am 004 - Outlander T 6X6 - 1000 EFI - XT - T Regulation, 2022 07- Body - Cargo Platform Diagram

#

Description
Price

10a

Platform | Includes 10a to 10a1ac

708303452

Unavailable

10a1d

Clinch Nut Hexsert M8

605636002

Unavailable

10a1aa

Avex Rivet

390909200

Unavailable

10a1ab

Avex Rivet

390909100

Unavailable

10a1ac

Avex Rivet

390909200

Unavailable

10b

Linq Hole Filler

708301095

Unavailable

10c

Pop Rivet 3/16"

293150103

Unavailable

10d

Cotter Spring

505073670

Unavailable

10f

Retainer Cable

293750069

Unavailable

10g

Stavex Rivet

293150144

Unavailable

10h

Hood Latch

5342952

Unavailable

10j

Flat Washer

234052450

Unavailable

10k

Hex.Flange Screw M5 X 20

207652044

Unavailable

10m

Flange Elastic Nut M5

233251434

Unavailable

10n

Black, Dart

414644300

Unavailable

10p

Lashing Rings Support

705203824

Unavailable

10q

Avex Rivet

390909100

Unavailable

10r

Upper Heat Shield Wide

707601725

Unavailable

20

Housing Half

506150400

Unavailable

25

Housing Bushing

506150500

Unavailable

30

Stopper Plate

506150600

Unavailable

40

Carriage Bolt M8 X 70

207787044

Unavailable

50

Hex. Flange Elastic Nut M8

233281414

Unavailable

60

Cargo Box Hinges Reinforcement Plate

705203836

Unavailable

65

Pop Rivet 3/16"

293150103

Unavailable

90

Cargo Box Gas Shock

708301058

Unavailable

95

Hex. Elastic Stop Nut M8

232581414

Unavailable

100

LH Side Platform | Includes 100 to 100a

708302938

Unavailable

100a

Black, LH Side Platform | Model-Black

708303737

Unavailable

110

Hinge Axis

708300935

Unavailable

120

Socket Head Screw M8 X 30

205083044

Unavailable

130

Torx Truss Screw M8 X 50

250000761

Unavailable

140

Stainless Steel Flat Washer

234082670

Unavailable

190

Black, RH Side Platform | Model-Black

708303738

Unavailable

203

Hex. Flange Elastic Nut M8

233281414

Unavailable

204

Hex. Flange Screw, M8 X 65

207686544

Unavailable

205a

D-Ring

708302990

Unavailable

205b

Tie-Down Ring Spring

708302991

Unavailable

205c

Tie-Down Ring Bracket

708302992

Unavailable

206

Socket Screw M6 X 35

250001078

Unavailable

207

Hex. Flange Nut M6

233061414

Unavailable

220a

LH Tail Light Plate | Model-T3

605356527

Unavailable

220b

Tail Light Ass'y | Includes 32 to 33

710001645

Unavailable

220b1

Bulb

520000758

Unavailable

220c

Torx Screw K50 X 16

250000720

Unavailable

220d

Flasher | Europe

710002964

Unavailable

220f

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

220g

Red, Reflector

705016982

Unavailable

220h

Flange Elastic Nut M5

233251434

Unavailable

220j

License Light

710002055

Unavailable

220j1

Bulb

219800128

Unavailable

220k

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

230a

RH Tail Light Plate | Model-T3

605356528

Unavailable

230b

Tail Light Ass'y | Includes 32 to 33

710001645

Unavailable

230b1

Bulb

520000758

Unavailable

230c

Torx Screw K50 X 16

250000720

Unavailable

230d

Flasher | Europe

710002964

Unavailable

230f

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

230g

Red, Reflector

705016982

Unavailable

230h

Flange Elastic Nut M5

233251434

Unavailable

230j

License Light

710002055

Unavailable

230j1

Bulb

219800128

Unavailable

230k

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

240

Torx Truss Screw M6 X 12

250000767

Unavailable

310

Black, Front Panel Short

708303739

Unavailable

314

Torx Truss Screw M8 X 50

250000761

Unavailable

315

Stainless Steel Flat Washer

234082670

Unavailable

316

Hex. Flange Elastic Nut M8

233281414

Unavailable

320

Cover | Model-T3

28056

Unavailable

330

Locking Handle Weld

708300939

Unavailable

350

Bed Heat Shield On Top

708301336

Unavailable

360

Bed Heat Shield On Side

708301337

Unavailable

370

Side Heat Shield

708301338

Unavailable

380

Heat Shield

708302168

Unavailable

400a

Middle Deck

708300959

Unavailable

400b

Filler Plate

708301262

Unavailable

400c

Handle Plate

708301263

Unavailable

400d

Pop Rivet 3/16”

293150108

Unavailable

500

Lower Tailgate Ass'y | Includes 500 to 500k

708303328

Unavailable

500a

Lower Tailgate Inner

708303364

Unavailable

500b

Register Plate Support

708303416

Unavailable

500c

Limiter Rail

708301213

Unavailable

500d

Avex Rivet

390909100

Unavailable

500f

Counter Roller

605449087

Unavailable

500g

Rivet

293150212

Unavailable

500k

BRP Logo 68 mm

219902672

Unavailable
