07- Body - Front Section

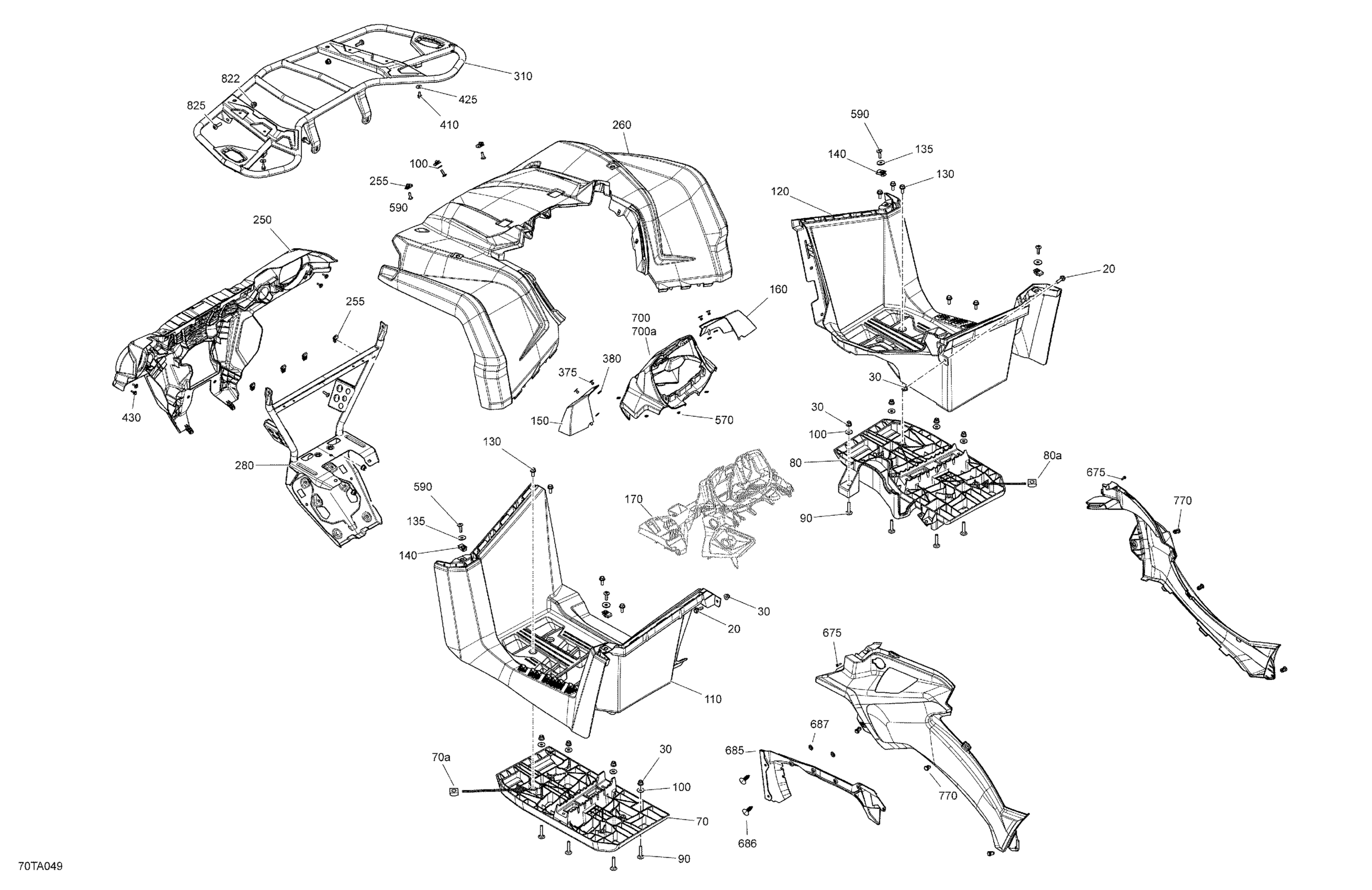

Can-Am 004 - Outlander 570 EFI - XU - International, 2021 07- Body - Front Section Diagram
#
20
Hex. Flange Screw M6 X 20
207662054
Unavailable
30
Flange Elastic Nut M6
233261434
Unavailable
70
LH Structural Footboard
705011540
Unavailable
70a
Square Nut M6
232862412
Unavailable
80
RH Structural Footboard
705011542
Unavailable
80a
Square Nut M6
232862412
Unavailable
90
Carriage Bolt M6 X 35
207763554
Unavailable
100
Flat Washer 6 mm
234062410
Unavailable
110
LH Step
705007040
Unavailable
120
RH Step
705007039
Unavailable
130
Hex. Flange Screw M6 X 20
207662054
Unavailable
135
Flat Washer
224061201
Unavailable
140
Panel Nut M6 X 1.0
250100198
Unavailable
150
LH Air Deflector
705006134
Unavailable
160
RH Air Deflector
705006135
Unavailable
170
Console Support Ass'y | Model-Europe/International
715006101
Unavailable
250
Front Facia | Model-North America, International
705009334
Unavailable
255
Panel Nut M6 X 1.0
250100198
Unavailable
260
Tundra Green, Front Fender Ass'y | Model Tundra Green
715007936
Unavailable
280
Front Frame
705017337
Unavailable
310
Black, Front Luggage Rack
705006887
Unavailable
375
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
380
Washer
517124300
Unavailable
410
Hex. Flange Screw M6 X 12
210261250
Unavailable
425
Stainless Steel Flat Washer
234062670
Unavailable
430
Screw M4 X 16
250000725
Unavailable
570
Push Nut
732610072
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
675
Phillips Screw K40 X 16
250000723
Unavailable
685
Deflector Body Panel
705014061
Unavailable
686
Push Nut
732610072
Unavailable
687
Black, Dart
293730006
Unavailable
700
Gage Support | Package PRO - XMR
705010139
Unavailable
700a
Gage Support
705007066
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
822
Elastic Flange Nut M8
233281464
Unavailable
825
Pan Torx Screw M8 X 25
250000898
Unavailable
