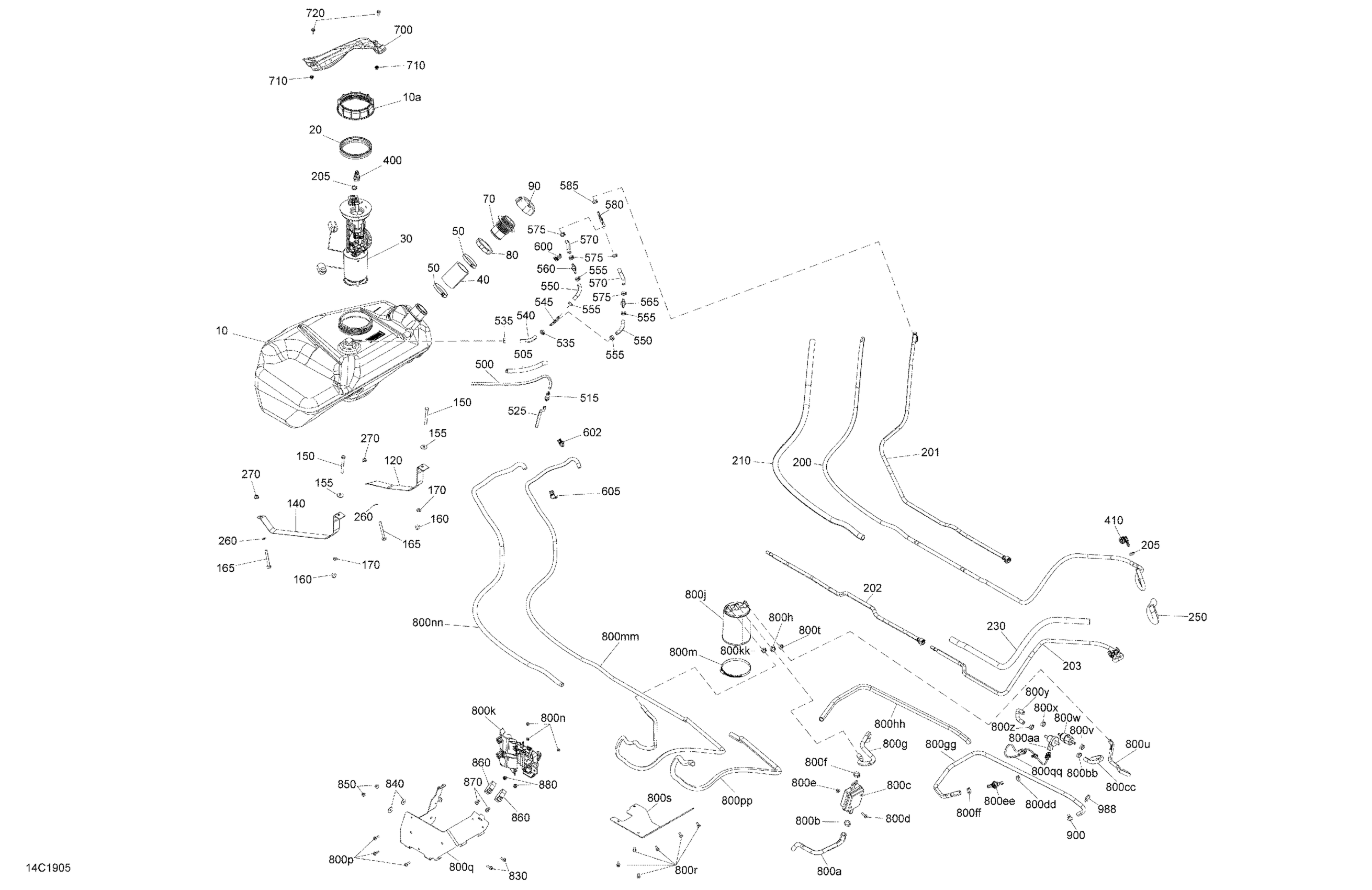

Can-Am 003 - Maverick Turbo R - North America, 2019 02- Fuel - EVAP Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$309.99

10a

Special Nut M130

250100062

$21.99

20

Gasket

293250173

$18.49

30

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30

Fuel Pump | Includes 30 to 30b

709001057

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

40

Filler Neck

709000748

$31.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Filler Neck Nut, Fuel

211100012

$14.22

90

Fuel Cap

709000868

$32.99

120

Fuel Tank Strap

709000910

$41.49

140

Fuel Tank Strap

709000911

$41.49

150

Hex. Screw, M8 X 75

207187544

$0.92

155

Flat Washer 8 mm

234082410

$1.47

160

Hex. Flange Elastic Nut M8

233281414

$1.47

165

Hex. Flange Screw, M8 X 65

207686544

$13.16

170

Flat Washer 8 mm

234081410

$0.83

201

Formed Hose

709000987

$39.49

203

Formed Hose

709001059

$45.49

260

Flat Washer 8 mm

234081410

$0.83

270

Hex. Flange Elastic Nut M8

233281414

$1.47

535

Oetiker Clamp

293650042

$3.09

540

Hose 6.35Mm 5000Mm Long

219704611

$194.99

545

Y-Fitting

293710059

$9.69

550

Hose 6.35Mm 5000Mm Long

219704611

$194.99

555

Oetiker Clamp

293650042

$3.09

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

570

Hose 6.35Mm 5000Mm Long

219704611

$194.99

575

Oetiker Clamp

293650042

$3.09

580

Y-Fitting

293710059

$9.69

585

Oetiker Clamp

293650042

$3.09

700

Connector Protector

707900594

$22.49

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

800a

Formed Hose

709000869

$17.49

800b

Oetiker Clamp

293650186

$3.99

800c

Air Filter

709000524

$45.99

800d

Hex. Flange Screw M6 X 20

207662054

$1.01

800e

Hex. Flange Elastic Nut M6

233261494

$1.58

800f

Oetiker Clamp

293650186

$3.99

800g

Formed Hose

709000870

$18.49

800h

Crimp Clamp

293650053

$3.09

800j

Vapor Canister | EVAP Models

709000806

$93.99

800k

Canister Support | EVAP Models

709000851

$5.29

800m

Tridon Clamp

293650054

$9.49

800n

Hex. Elastic Stop Nut M6

232561600

$1.15

800p

Torx Screw M6 X 20

250000712

$2.11

800q

Primary Support

709000955

$104.99

800r

Hex. Flange Screw M6 X 12

210261250

$1.90

800s

Secondary Support

709000956

$20.99

800t

Oetiker Clamp

293650042

$3.09

800u

Formed Hose

709000853

$17.49

800v

Oetiker Clamp

293650046

$2.89

800w

Fuel Filter

513034047

$21.99

800x

Crimp Clamp, 15.3-706R

293650047

$3.29

800y

Formed Hose

709000857

$17.49

800z

Crimp Clamp, 15.3-706R

293650047

$3.29

800aa

Bleed Valve

709000443

$73.99

800bb

Crimp Clamp, 15.3-706R

293650047

$3.29

800cc

Formed Hose

709000873

$18.49

800dd

Crimp Clamp

293650053

$3.09

800ee

Check Valve

275500941

$25.99

800ff

Crimp Clamp

293650053

$3.09

800gg

Hose 3000Mm Long

219704612

$84.99

800hh

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800kk

Oetiker Clamp

293650046

$2.89

800mm

Hose 6.35Mm 5000Mm Long

219704611

$194.99

800nn

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800pp

Tubing 16 Mm 1000Mm Long

219704408

$7.49

800qq

Purge Valve Cable

710005718

$20.99

830

Hex. Flange Screw M6 X 20

207662054

$1.01

840

Flat Washer M6.6 X 22

250200162

$2.32

850

Hex. Flange Elastic Nut M6

233261494

$1.58

860

Open Clamp

293850132

$14.99

870

Hex. Flange Screw M6 X 20

207662054

$1.01

880

Hex. Flange Elastic Nut M6

233261494

$1.58

900

Norma Spring Clamp

293650214

$15.89
