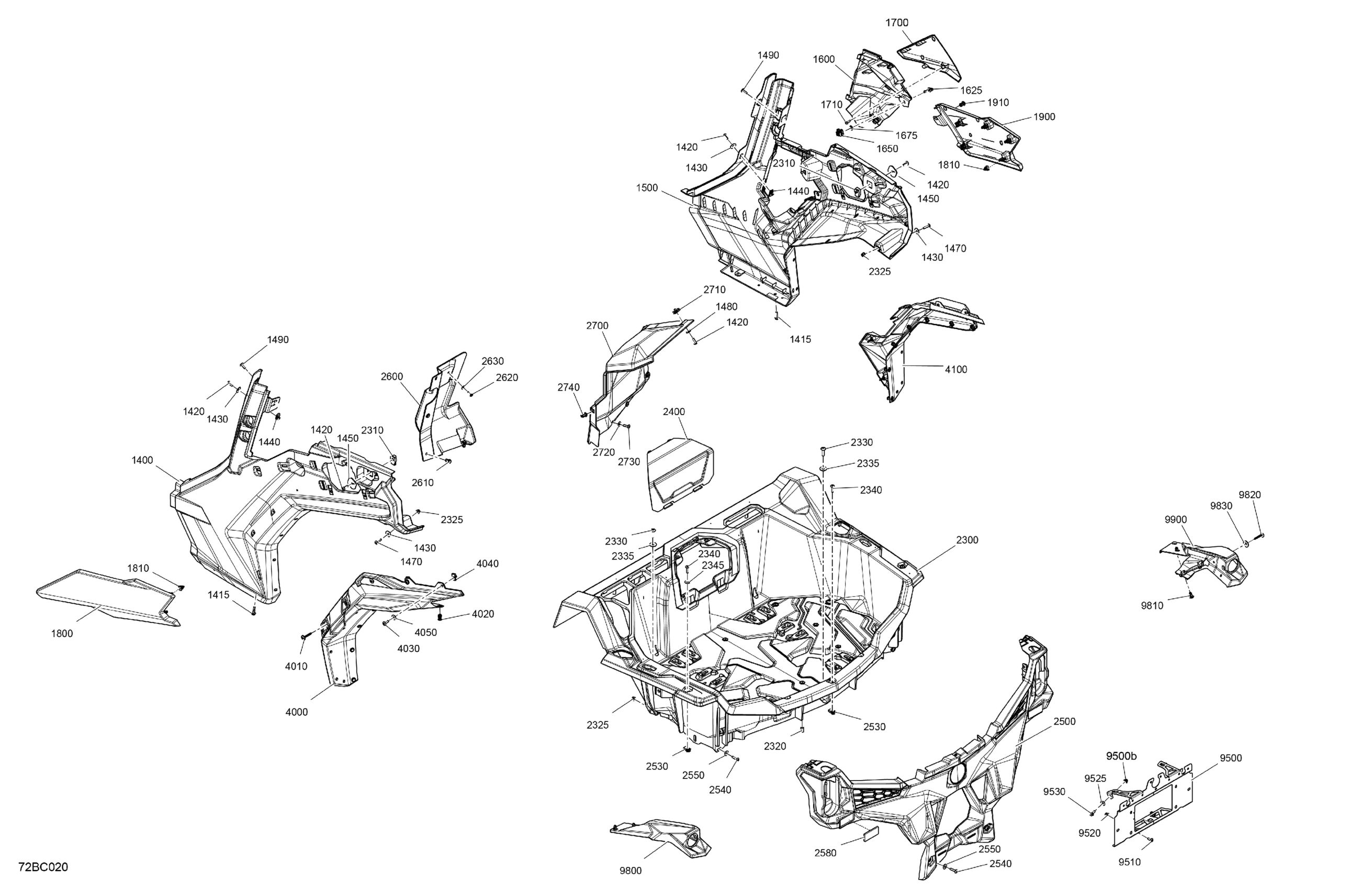

Can-Am 003 - Maverick Trail 1000 - DPS - T Regulation, 2023 07- Body - Rear Section Diagram

LH Rear Panel

705011335

$204.99

Hex. Flange Screw M6 X 25

207662554

$1.48

Torx Screw M6 X 20

250000722

$1.68

Flat Washer M6.6 X 22

250200162

$2.32

Panel Nut M6 X 1.0

250100198

$2.11

Support Plate

705003841

$0.99

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Black, Dart

414644300

$0.98

RH Rear Panel

705011336

$204.99

Air Filter Acces Door

705011338

$75.99

Quarter Turn

708400278

$4.29

Clip

708400285

$3.99

Washer

708400286

$3.99

Timeless Black, Acces Panel Trim

705015587

$109.99

Torx Screw K50 X 16

250000720

$1.69

Timeless Black, LH Open Carrier Trim

705015592

$184.99

Clip

517306478

$1.09

Timeless Black, RH Open Carrier Trim

705015597

$184.99

Tuflok Plastic Rivet

293150230

$1.47

Rear Box

705016885

$399.99

Panel Nut M6 X 1.0

250100224

$2.11

Hex. Coupling Nut M6

250100207

$2.00

Hex. Elastic Flange Nut M6

233161464

$1.01

Hex Torx Truss M8 X30

250000745

$3.17

Stainless Steel Flat Washer

234082670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Acces Cover Ass'y

715006798

$38.99

Rear Fascia

705016944

$159.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Red Reflector

520001820

$20.99

LH Rear Wheel Arch Protector

705015886

$45.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Washer M5

250200025

$0.74

RH Rear Wheel Arch Protector

705016135

$45.49

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20

250000722

$1.68

Tuflok Plastic Rivet

293150230

$1.47

LH Rear Mud Guard

705016942

$56.99

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

RH Rear Mud Guard

705019031

$56.99

Licence Plate Support Ass'y

705015727

$114.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Torx Truss Screw M6 X 16

250000721

$1.69

Hex. Flange Elastic Nut M6

233261466

$2.00

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 16

207661654

$2.11

LH Rear Flasher Support Model T

705012799

$58.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Stainless Steel Flat Washer

234082670

$2.11

RH Rear Flasher Support Model T

705012800

$30.49
