Description

Price

12

Norma Spring Clamp

293650214

$15.89

20

Screw PT Type K-50 X 16

250000959

$2.11

80

Accelerator Pedal

707001166

$274.99

90

Bushing

707000848

$1.35

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut

233081436

$2.00

105

Vibration Damper

707001169

$42.99

108

Vibration Damper | Includes 108 to 108d

707003061

$144.99

108a

Pop Rivet 3/16"

390402200

$0.35

109

Hex. Flange Screw M10 X 135

230603546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

111

Hex. Flange Screw M6 X 20

207662044

$2.00

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

115

Rubber Mount

707002590

$58.49

116

Hex. Flange Screw M6 X 20

207662044

$2.00

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

118

O-Ring

293300215

$0.90

119

Hex. Flange Screw, M8 X 65

207686544

$13.16

122

Flat Washer M8

250200158

$2.11

123

Flat Washer M8

250200180

$2.29

125

Hex. Flange Nut

233081436

$2.00

130

Rear Link Bracket

707002290

$30.99

140

Engine Bracket

707002449

$15.49

145

RH Rear Engine Support

707003340

$18.99

146

Hex Flange Screw M8 X 20

207582046

$1.48

148

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

200

Front CVT Cooling Duct

706600183

$43.99

203

Norma Gear Clamp

514052983

$15.89

205

Flexible Adapter

706600249

$19.49

210

Norma Clamp

293650091

$11.12

220

Soft Fitting

706600190

$45.99

224

Rear CVT Cooling Duct

706600184

$64.99

225

Soft Fitting

706600190

$45.99

226

Adapter

706600331

$37.99

227

Norma Clamp

293650091

$11.12

228

Norma Clamp

293650091

$11.12

229

Norma Clamp

514052924

$14.22

230

Norma Clamp

293650091

$11.12

231

Tuflok Plastic Rivet

293150230

$1.47

240

CVT Filter

706600417

$44.99

241

Gasket

706600191

$41.99

243

Gasket

706600231

$12.16

245

Hex. Screw Pt K60 X 25

250000980

$2.11

250

Tuflok Plastic Rivet

293150230

$1.47

265

CVT Cooling Duct Out

706600192

$33.99

275

Norma Gear Clamp

514052983

$15.89

280

Norma Clamp

293650091

$11.12

310

CVT Airbox

706600196

$46.99

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

340

Baffle

706600286

$26.49

345

Self Adhesive Protective Foam

706600287

$2.69

350

Torx Screw K50 X 16

250000720

$1.69

360

Support

706600237

$6.49

370

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

470

Shifting Cable

707002000

$68.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

500

LH Bracket

707002099

$24.99

501

RH Bracket

707002100

$24.99

502

Pop Rivet 3/16"

293150103

$0.55

503

Hex. Elastic Flange Nut M8

233281416

$1.48

505

Cable Support

707002098

$16.87

506

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

510

Lower Lever Arm

707002093

$18.49

513

Bushing

707001376

$5.24

514

Flat Washer 6 mm

234062410

$0.77

515

Hex. Flange Screw M6 X 50

207665044

$4.12

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

520

Upper Lever Arm

707000711

$39.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

650

Hose

219704549

$50.99

650a

Hose

219704549

$50.99

660

Oetiker Clamp

293650042

$3.09

700

Hose Support

707002116

$13.49

1410

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1415

Insulator Pad

710000073

$11.12

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11

1430

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1500

Lever Indicator

707900603

$26.99

1505

Torx Head Screw M6 X 16

250000717

$2.11

1510

Insert Half Hex Body M6 x 1.0

250100199

$3.19

1520

Panel Nut M6 X 1.0

250100198

$2.11

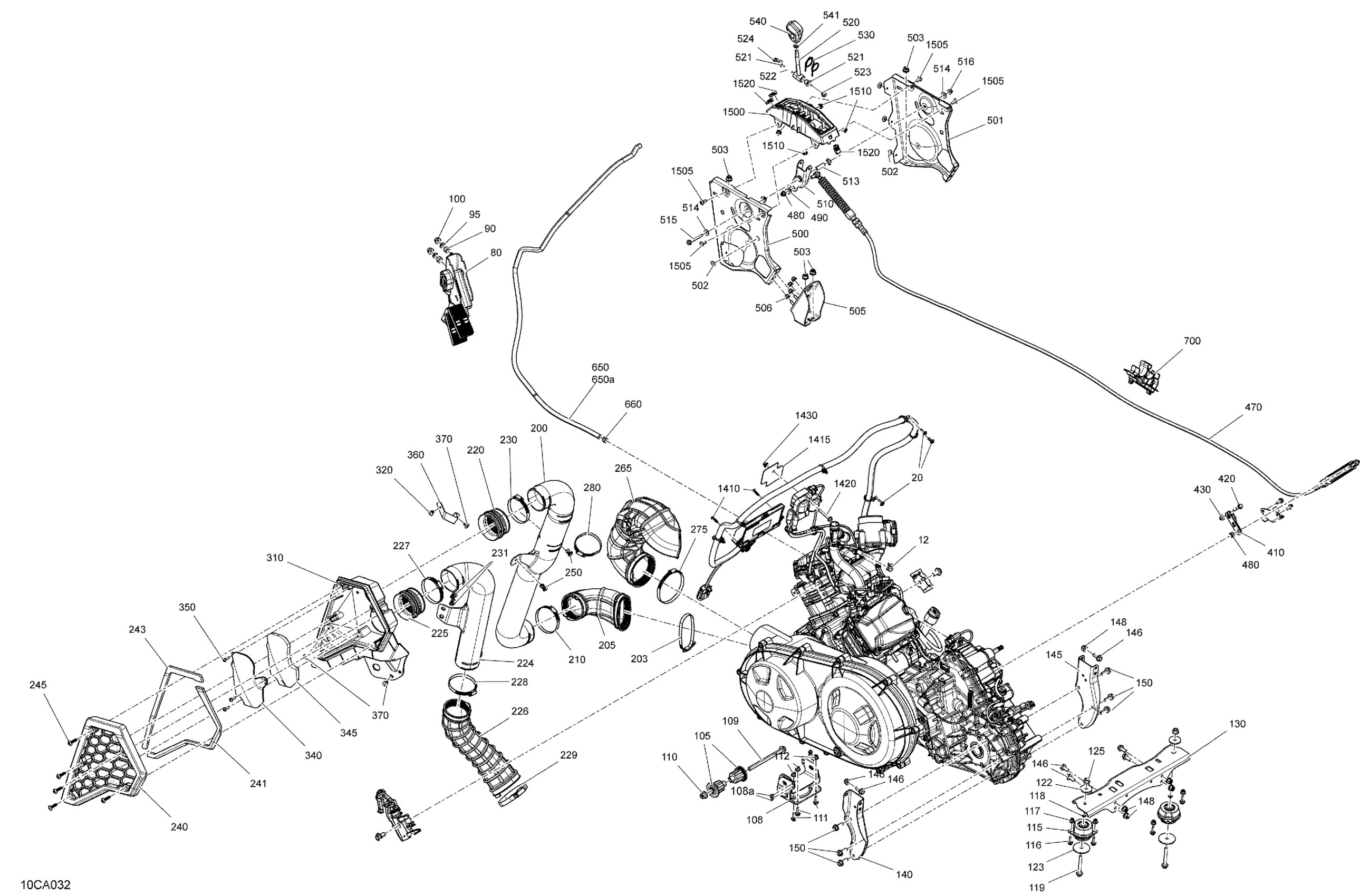

Can-Am 003 - Maverick Sport 1000R - XRC - International, 2021 02- Engine - System Diagram
