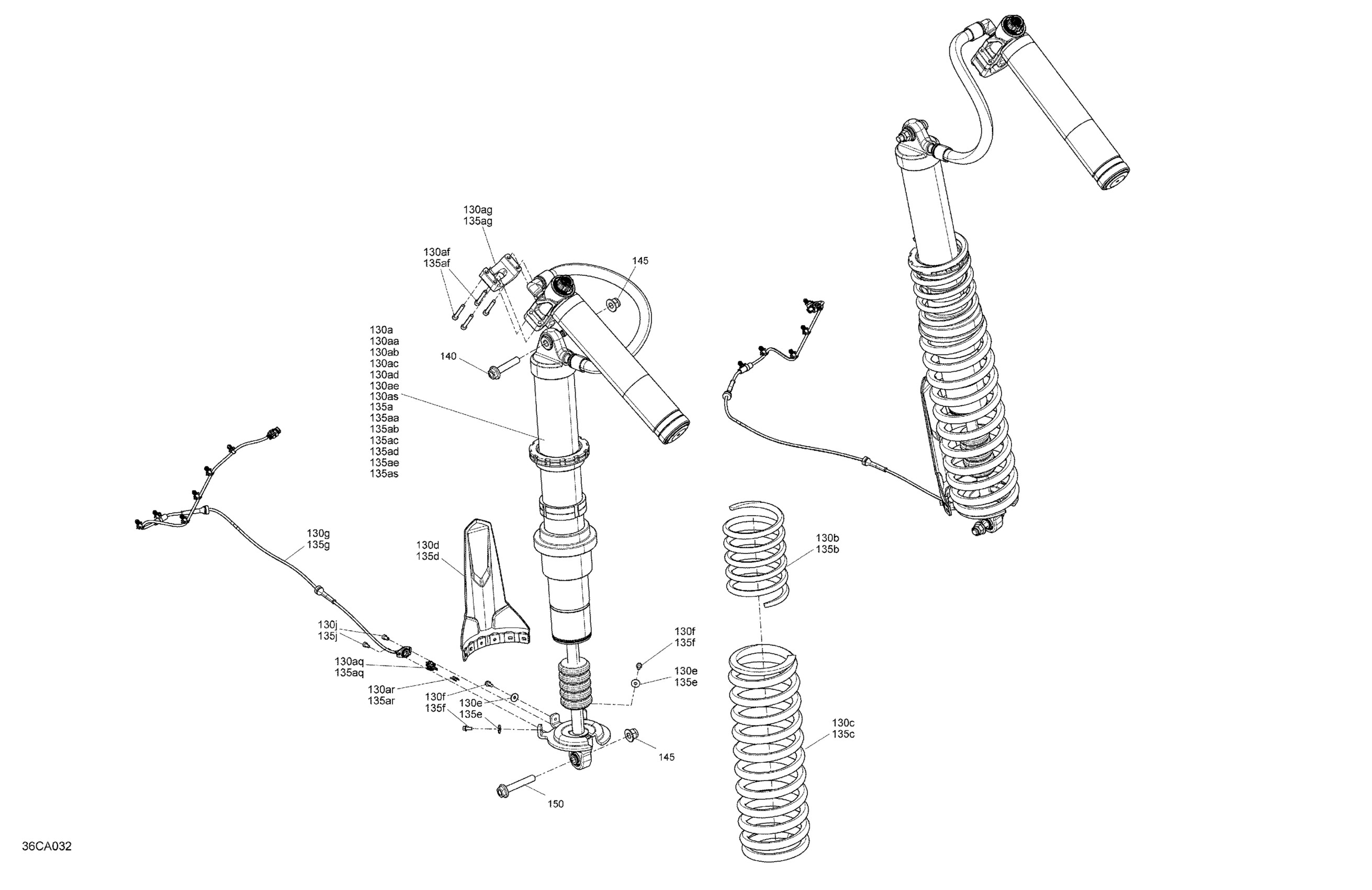

Can-Am 003 - Maverick MAX Turbo RR - XRS - CE, 2021 05- Suspension - Rear Shocks Diagram

#

Description
Price

130a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706002257

$1,529.99

130aa

Spherical Bearing

715900337

$84.99

130ab

Ball Joint

706004078

$47.49

130ac

O-Ring Bushing

715900338

$12.63

130ad

Circlip

715900480

$11.49

130ae

Reducer

715900481

$27.99

130af

Screw M6 X 35

715900521

$5.29

130ag

Réservoir Clamp

715900522

$38.99

130aq

Connector Support

706203583

$13.49

130ar

Female Terminal | Models with Smart-ShoX

710006415

Unavailable

130as

Anchorage

706204583

$15.49

130b

Deep Black, Compression Spring | Model Macchiato Satin with Smart-ShoX

706003792

$121.49

130c

Rear Spring | XRSDPS Package, Liquid Gold

706002674

$153.49

130d

Protector

706202215

$11.99

130e

Washer M5

250200025

$0.74

130f

Hex Flange Screw M5 X 11

210251150

$2.11

130g

Rear Suspension Wiring Harness Ass'y

710006389

$229.99

130j

Socket Head Screw M5 X 10

205551060

$1.58

135a

Rear Adjustable Shock Absorber | Includes 130a to 130a8

706002257

$1,529.99

135aa

Spherical Bearing

715900337

$84.99

135ab

Ball Joint

706004078

$47.49

135ac

O-Ring Bushing

715900338

$12.63

135ad

Circlip

715900480

$11.49

135ae

Reducer

715900481

$27.99

135af

Screw M6 X 35

715900521

$5.29

135ag

Réservoir Clamp

715900522

$38.99

135aq

Connector Support

706203583

$13.49

135ar

Female Terminal | Models with Smart-ShoX

710006415

Unavailable

135as

Anchorage

706204583

$15.49

135b

Deep Black, Compression Spring | Model Macchiato Satin with Smart-ShoX

706003792

$121.49

135c

Rear Spring | XRSDPS Package, Liquid Gold

706002674

$153.49

135d

Protector

706202215

$11.99

135e

Washer M5

250200025

$0.74

135f

Hex Flange Screw M5 X 11

210251150

$2.11

135g

Rear Suspension Wiring Harness Ass'y

710006389

$229.99

135j

Socket Head Screw M5 X 10

205551060

$1.58

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

233221466

$2.89

150

Hex. Flange Screw M12 X 70

250000858

$3.80
