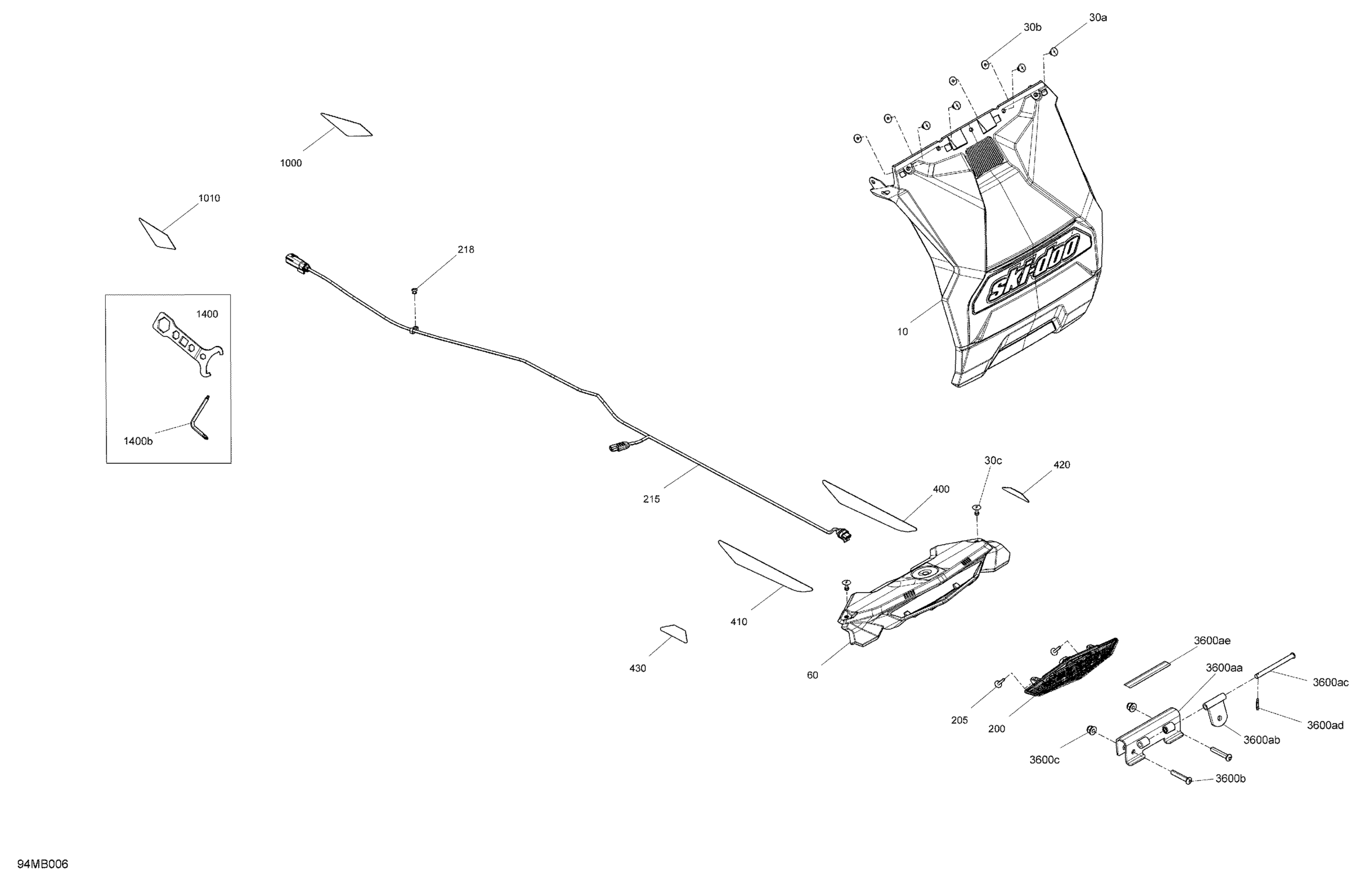

Ski-Doo 003 - EXPEDITION SPORT 900 ACE - North America, 2022 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$137.49

Light Fairing

520001487

$20.99

200

Rear Light

520001143

$99.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

215

Rear Light Harness

515178822

$55.99

218

Pop Rivet 3/16"

390402200

$0.35

400

Red, RH Rear Reflector

520001900

$19.99

410

Red, LH Rear Reflector

520001901

$19.99

420

Red, RH Rear Reflector

520001842

$4.99

430

Red, LH Rear Reflector

520001860

$4.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3600aa

Support

511000768

$31.99

3600ab

Hitch Plate Welded

511000521

$16.33

3600ac

Lock Pin

511001451

$9.49

3600ad

Cotter Pin

371800200

$0.53

3600ae

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

3600c

Elastic Flange Nut M8

233281466

$1.01

30a

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30b

Washer

517124300

$0.19

30c

Pop Rivet 3/16"

293150100

$1.09
