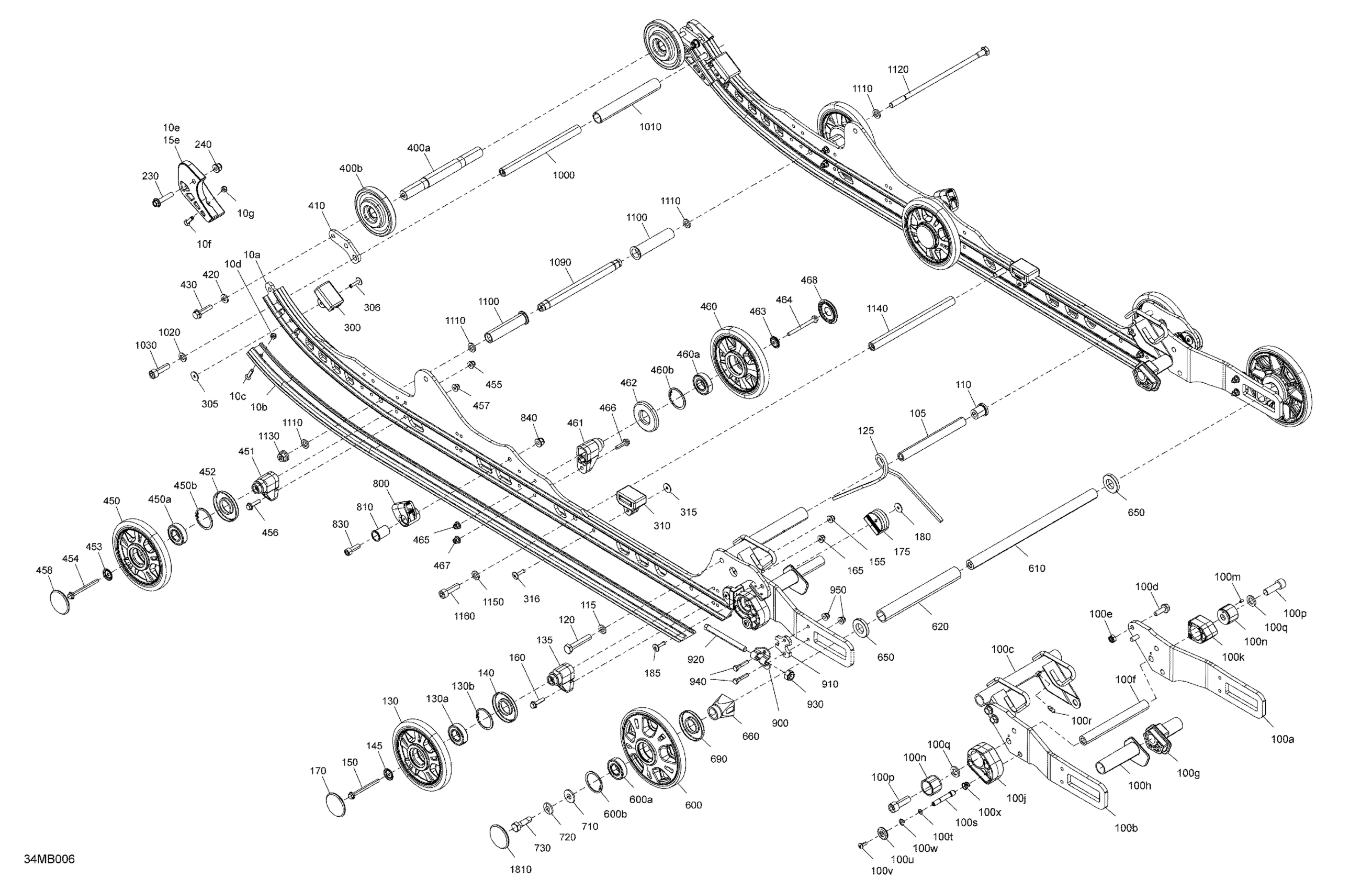

Ski-Doo 003 - EXPEDITION SPORT 900 ACE - North America, 2022 05- Suspension - Rear - Lower Section Diagram

#

Description
Price

10a

Rail Suspension 154

503195575

$244.99

10b

Black Slider, 154"

503192618

$34.99

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561434

$1.99

10e

LH Protector

503192609

$27.49

10f

Phillips Screw M6 X 25

208562531

$2.11

10g

Elastic Stop Nut M6

232561434

$1.99

15e

RH Protector

503192610

$27.49

100a

Black, RH Pivot Support Long

503195759

$88.99

100b

Black, LH Pivot Support Long

503195760

$88.99

100c

Runner Pivot | Includes 100c to 100c3

503192647

$56.99

100d

Hex. Flange Screw M8 X 25

207682544

$1.35

100e

Hex. Elastic Stop Nut M8

232581414

$0.56

100f

Cam Axle

503191608

$17.49

100g

RH Spring Cam

503191190

$15.29

100h

LH Spring Cam

503191668

$12.58

100j

LH Block

503192426

$16.49

100k

RH Block

503192427

$16.49

100m

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

100n

Block Guide

503189488

$39.99

100p

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

100q

Washer | 7415/7416. 7417/7418.

503189148

$2.85

100r

Grease Fitting

408200700

$3.49

100s

Rode

503192437

$6.19

100t

Flat Washer M5

234051410

$0.53

100u

Handle

503192438

$4.99

100v

Torx Screw M5 X 14

250000742

$1.47

100w

Circlip

293370068

$0.98

100x

Compression Spring

503192436

$38.99

105

Lower Shaft

503191279

$28.99

110

Bushing

503189324

$14.15

115

Washer

503192496

$0.77

120

Hex. Screw S.Grip M10 X 55

250000605

$8.11

125

Spring

503194624

$30.49

130

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

130a

Ball Bearing | Package-STD

503190396

$14.30

130b

Retaining Ring

415129371

$12.01

135

Casted Support

503193894

$16.49

140

Labyrinth Seal

503190434

$6.09

145

Wheel Cup M6

503191820

$4.99

150

Hex. Flange Screw M6 X 70

250000944

$4.44

155

Hex. Flange Elastic Nut M6

233261466

$2.00

160

Hex. Flange Screw M6 X 25

250000945

$4.44

165

Hex. Flange Elastic Nut M6

233261466

$2.00

170

Black, Wheel Cap

503192771

$2.39

175

Rubber Stopper

503191291

$19.99

180

Washer

503191273

$1.35

185

Pop Rivet 3/16

293150224

$1.01

230

Hex. Flange Screw M8 X 40

207684044

$1.48

240

Elastic Flange Nut M8

233281466

$1.01

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper

503193504

$14.99

315

Washer

503191273

$1.35

316

Pop Rivet 3/16

293150224

$1.01

400a

Front Wheel Axle

503192644

$154.99

400b

Black, Wheel Ass'y, 100 mm

503192611

$33.99

410

Plate

503192612

$14.49

420

Washer

503192494

$3.17

430

Hex. Flange Screw M8 X 35

250000986

$2.11

450

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

450a

Ball Bearing | Package-STD

503190396

$14.30

450b

Retaining Ring

415129371

$12.01

451

Casted Support

503193894

$16.49

452

Labyrinth Seal

503190434

$6.09

453

Wheel Cup M6

503191820

$4.99

454

Hex. Flange Screw M6 X 70

250000944

$4.44

455

Hex. Flange Elastic Nut M6

233261466

$2.00

456

Hex. Flange Screw M6 X 25

250000945

$4.44

457

Hex. Flange Elastic Nut M6

233261466

$2.00

458

Black, Wheel Cap

503192771

$2.39

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

460a

Ball Bearing | Package-STD

503190396

$14.30

460b

Retaining Ring

415129371

$12.01

461

Casted Support

503193894

$16.49

462

Labyrinth Seal

503190434

$6.09

463

Wheel Cup M6

503191820

$4.99

464

Hex. Flange Screw M6 X 70

250000944

$4.44

465

Hex. Flange Elastic Nut M6

233261466

$2.00

466

Hex. Flange Screw M6 X 25

250000945

$4.44

467

Hex. Flange Elastic Nut M6

233261466

$2.00

468

Black, Wheel Cap

503192771

$2.39

600

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

600a

Ball Bearing | Package-STD

503190396

$14.30

600b

Retaining Ring

415129371

$12.01

610

Rear Axle

503190429

$59.99

620

Rear Spacer, Long

503191736

$18.49

650

Washer

503190432

$14.22

660

Rear Wheel Spacer

503190428

$8.14

690

Labyrinth Seal

503190434

$6.09

710

Washer

503191910

$2.32

720

Conical Spring Washer 10 mm

234201474

$1.69

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

800

Spring Support Kit

861805547

$10.49

810

Bushing

503196055

$12.65

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503192583

$8.29

910

Spacer

503193250

$16.49

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Cap Screw M6 X 30

207063054

$6.39

950

Hex. Flange Elastic Nut M6

233261466

$2.00

1000

Axle Strap

503192613

$36.99

1010

Spacer

503196943

$10.99

1020

Washer

503192496

$0.77

1030

Socket Head Screw M10 X 35

205503554

$7.51

1090

Pivot Axle

503193435

$39.99

1100

Spacer

503195825

$1.69

1110

Washer

503192496

$0.77

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1810

Black, Wheel Cap

503192771

$2.39
