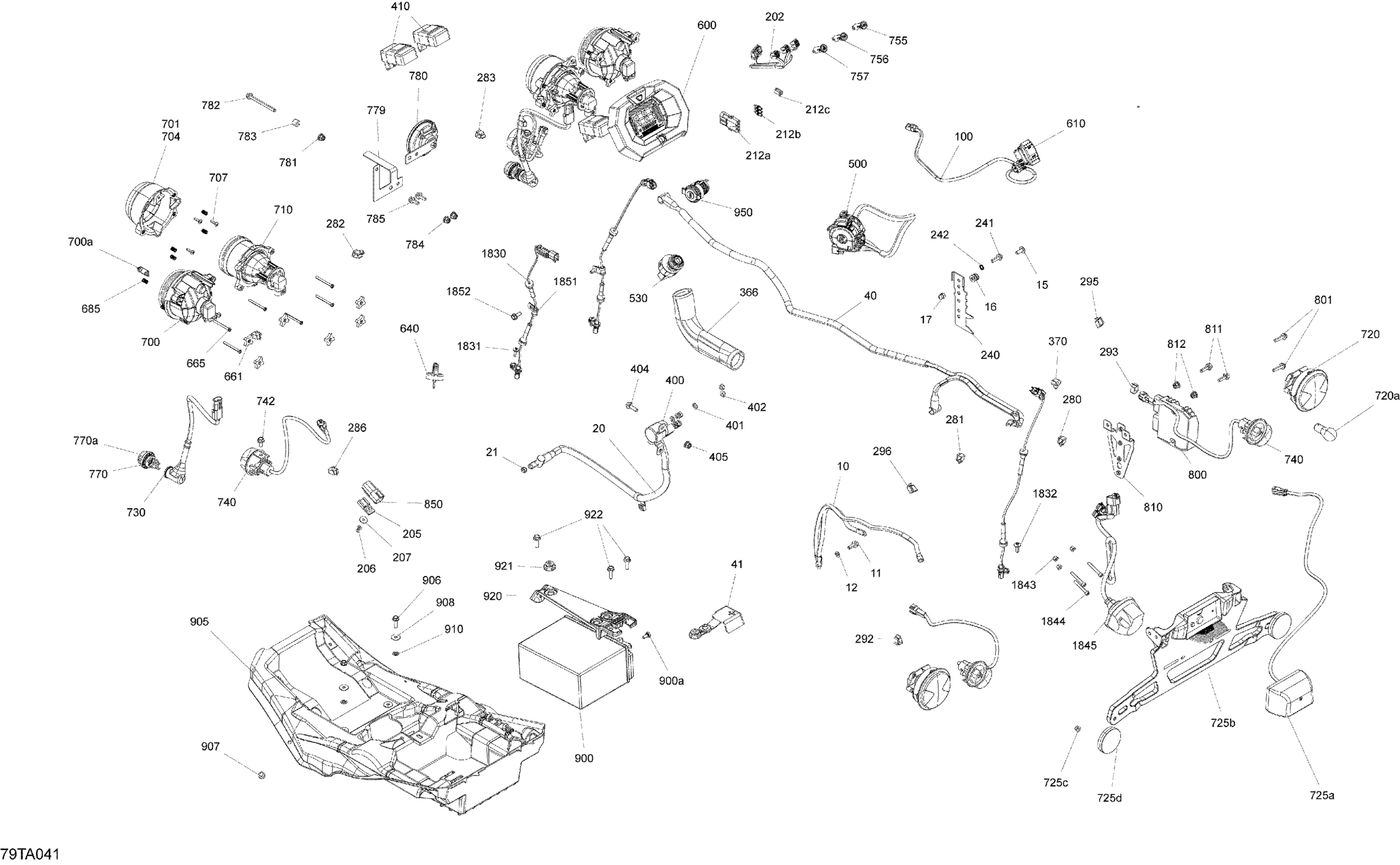

Can-Am 002 - Outlander T 1000 EFI - DPS_XXC - T Regulation, 2021 08- Electric - System Diagram
#
10
Ground Cable
710004382
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
15
Torx Head Screw M6 X 16
250000717
Unavailable
16
Flat Washer
224061121
Unavailable
17
Domed Nut M6
232361493
Unavailable
20
Positive Cable
710004377
Unavailable
21
Elastic Stop Nut M6
232561434
Unavailable
40
Positive Cable
710004376
Unavailable
41
Battery Cable Cap
710006729
Unavailable
100
Gauge Wiring Harness
710007503
Unavailable
202
Indicator Light Cable
710005840
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
240
Connector Bracket
710004118
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
280
Clip
414227300
Unavailable
281
Clip
414227300
Unavailable
282
Clip
414227300
Unavailable
283
Clip
414227300
Unavailable
286
Clip
414227300
Unavailable
292
Clip
414227300
Unavailable
293
Clip
414227300
Unavailable
295
Clip
414227300
Unavailable
296
Clip
414227300
Unavailable
366
Soft Protection Sleeve
710007255
Unavailable
370
Mount Dart
293730040
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561434
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
410
Flasher Unit
710003239
Unavailable
500
LH Multi Fonction Control
710006211
Unavailable
530
Ignition Switch
710008400
Unavailable
600
Multifunction Compact Gauge
710007407
Unavailable
600
Multifunction Gauge MID | Model XTP
710007409
Unavailable
610
Switch Mode | XTP
710006717
Unavailable
640
Black, Electronic Key
710000817
Unavailable
661
Handle
572106600
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
685
Spring
517168600
Unavailable
700
Low Beam | Includes 54 to 55
710006177
Unavailable
700a
Bulb 12V 55W
715900141
Unavailable
701
RH High Front Housing
710002291
Unavailable
704
LH High Front Housing
710002292
Unavailable
705
Torx Screw K50 X 16
250000720
Unavailable
707
Phillips Screw K40 X 16
250000723
Unavailable
710
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
710a
Halogen Bulb
415129249
Unavailable
720
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
720a
Bulb
520000758
Unavailable
725a
License Plate Light | Europe
710005563
Unavailable
725b
Plate Support | Europe
708300434
Unavailable
725c
Flange Elastic Nut M5
233251434
Unavailable
725d
Red Reflector
705011221
Unavailable
730
Position Light Harness
710005676
Unavailable
740
Flasher | Europe
710002964
Unavailable
742
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
755
Pilot Light Trailer Flasher
710005766
Unavailable
756
Pilot Light Tail Lamp
710005767
Unavailable
757
Pilot Lamp | Model-Europe
710003909
Unavailable
770
Day Light | Europe
710001726
Unavailable
770a
Cap Protector | Model-Europe
710003269
Unavailable
779
Horn Support
710006113
Unavailable
780
Horn
710004791
Unavailable
781
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
782
Hex. Flange Screw M6 X 70
207667044
Unavailable
783
Bushing
708001129
Unavailable
784
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
785
Hex. Flange Screw M6 X 16
207661644
Unavailable
800
Voltage Regulator
710005842
Unavailable
801
Hex. Flange Forming Screw M6 X 25
210262550
Unavailable
810
Rectifier Support
710001752
Unavailable
811
Hex. Flange Screw M6 X 20
207662044
Unavailable
812
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
850
Housing
710003006
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
910
Push Nut
732610072
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
950
DC Outlet
710001248
Unavailable
1830
Speed Sensor
710006981
Unavailable
1831
Torx Screw K50 X 16
250000720
Unavailable
1832
Clamp
293650256
Unavailable
1843
Flange Elastic Nut M5
233251434
Unavailable
1844
Socket Head Screw M5 X 35
205053588
Unavailable
1845
Trailer Harness
710005846
Unavailable
1851
Clamp
293650256
Unavailable
1852
Hex. Flange Screw M6 X 16
210261640
Unavailable
