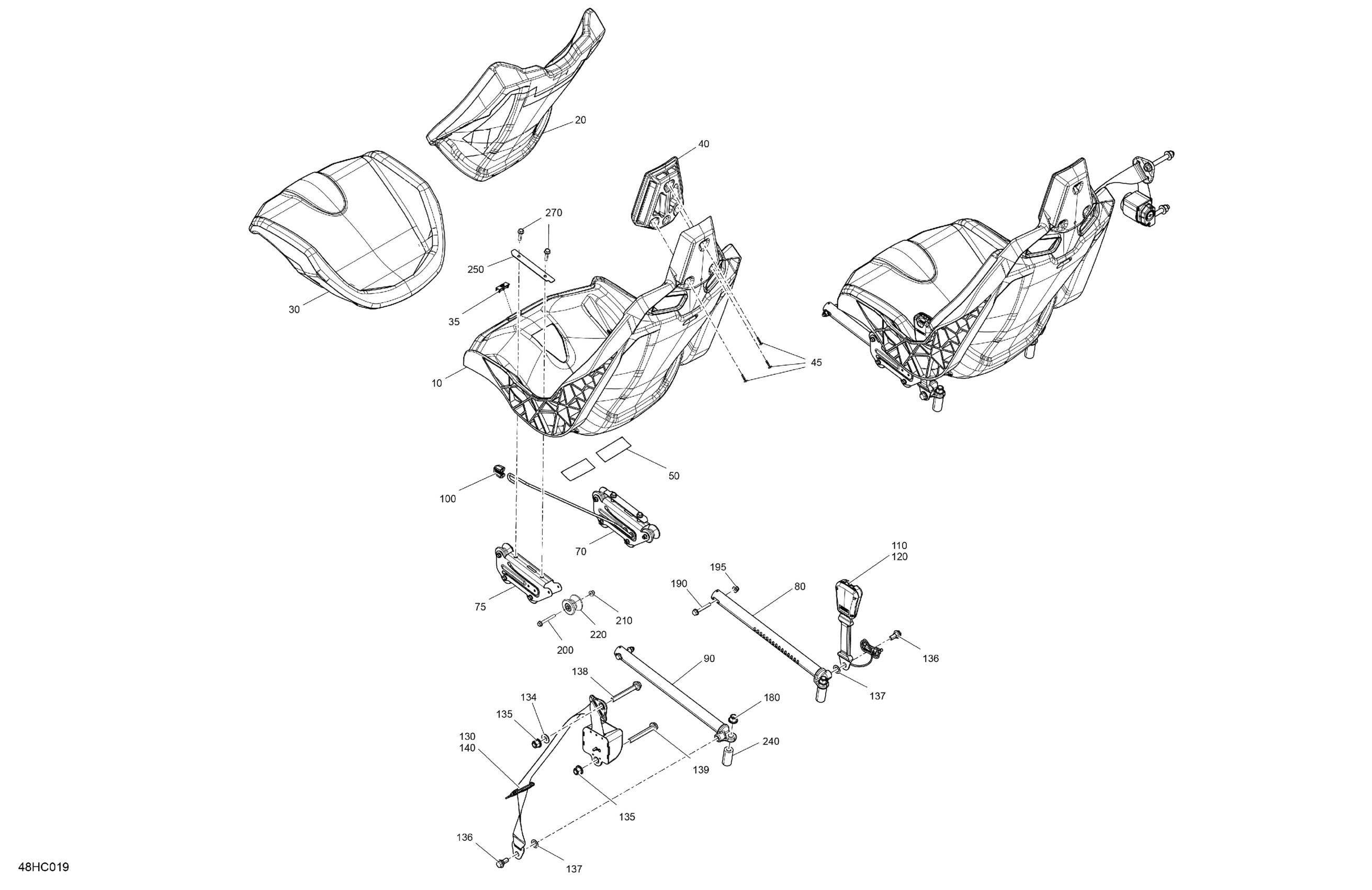

Can-Am 002 - Maverick Turbo RR - DS - North America, 2023 07- Body - Seat Diagram

#

Description
Price

10

Seat Shell Kit

708002065

$244.99

20

Backrest Ass'y

708002121

$349.99

30

Cushion Ass'y

708002124

$239.99

35

Stopper

708002670

$3.89

40

Headrest

708002131

$104.99

45

Torx Screw Truss Head K50X20 T20

250000760

$2.11

50

Velcro Tape

708002535

$4.14

70

Adjustable Trolley Kit

703500997

$63.99

75

Carriage

708003450

$63.99

80

Seat Rail

708003061

$53.99

90

Seat Rail

708003064

$53.99

100

Adjustment Handle

708002655

$16.99

110

Driver Buckle

708002714

$98.49

120

Passenger Buckle

708002385

$86.99

130

Safety Belt Passenger

708002654

$275.49

134

Flat Washer M12

250200102

$2.11

135

Elastic Flange Nut M12

233221416

$2.85

136

Safety Belt screw

708002504

$5.29

137

Position Washer

708000891

$1.29

138

Hex. Flange Screw M12 X 97.5

250000896

$10.54

139

Hex. Flange Screw M12 X 95

250000876

$6.77

140

Driver Side Safety Belt

708002811

$275.49

180

Elastic Flange Nut M12

233221416

$2.85

190

Hex. Flange Screw M8 X 55

207685554

$5.29

195

Elastic Flange Nut M8

233281464

$1.01

200

Hex. Flange Screw M6 X 50

207665054

$4.76

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

220

Wheel

708002134

$15.99

240

Rear Bushing

708002299

$10.99

250

Plate | Includes 250 to 250a

708003680

$2.69

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69
