Description

Price

10

OPERATOR GUIDE ENGLISH - Call your local BRP dealership

219002130

Unavailable

20

Tool Kit | Includes 90 to 90k

704700169

$70.99

20c

Socket Wrench 14/16MM

529000085

$6.55

20f

Screw Driver

529000021

$3.29

20h

Driven Open Tool

529000088

$17.99

20j

Torx Key T30

708200340

$1.28

35

Adjustment Wrench

529000057

$4.29

40

Waranty Registration Form

219400038

Unavailable

100

Front Fascia

705011317

$269.99

110

Torx Truss Screw M6 X 16

250000721

$1.69

120

Panel Nut M6 X 1.0

250100198

$2.11

150

Torx Screw M6 X 45

250000748

$1.90

200

Fascia Removable Grid

705011318

$219.99

210

Clip

517306478

$1.09

500

LH Headlamp Structure

705011319

$229.99

510

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100198

$2.11

540

Torx Screw K50 X 16

250000720

$1.69

550

Stainless Steel Flat Washer

234062670

$2.11

600

RH Headlamp Structure

705011320

$229.99

700

Gulfstream Blue, LH Front Fender | Model Gulfstream Blue

705015455

$309.99

710

Torx Truss Screw M6 X 16

250000721

$1.69

730

Panel Nut M6 X 1.0

250100198

$2.11

740

Clip

517306478

$1.09

750

Flat Washer M6.6 X 22

250200162

$2.32

760

Support Plate

705003841

$0.99

770

Torx Screw M6 X 20

250000722

$1.68

800

Gulfstream Blue, RH Front Fender | Model Gulfstream Blue

705015456

$309.99

900

Removable Hood

705011322

$109.99

910

Clip

517306478

$1.09

930

Torx Truss Screw M6 X 25

250000807

$2.11

940

Bushing

705502616

$10.49

1000

LH Front Mudguard

705011323

$56.99

1010

Torx Screw M6 X 20

250000712

$2.11

1020

Hex. Flange Elastic Nut M6

233261494

$1.58

1040

Torx Truss Screw M6 X 16

250000721

$1.69

1050

Clip

517306478

$1.09

1070

Tuflok Plastic Rivet

293150230

$1.47

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1090

Panel Nut M6 X 1.0

250100198

$2.11

1100

RH Front Mudguard

705011324

$56.99

1200

LH Rocker Panel

705011331

$79.99

1210

Panel Nut M6 X 1.0

250100198

$2.11

1220

Pop Rivet 3/16”

293150101

$2.09

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

1250

Flat Washer M6.6 X 22

250200162

$2.32

1300

RH Rocker Panel

705011332

$77.49

3800

LH Front 60" Mud Guard Extension

705011325

$56.99

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

3820

Tuflok Plastic Rivet

293150230

$1.47

3900

RH Front 60" Mudguard Extension

705011326

$56.99

4200

Hinge Cover

705012703

$15.99

4300

LH Front Safety Net

707900676

$219.99

4400

RH Front Safety Net | Includes 4400 to 4400a

707900605

$219.99

4400a

Upper Link

707900049

$43.99

4500

Safety Net Link

707900592

$4.14

4510

Torx Screw K50 X 16

250000720

$1.69

5400

LH Door Panel Ass'y | Not shown

715006764

$109.99

5500

RH Door Panel Ass'y

715006765

$109.99

7200

LH Stricker Pin Link

705207303

$22.99

9300

Front Mud Flap Model T

705012793

$56.99

9310

Tuflok Plastic Rivet

293150230

$1.47

9400a

Mirror

705011497

$80.49

9400b

Wide Angle Lateral Mirror

705013819

$80.49

9400c

LH Mirror Rod Ass'y

705013823

$48.99

9400d

Mirror Rod

705013817

$52.99

9400e

LH Mirror Support

705012897

$73.99

9400f

RH Mirror Support

705012898

$73.99

9400g

Torx Truss Screw M6 X 20

250000350

$5.29

9400h

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

9400j

Hex. Flange Screw M8 X 35

207683544

$1.69

9400k

Hex. Flange Elastic Nut M6

233261494

$1.58

9400m

Hex. Flange Elastic Nut M8

233281414

$1.47

9400n

Stainless Steel Flat Washer

234082670

$2.11

9600

LH Front Flasher Support Model T

705012791

$58.49

9610

Tuflok Plastic Rivet

293150230

$1.47

9640

Stainless Steel Flat Washer

234082670

$2.11

9700

RH Front Flasher Support Model T

705012792

$58.49

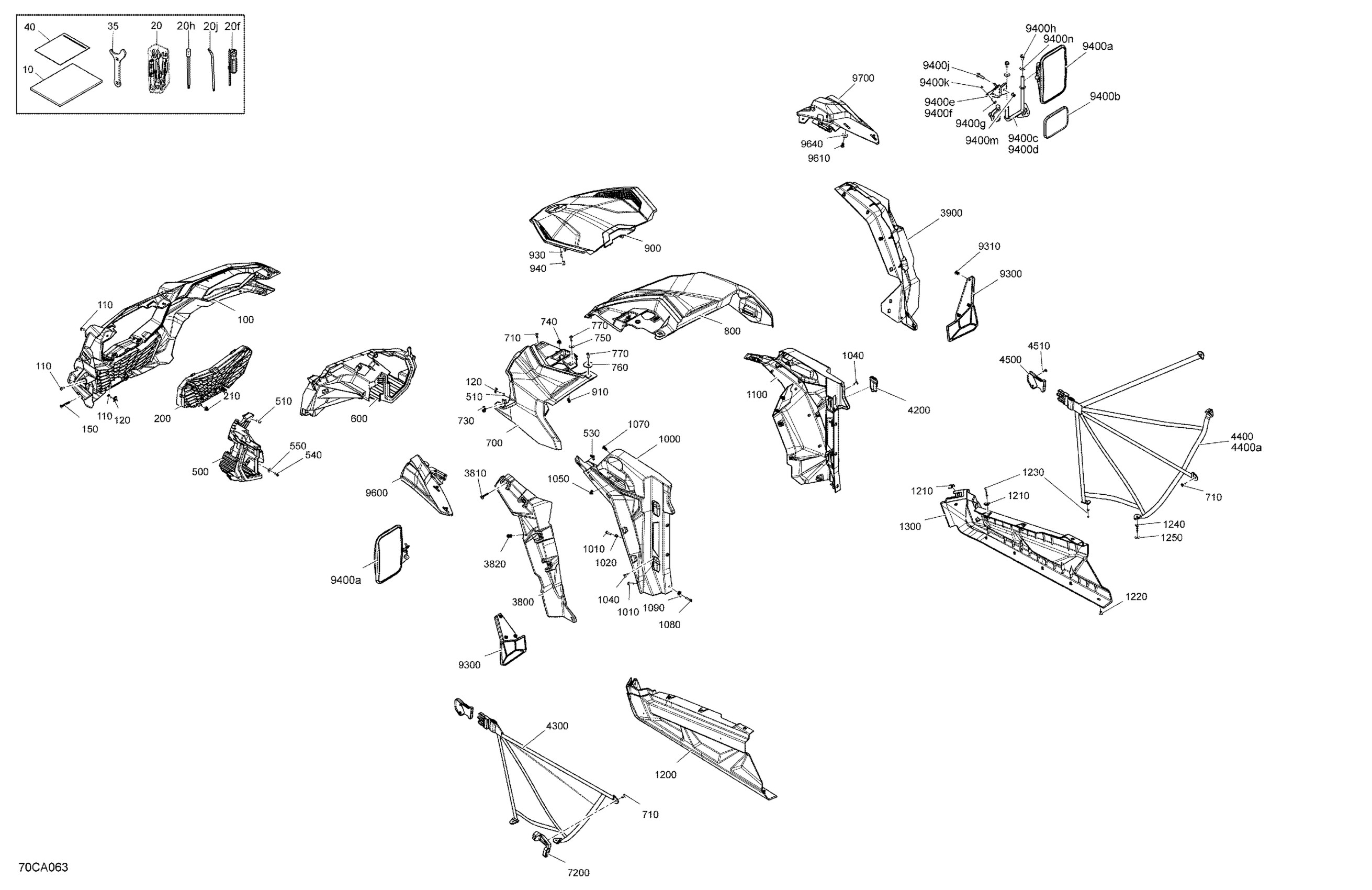

Can-Am 002 - Maverick Trail 1000 - DPS - T Regulation, 2021 07- Body - Front Section Diagram
