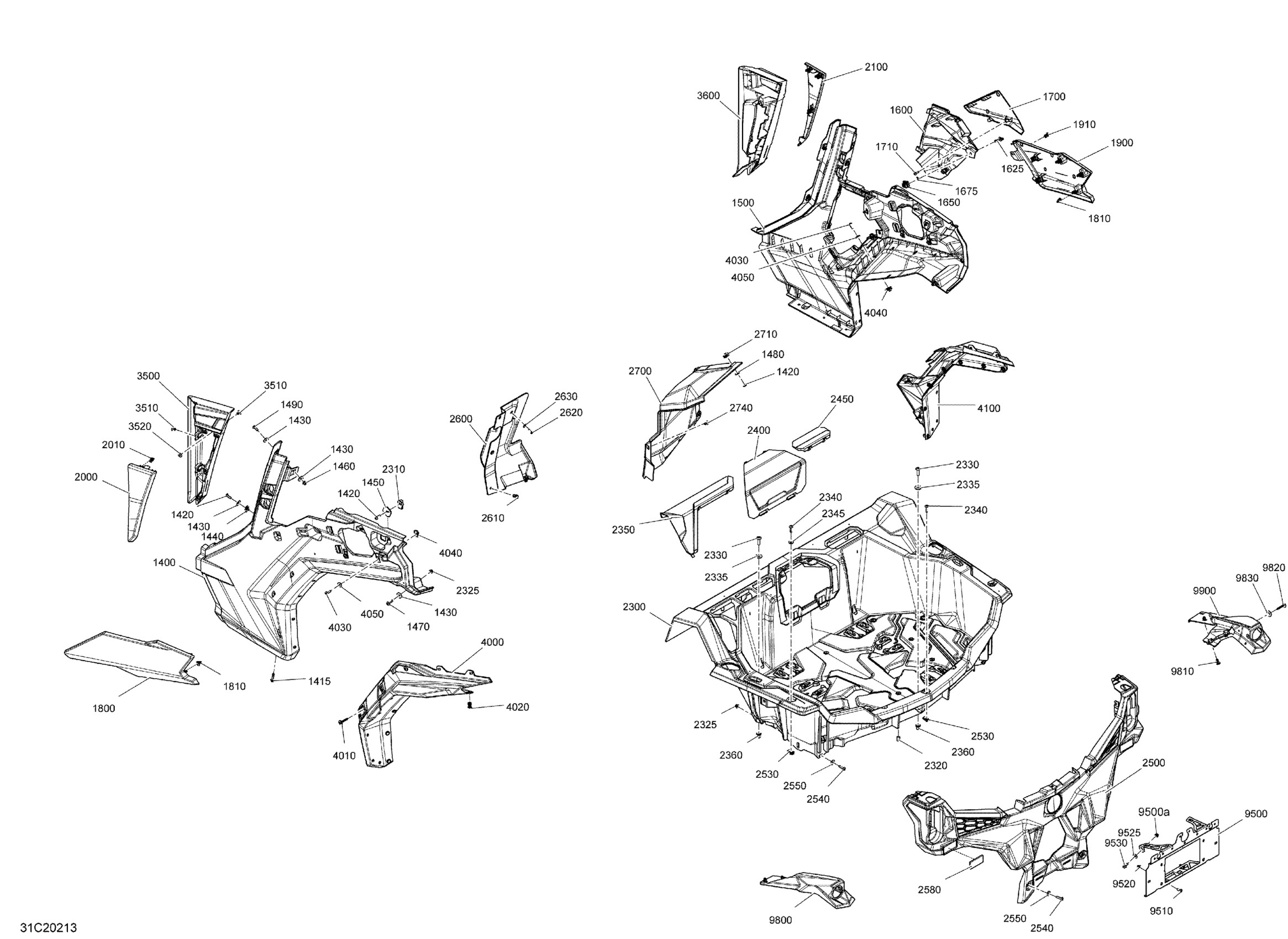

Can-Am 002 - Maverick Sport MAX 1000R - T Regulation, 2020 09- Body - Rear Section - Red Diagram

#

Description
Price

1400

LH Rear Panel

705011335

$204.99

1415

Hex. Flange Screw M6 X 25

207662554

$1.48

1420

Torx Screw M6 X 20

250000722

$1.68

1430

Flat Washer M6.6 X 22

250200162

$2.32

1440

Panel Nut M6 X 1.0

250100198

$2.11

1450

Support Plate

705003841

$0.99

1460

Hex. Elastic Flange Nut M6

233161464

$1.01

1470

Torx Truss Screw M6 X 25

250000807

$2.11

1480

Stainless Steel Flat Washer

234062670

$2.11

1490

Torx Screw M6 X 20

250000722

$1.68

1500

RH Rear Panel

705011336

$204.99

1600

Air Filter Acces Door

705011338

$75.99

1625

Quarter Turn

708400278

$4.29

1650

Clip

708400285

$3.99

1675

Washer

708400286

$3.99

1700

Red, Acces Panel Trim | DPS, Red Model

705016392

$109.99

1710

Torx Screw K50 X 16

250000720

$1.69

1800

Red, LH Rear Cargo Trim | DPS, Red Model

705012427

$189.99

1810

Clip

517306478

$1.09

1900

Red, RH Rear Cargo Trim | DPS, Red Model

705012428

$189.99

1910

Tuflok Plastic Rivet

293150230

$1.47

2000

Can-Am Red, LH Rear Trim Panel

705013597

$139.99

2010

Clip

517306478

$1.09

2100

Can-Am Red, RH Rear Trim Panel

705013598

$139.99

2300

Rear Box

705016885

$399.99

2310

Panel Nut M6 X 1.0

250100224

$2.11

2320

Hex. Coupling Nut M6

250100207

$2.00

2325

Hex. Flange Elastic Nut M6

233261466

$2.00

2330

Hex Torx Truss M8 X30

250000745

$3.17

2335

Stainless Steel Flat Washer

234082670

$2.11

2340

Torx Truss Screw M6 X 25

250000807

$2.11

2345

Stainless Steel Flat Washer

234062670

$2.11

2350

CVT Air Inlet Cover

705011339

$18.99

2360

Insert Half Hex Body M8 x 1.25

293450307

$2.69

2400

Access Cover Kit

715006766

$27.99

2450

Air Intake Cover

705011340

$16.99

2500

Rear Fascia

705011426

$169.99

2530

Panel Nut M6 X 1.0

250100198

$2.11

2540

Torx Truss Screw M6 X 25

250000807

$2.11

2550

Stainless Steel Flat Washer

234062670

$2.11

2580

Red Reflector

520001820

$20.99

2600

LH Rear Wheel Arch Protector

705014231

$41.49

2610

Tuflok Plastic Rivet

293150230

$1.47

2620

Torx Screw K50 X 16

250000720

$1.69

2630

Washer M5

250200025

$0.74

2700

RH Rear Inner Fender

705011513

$41.49

2710

Panel Nut M6 X 1.0

250100198

$2.11

2740

Tuflok Plastic Rivet

293150230

$1.47

3500

LH Rear Fixed Panel

705013140

$49.99

3510

Pop Rivet 3/16”

293150108

$1.19

3520

Washer M5

250200025

$0.74

3600

RH Rear Fixed Panel

705013141

$49.99

4000

LH Rear Mud Guard

705012097

$56.99

4010

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

4020

Tuflok Plastic Rivet

293150230

$1.47

4030

Torx Screw M6 X 20

250000722

$1.68

4040

Panel Nut M6 X 1.0

250100198

$2.11

4050

Stainless Steel Flat Washer

234062670

$2.11

4100

RH Rear 60" Mud Guard Extension

705012098

$56.99

9500

Licence Plate Support Ass'y | Includes 9500 to 9500a

705014946

$114.99

9500a

Insert Half Hex Body M6 x 1.0

250100199

$3.19

9510

Torx Truss Screw M6 X 16

250000721

$1.69

9520

Hex. Flange Elastic Nut M6

233261466

$2.00

9525

Stainless Steel Flat Washer

234062670

$2.11

9530

Hex. Flange Screw M6 X 16

207661654

$2.11

9800

LH Rear Flasher Support Model T

705012799

$58.49

9810

Tuflok Plastic Rivet

293150230

$1.47

9820

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

9830

Stainless Steel Flat Washer

234082670

$2.11

9900

RH Rear Flasher Support Model T

705012800

$30.49
