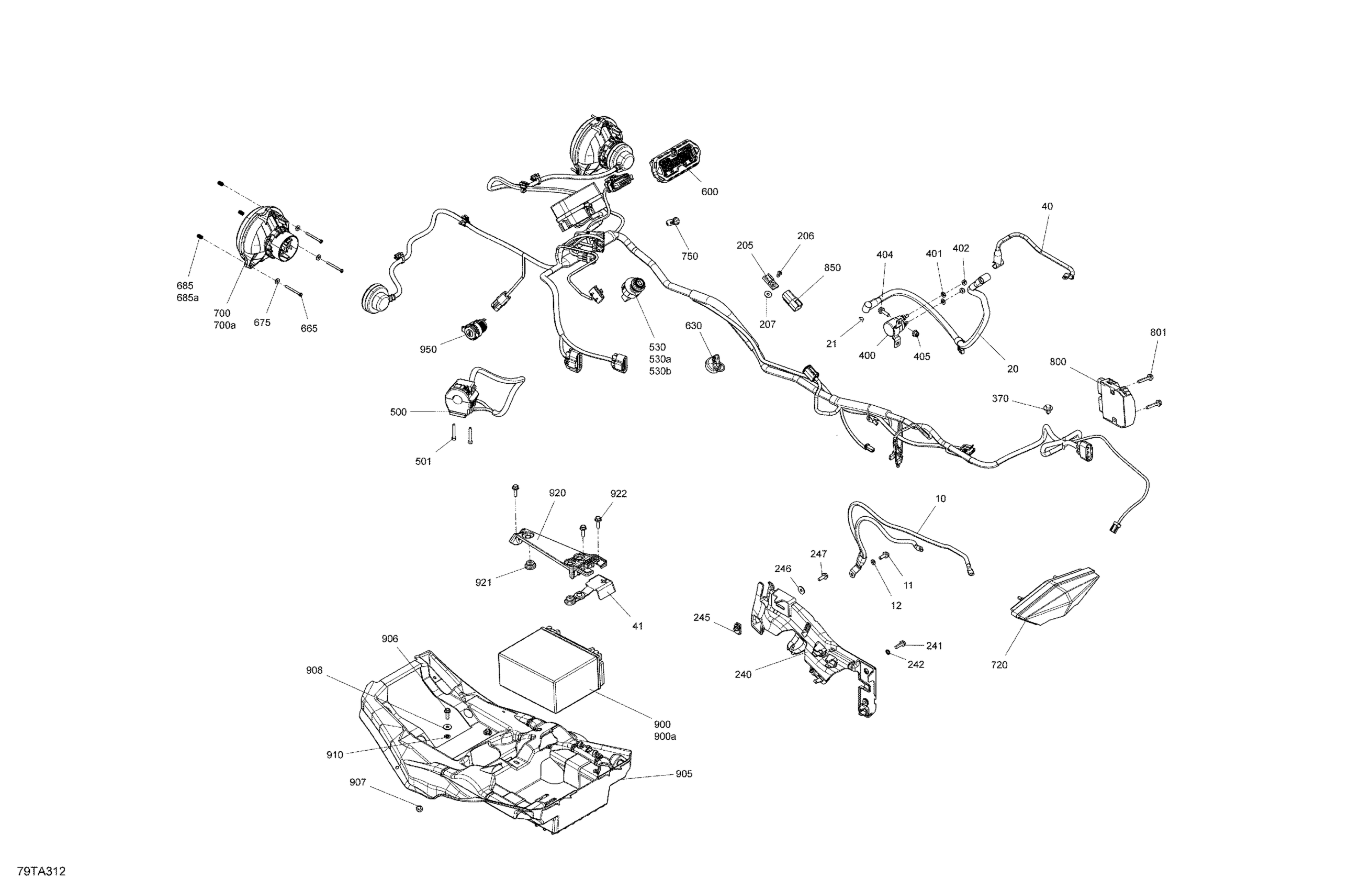

Can-Am 001 - Outlander 450 EFI - STD_XU - International, 2021 08- Electric - System Diagram
#
10
Ground Cable
710004380
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
20
Positive Cable | Engine 450
710004381
Unavailable
21
Elastic Stop Nut M6
232561434
Unavailable
40
Positive Cable
710004376
Unavailable
41
Battery Cable Cap
710006729
Unavailable
201
Light Cable
710005780
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
220
Wiring Harness Adaptor | Not shown
710008292
Unavailable
240
Cable Bracket
707001280
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
245
Panel Nut M6 X 1.0
250100198
Unavailable
246
Flat Washer 6 mm
234062410
Unavailable
247
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
370
Mount Dart
293730040
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561434
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
500
Multi-Function Handle | Except Model Europe, Except T3
710005072
Unavailable
500
Multi Fonction Control | Package STD
710006229
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Ignition Switch | Except Model Pro, T3
710007864
Unavailable
530
Terminal Dess One-Wire | Except Model Europe
515178840
Unavailable
530a
Not Available As Spare Part - Friction Washer
Unavailable
530b
Not Available As Spare Part - Friction Washer
Unavailable
600
Speedometer
710006216
Unavailable
605
Safety Nut (DESS Switch)
278002963
Unavailable
630
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
675
Flat Washer
517225900
Unavailable
685
Spring
517168600
Unavailable
685a
Spring
517168600
Unavailable
700
Low Beam
710003900
Unavailable
700a
Bulb, 12V 35/35W
710000871
Unavailable
720
Tail Light Housing Ass'y | Includes 29 to 31
710001203
Unavailable
750
Pilot Lamp Cap
710003910
Unavailable
800
Voltage Regulator | Package-DPS, Model-Europe
710005569
Unavailable
800
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
801
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
850
Housing
710003006
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
910
Push Nut
732610072
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
950
DC Outlet
710001248
Unavailable
