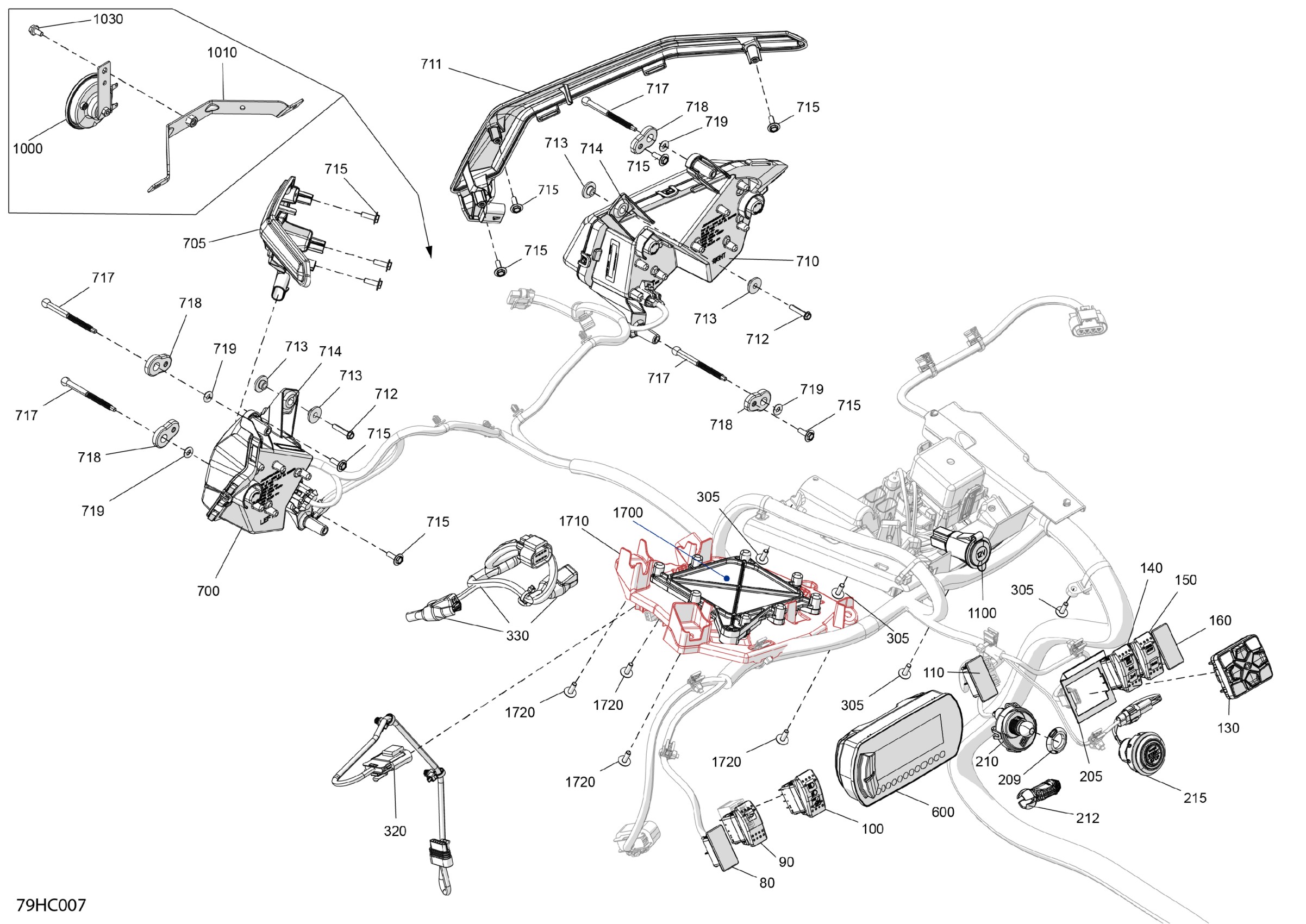

Can-Am 001 - Maverick Turbo RR - DS - CE, 2023 08- Electric - Front Section Diagram

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Horn Switch

710006788

$23.49

Headlights Switch

710007022

$68.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch Multifunction

710006059

$87.99

Differential Switch

710006040

$31.99

Differential Mode Switch

710006557

$31.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Rubber Stopper

707900778

$3.29

Safety Nut (DESS Switch)

278002963

$3.28

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

Grey, Can-Am DESS Key

515179384

$63.49

Start-Stop Button | Not Shown

710005213

$60.49

Screw PT Type K-50 X 16

250000959

$2.11

Cable Throttle Pedal

710005291

$239.99

Front Differential Wiring Harness

710006807

$49.99

Multifunction Gauge Compact Mono

710008108

$409.99

RH Front Auxiliary LED Light

710008812

$449.99

RH Fascia Trim

705011486

$43.99

LH Front Auxiliary LED Light

710008811

$459.99

LH Fascia Trim

705011485

$43.99

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.69

Screw PT Type K-50 X 16

250000959

$2.11

Ajustment Screw

710005837

$6.35

Ball Socket

293900157

$9.59

O-Ring

293300192

$4.92

Horn

710004791

$38.99

Horn Bracket

710006573

$13.49

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

12V Power Outlet

710005374

$33.99

Differential Module

710008842

$479.99

FDM Support

710005807

$8.60

Screw PT Type K-50 X 16

250000959

$2.11
