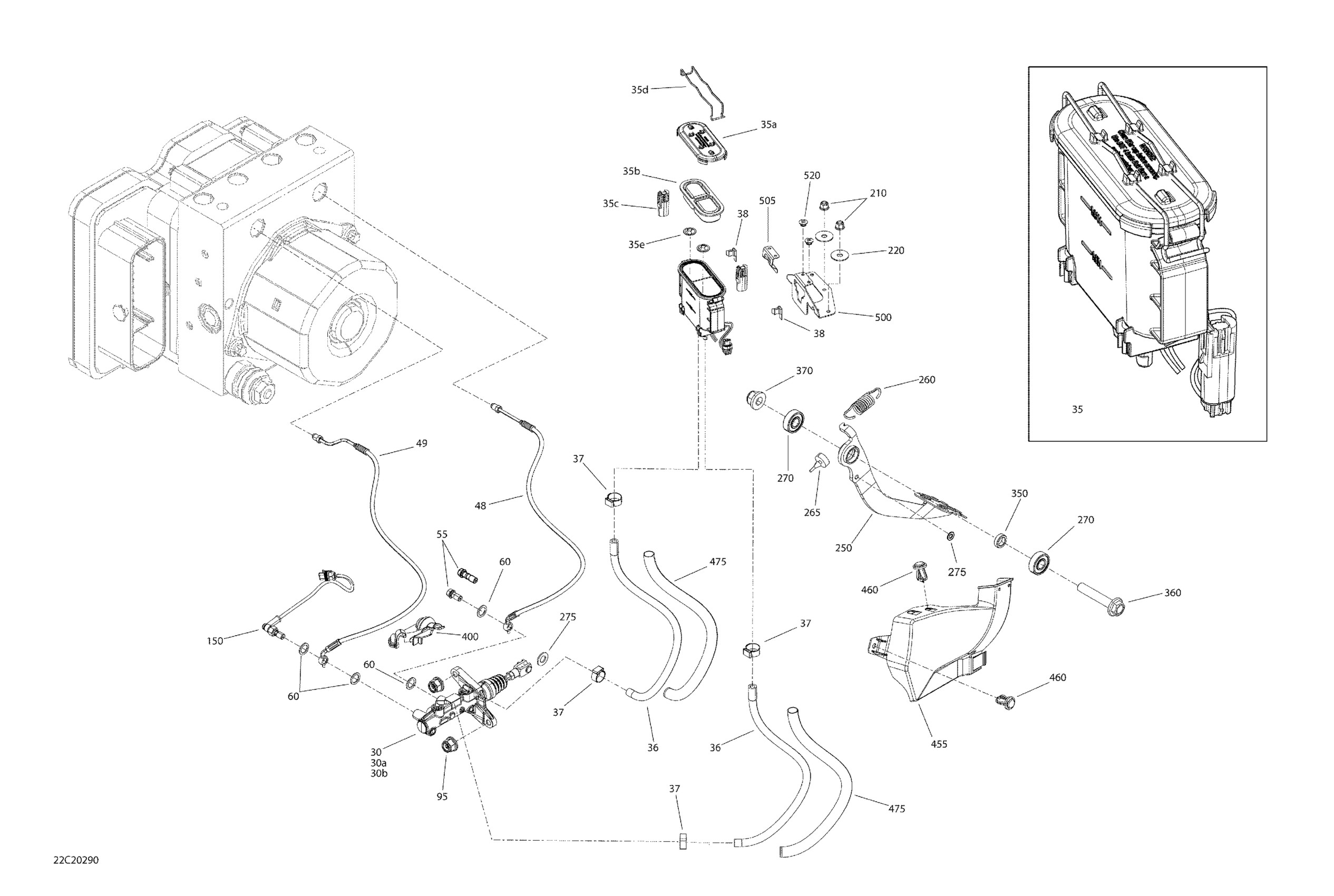

Can-Am 001 - Maverick Trail 800 - T Regulation, 2020 06- Brakes - Master Cylinder Diagram

#

Description
Price

30

Master Cylinder | Includes 30 to 30b

705601803

$379.99

30a

Boot Rod Kit

715900373

$51.99

30b

Fork Kit

715900374

$26.49

35

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

35a

Diaphragm Cover Ass'y

219800350

$17.59

35b

Diaphragm Cover Ass'y

219800350

$17.59

35c

Oil Level Sensor

705601073

$54.99

35d

Spindle Lock

705601294

$15.81

35e

Push Nut | Not shown

211100002

$2.19

36

Hose

705601801

$10.49

37

Oetiker Clamp

293650046

$2.89

38

Clip

710001343

$9.09

48

Front Master Cylinder Hose

705601663

$79.49

49

Rear Master Cylinder Hose

705601664

$86.99

55

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Double Banjo Bolt

705601723

$7.90

60

Copper Washer

705601628

$4.44

95

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Brake Switch

705601250

$59.49

150

Brake Switch

705601669

$51.99

210

Elastic Flange Nut M5

233251494

$2.11

220

Flat Washer

250200040

$1.90

250

Brake Pedal

705601537

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

270

Bearing

705600458

$19.99

275

Nylon Flat Washer M8

250200183

$1.39

350

Bushing

705601622

$14.81

360

Hex. Flange Screw M10 X 55

207605546

$2.11

370

Hex. Flange Elastic Nut M10

233201436

$2.11

400

Hose Support

705601750

$4.55

455

Master Cylinder Deflector

705601626

$8.60

460

Tuflok Plastic Rivet

293150230

$1.47

475

Tubing 16 Mm 1000Mm Long

219704408

$7.49

500

Reservoir Support

705601644

$14.76

505

Stopper Bracket

705601608

$7.55

520

Pop Rivet 3/16"

390402200

$0.35
