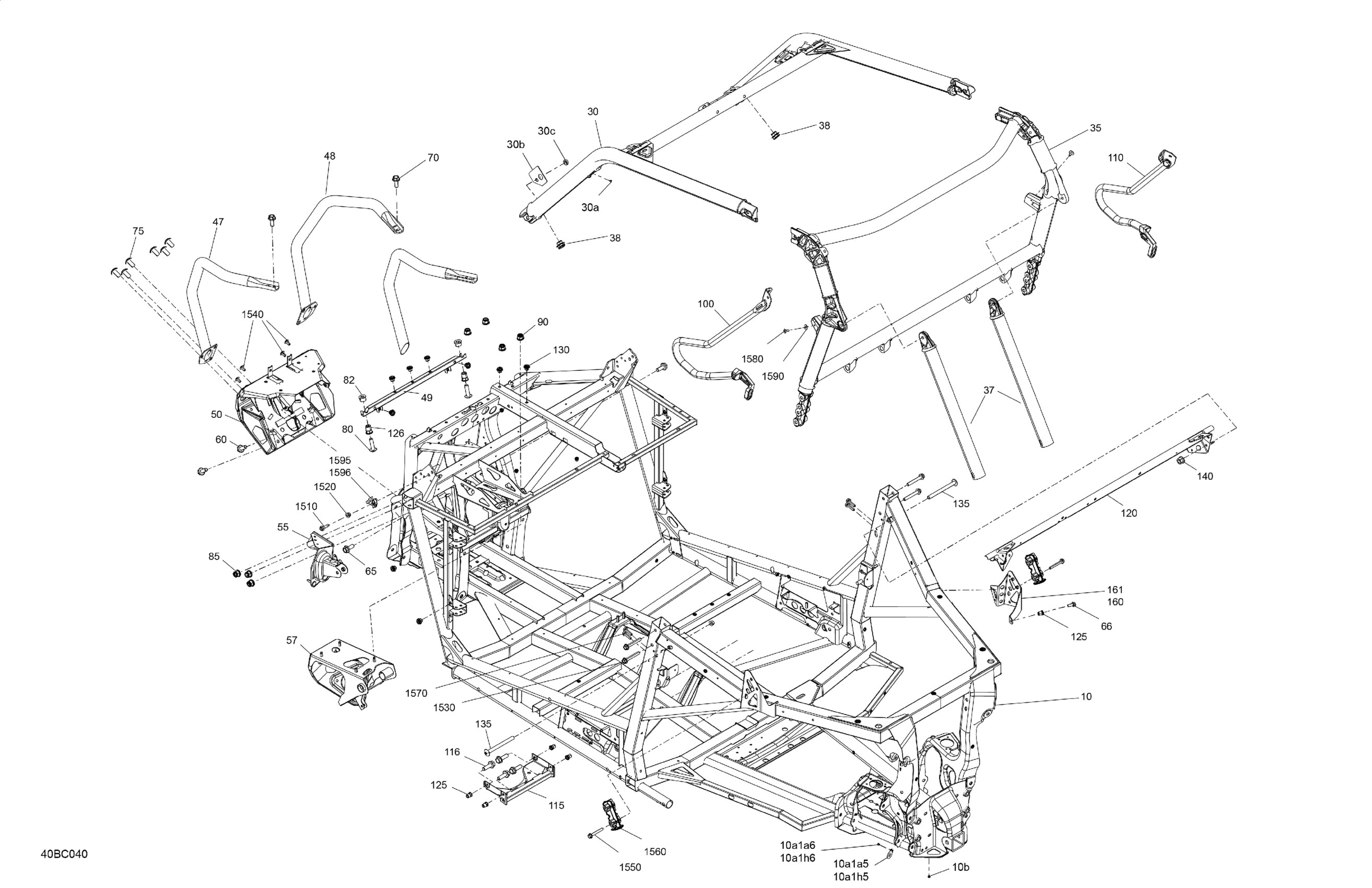

Can-Am 001 - Maverick Trail 700 - BASE - International, 2023 06- Frame - System Diagram

#

Description
Price

10

Chassis Ass'y

715009352

$2,969.99

10a1a5

Shim

705209479

$3.29

10a1a6

Pop Rivet 3/16"

390402200

$0.35

10a1h5

Shim

705209479

$3.29

10a1h6

Pop Rivet 3/16"

390402200

$0.35

10b

Pop Rivet 3/16"

390402200

$0.35

30

Deep Black, Front Cage Kit | Includes 30 to 30c

715009362

$619.99

30a

Pop Rivet 3/16"

390402200

$0.35

30b

Shim

705210164

$13.17

30c

Bushing

705210165

$38.99

35

Deep Black, Rear Cage Ass'y

715009349

$619.99

37

Deep Black, Rear Cage Extension

705211125

$44.99

38

Insert Half Hex Body M6 x 1.0

250100199

$3.19

47

LH Front Bumper

705206303

$116.49

48

RH Front Bumper

705206308

$116.49

49

Cross Member

705206313

$39.99

50

Deep Black, Front Bumper

705209043

$457.49

55

Brake Support

705206217

$49.99

57

DPS Support

705206294

$71.99

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

66

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

75

Torx Truss Screw M8 X 16

250000746

$3.38

80

Hex Torx Truss M8 X30

250000745

$3.17

82

Bushing

705207229

$14.49

85

Hex. Elastic Flange Nut M8

233281416

$1.48

90

Hex. Elastic Flange Nut M8

233281416

$1.48

100

LH Protector Tube

705206747

$46.49

110

RH Protector Tube

705206752

$46.49

115

Bearing Support

705211563

$48.99

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

120

Central Tube

705209434

$159.99

125

Insert Half Hex Body M8 x 1.25

293450307

$2.69

126

Insert Half Hex Body M8 x 1.25

293450307

$2.69

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Torx Truss M8 X 90

250000806

$7.51

140

Hex. Flange Nut

233081436

$2.00

160

LH Rear Anchorage Support

705211569

$19.99

161

RH Rear Anchorage Support

705211571

$19.99

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Flange Elastic Nut M10

233201466

$3.17

1530

Hex. Flange Screw M10 X 70

207607056

$4.29

1540

Torx Truss Screw M8 X 16

250000746

$3.38

1550

Hex. Flange Screw M8 x 60

207686044

$3.07

1560

Sleeve

705210648

$9.90

1570

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

1580

Torx Head Screw M6 X 16

250000717

$2.11

1590

Stainless Steel Flat Washer

234062670

$2.11

1595

LH Front Anchorage

705209913

$38.99

1596

RH Front Anchorage

705209914

$38.99
