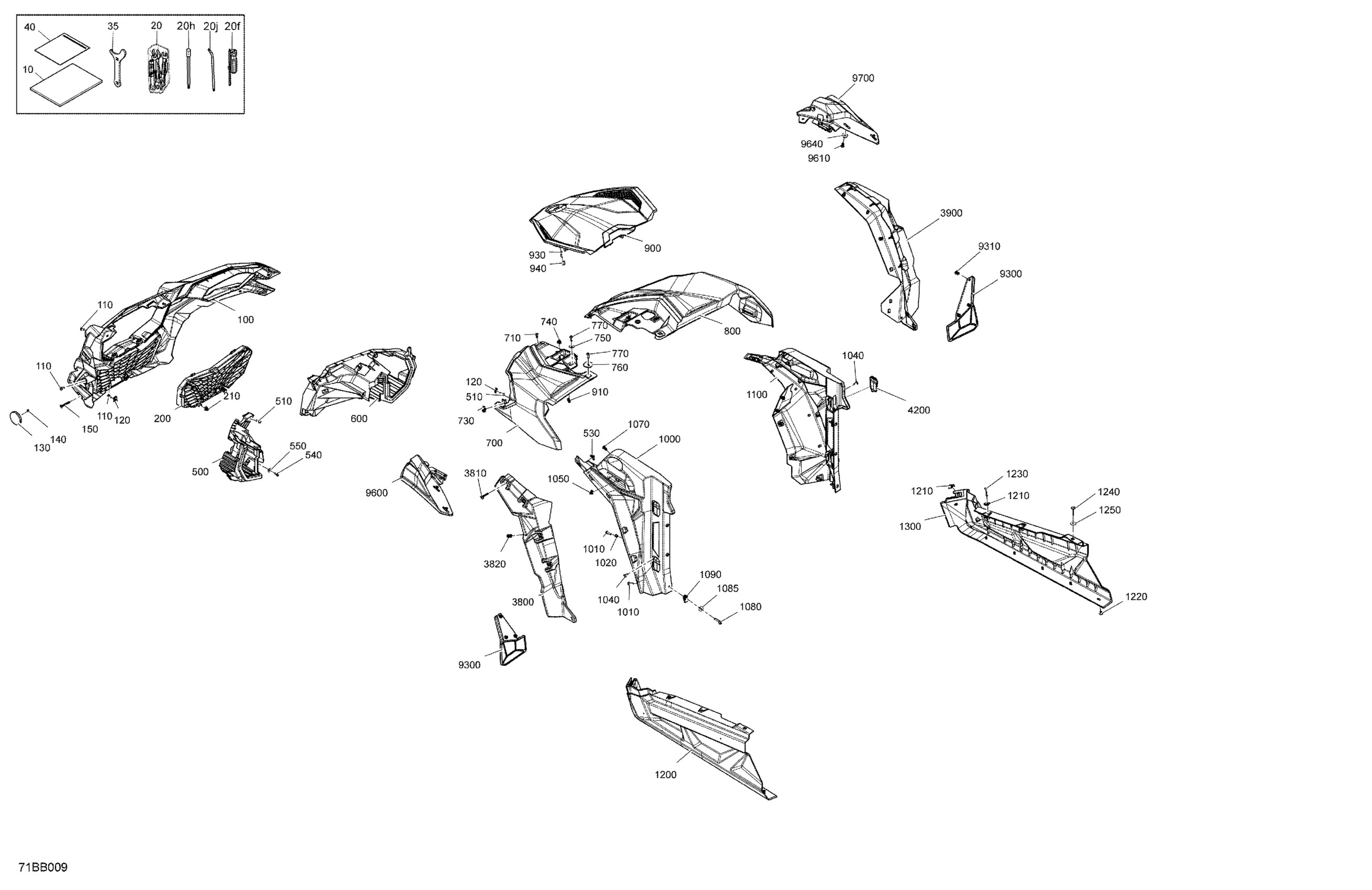

Can-Am 001 - Maverick Sport 1000R - DPS - T Regulation, 2022 07- Body - Front Section Diagram

English Operator Guide

219002184

Unavailable

English Operator Guide | With ABS

219002188

Unavailable

Tool Kit | Includes 90 to 90k

704700169

$70.99

Socket Wrench 14/16MM

529000085

$6.55

Screw Driver

529000021

$3.29

Driven Open Tool

529000088

$17.99

Torx Key T30

708200340

$1.28

Adjustment Wrench

529000057

$4.29

Waranty Registration Form

219400038

Unavailable

Front Fascia

705011317

$269.99

Torx Truss Screw M6 X 16

250000721

$1.69

Panel Nut M6 X 1.0

250100198

$2.11

Amber Reflector | Except Europe Model

705011222

$14.49

Elastic Flange Nut M5

233251494

$2.11

Torx Screw M6 X 45

250000748

$1.90

Fascia Removable Grid

705011318

$219.99

Clip

517306478

$1.09

LH Headlamp Structure

705011319

$229.99

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw K50 X 16

250000720

$1.69

Stainless Steel Flat Washer

234062670

$2.11

RH Headlamp Structure

705011320

$229.99

Timeless Black, LH Front Fender

705015580

$204.99

Torx Truss Screw M6 X 16

250000721

$1.69

Panel Nut M6 X 1.0

250100198

$2.11

Clip

517306478

$1.09

Flat Washer M6.6 X 22

250200162

$2.32

Support Plate

705003841

$0.99

Torx Screw M6 X 20

250000722

$1.68

Timeless Black, RH Front Fender

705015581

$204.99

Removable Hood

705011322

$109.99

Clip

517306478

$1.09

Torx Truss Screw M6 X 25

250000807

$2.11

Bushing

705502616

$10.49

LH Front Mudguard

705011323

$56.99

Torx Screw M6 X 20

250000712

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Torx Truss Screw M6 X 16

250000721

$1.69

Clip

517306478

$1.09

Tuflok Plastic Rivet

293150230

$1.47

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

RH Front Mudguard

705011324

$56.99

LH Rocker Panel

705011331

$79.99

Panel Nut M6 X 1.0

250100198

$2.11

Pop Rivet 3/16”

293150101

$2.09

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Flat Washer M6.6 X 22

250200162

$2.32

RH Rocker Panel

705011332

$77.49

LH Front 60" Mud Guard Extension

705011325

$56.99

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

Tuflok Plastic Rivet

293150230

$1.47

RH Front 60" Mudguard Extension

705011326

$56.99

Hinge Cover

705012703

$15.99

Front Mud Flap Model T

705012793

$56.99

Tuflok Plastic Rivet

293150230

$1.47

LH Front Flasher Support Model T

705012791

$58.49

Tuflok Plastic Rivet

293150230

$1.47

Stainless Steel Flat Washer

234082670

$2.11

RH Front Flasher Support Model T

705012792

$58.49
