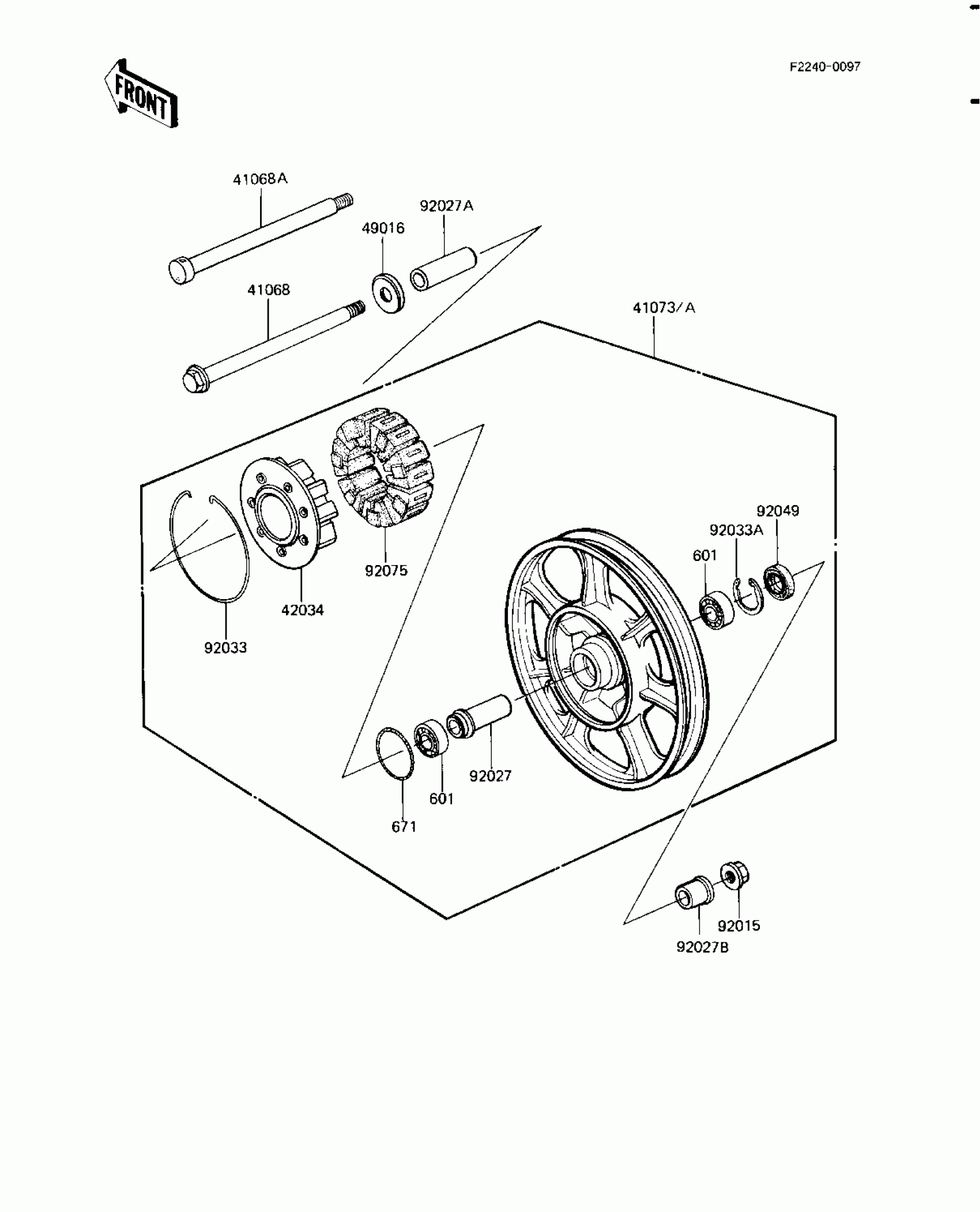

Kawasaki Shaft REAR WHEEL/HUB Diagram

Description

Price

41068A

AXLE,RR,L=286

41068-1088

$89.18

41073A

WHEEL-ASSY,RR,SOLID,B

41073-1185-21

$635.99

42034

COUPLING,RR HUB

42034-1011

$265.19

49016

COVER-SEAL

49016-1019

$8.53

92015

NUT,FLANGED,18MM

92015-2186

$18.57

92027

COLLAR

92027-1124

Unavailable

92027A

COLLAR

92027-1126

$31.79

92027B

COLLAR,FR AXLE,L=27

92027-1318

$18.73

92033

RING-SNAP

92033-1019

$16.56

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92075

DAMPER,SHOCK,RR HUB

92075-1121

$135.89

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

$45.75

671

O RING,80MM

671B2580

$6.57
