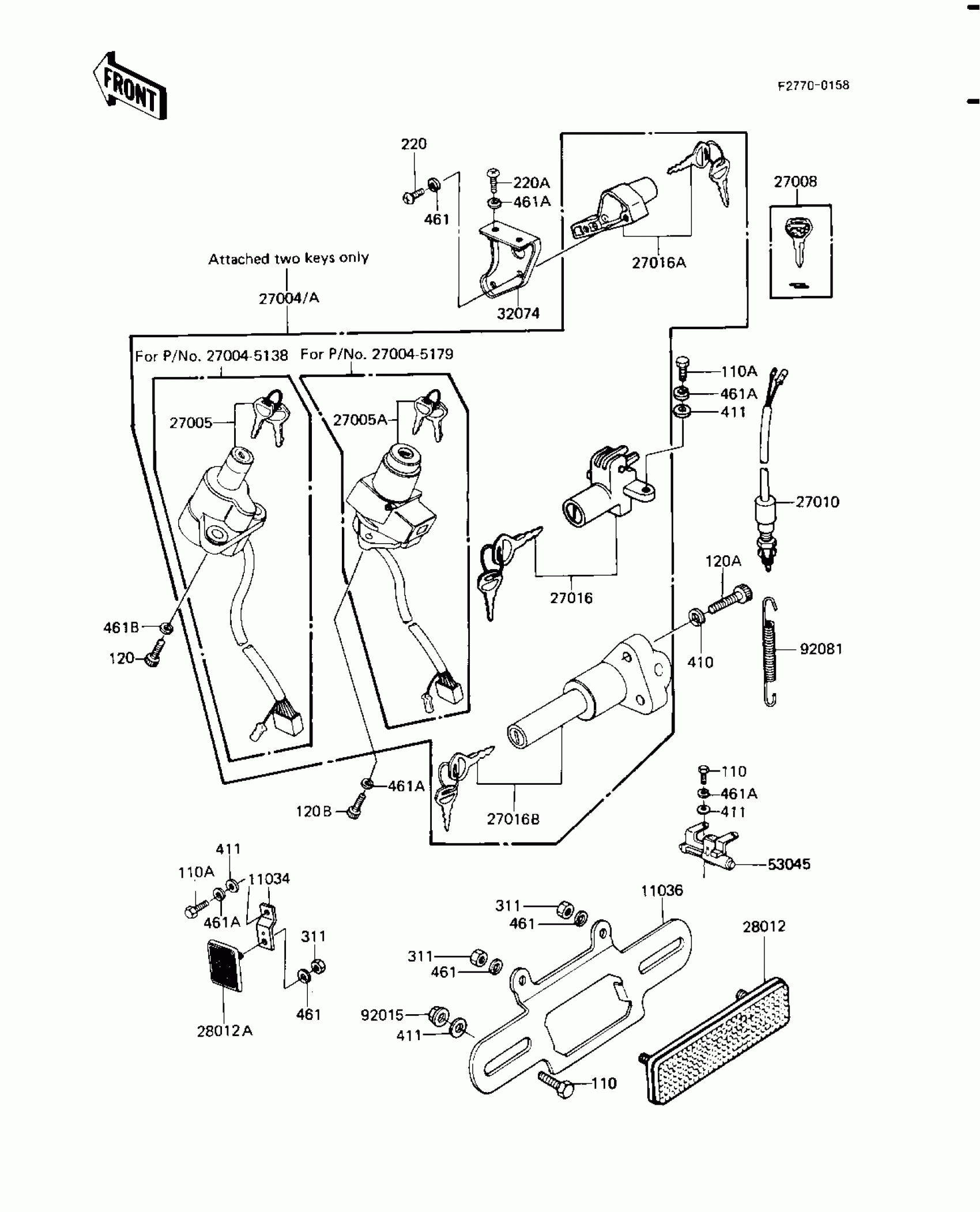

Kawasaki Shaft IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

11034

BRACKET

11034-1929

Unavailable

11036

BRACKET,REFLECTOR,RR

11036-1150

Unavailable

27004A

SWITCH-ASSY,ALL

27004-5179

$245.27

27005A

SWITCH-ASSY-IGNITION

27005-5035

$192.72

27008

KEY-LOCK,BLANK

27008-1103

$20.31

27010

SWITCH,REAR BRAKE

27010-1019

$35.68

27016

LOCK ASSY,SEAT

27016-5015

$109.44

27016A

LOCK-ASSY,HELMET

27016-5070

Unavailable

27016B

LOCK-ASSY,STAND

27016-5043

$102.64

28012

REFLECTOR-REFLEX,RR

28012-1005

$28.34

28012A

REFLECTOR-REFLEX,FR

28012-1009

$26.23

32074

BRACKET-LOCK

32074-1026

$7.59

53045

HOOK ASSY,HELMET

53045-1001

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92081

SPRING,BRAKE LAMP SWI

92081-1086

Unavailable

110

BOLT-UPSET,6X12

112G0612

$1.45

110A

BOLT-UPSET 6X14

112B0614

Unavailable

120A

BOLT-SOCKET,8X30

120P0830

$2.62

120B

BOLT-SOCKET,6X16

120S0616

$1.23

220

SCREW PAN HEAD 5X8

220B0508

$0.46

220A

SCREW PAN HEAD 6X10

220B0610

$3.14

311

NUT-HEX

311B0500

$0.47

410

WASHER PLAIN 8MM

410B0800

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 5MM

461F0500

$0.69

461A

WASHER SPRING 6MM

461F0600

$0.69
