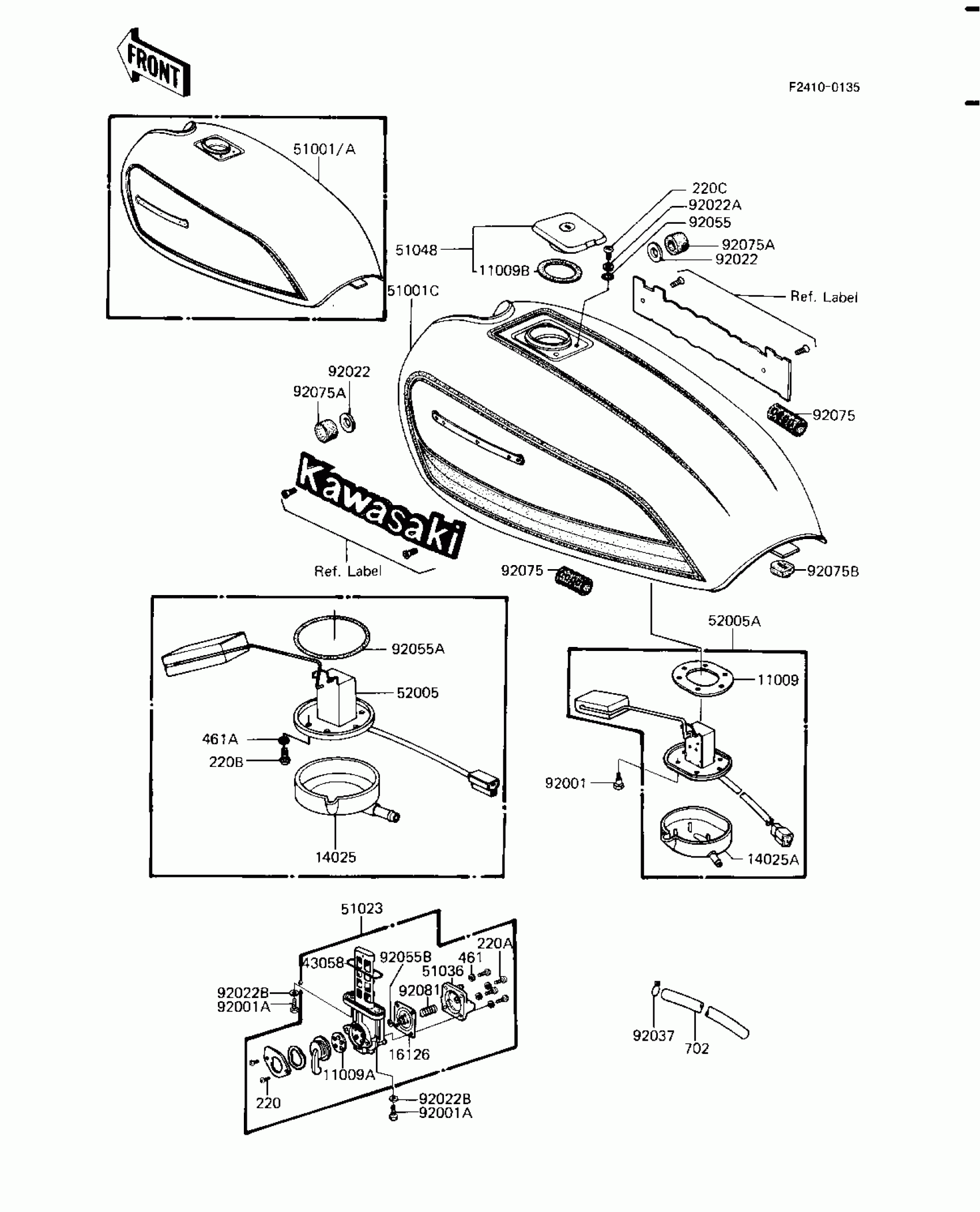

Kawasaki Shaft FUEL TANK Diagram
#
Description
Price
11009
GASKET,FUEL GAUGE
11009-1037
Unavailable
11009A
GASKET,FUEL TAP
11009-1044
$19.31
11009B
GASKET,FUEL TANK CAP
11009-1051
$10.97
14025A
COVER,FUEL GAUGE
14024-1434
$35.39
16126
UNAVAILABLE IN PRICE BOOK
16126-103B
Unavailable
43058
"0" RING
43058-1001
$15.05
51001C
TANK-COMP-FUEL,EBONY
51001-5211-H8
$765.61
51023
TAP-ASSY,FUEL
51023-1174
Unavailable
51036
COVER ASSY,FUEL TAP
51036-1001
Unavailable
51048
CAP ASSY TANK
51048-1018
Unavailable
52005A
GAUGE,FUEL
52005-1026
Unavailable
92001
BOLT,FUEL GAUGE
92001-1069
$7.24
92001A
BOLT,6X20
92001-1091
$3.92
92022
WASHER,10.5X26X2.3
92022-044
$3.92
92022A
WASHER,5.3X10X0.8
92022-1038
$3.65
92022B
WASHER-PLAIN
92022-183
$3.92
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O
92055-1023
$3.92
92055B
"0" RING,DIAPHRAGM
92055-1068
Unavailable
92075
DAMPER,FUEL TANK
92075-084
$10.04
92075A
DAMPER,FUEL TANK
92075-125
$6.22
92075B
DAMPER,FUEL TANK
92075-295
$9.17
92081
SPRING,DIAPHRAGM
92081-1054
Unavailable
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW-PAN-CRSOSS,4X1
220B0412
$0.21
220C
SCREW PAN HEAD 5X10
220B0510
$0.69
461
WASHER SPRING 4MM
461F0400
Unavailable
702
TUBE-BREATHER (BULK)
702A071000
$13.38
