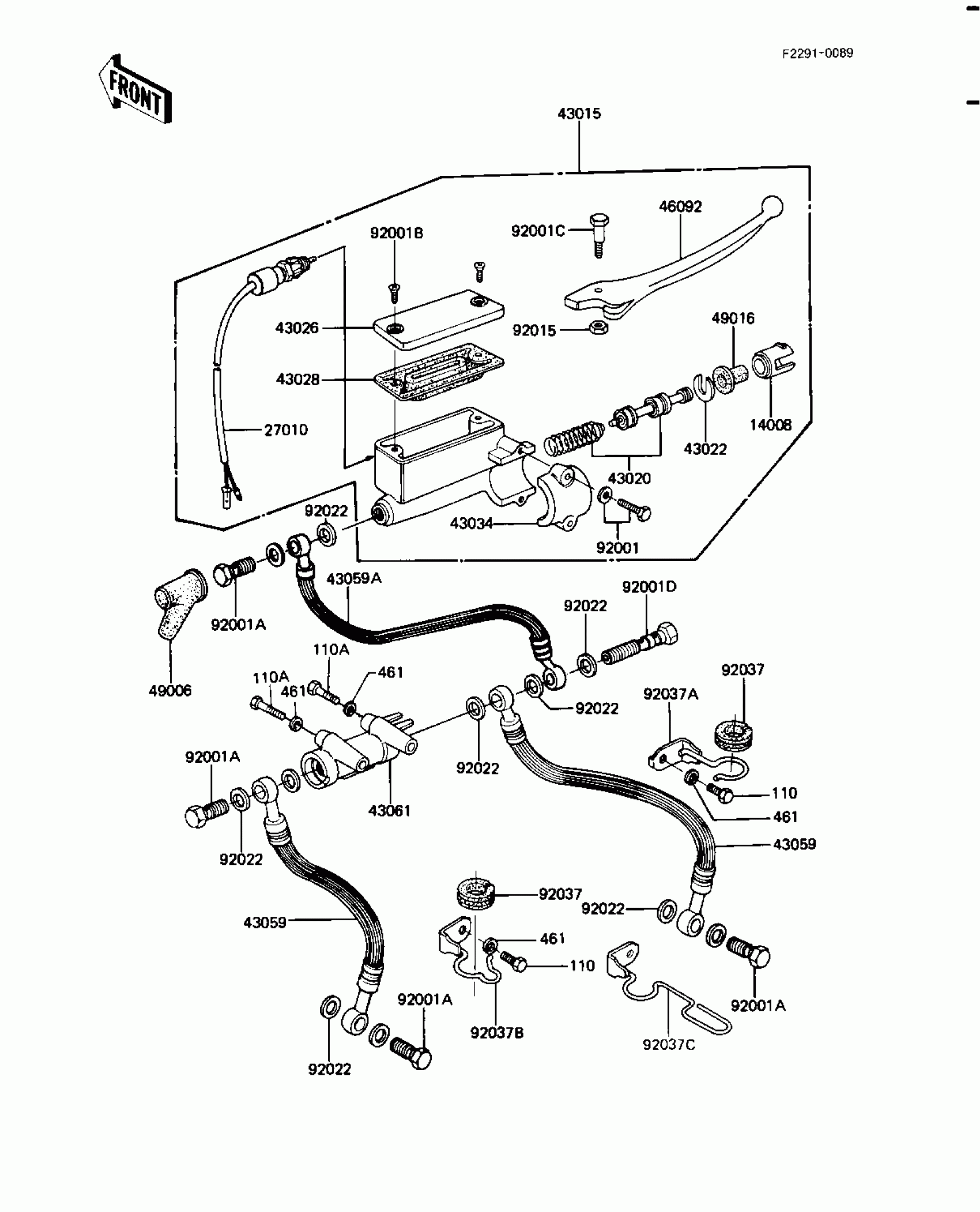

Kawasaki Shaft FRONT MASTER CYLINDER Diagram
#
Description
Price
14008
LINER,PISTON
14008-1007
Unavailable
27010
SWITCH,BRAKE
27010-1028
$33.48
43015
CYLINDER ASSY,FRONT
43015-1032
Unavailable
43020
PISTON-COMP-BRAKE
43020-1023
$95.02
43022
STOPPER-BRAKE,PISTON
43022-1001
Unavailable
43026
CAP-BRAKE
43026-1006
Unavailable
43028
DIAPHRAGM,MASTER CYLINDER
43028-1008
Unavailable
43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1001
Unavailable
43059
HOSE-BRAKE,FR,L=580
43059-1181
$120.05
43059A
HOSE-BRAKE,FR,L=460
43059-1182
$94.28
43061
JOINT-BRAKE
43061-1002
$72.14
46092
LEVER,FRONT BRAKE
46092-1004
Unavailable
49006
BOOT,DUST
49006-1041
$11.49
49016
COVER-SEAL,BRAKE PISTON
49016-1010
Unavailable
92001
BOLT,6X25,W/WASHER
43033-003
Unavailable
92001A
BOLT,OIL,L=23
92002-1888
$5.48
92001B
SCREW-CSK-CROS,5X12,BLACK
92001-1055
$5.84
92001C
BOLT,FR BRAKE LEVER
92001-1056
Unavailable
92001D
BOLT,OIL,L=37
92002-1909
$11.83
92015
NUT 6MM
312B0600
$0.72
92022
WASHER,10.5X15X1.5
43067-001
$2.15
92037
GROMMET,HOSE CLAMP
43064-006
$4.31
92037A
CLAMP,BRAKE HOSE
92037-1218
$22.68
92037C
CLAMP,BRAKE HOSE,LH
92037-1308
$29.22
110
BOLT-UPSET,6X12
112G0612
$1.45
110A
BOLT-UPSET,6X40
112G0640
$2.22
461
WASHER SPRING 6MM
461F0600
$0.69
