Description

Price

34003

HOLDER,REAR FOOTREST

34003-1025

$34.78

34003A

HOLDER-STEP

34003-1091

$87.70

34028

STEP,RR FOOTREST,L.H

34028-1024

$90.66

34028A

STEP,RR FOOTREST,R.H

34028-1025

$90.66

34028B

STEP-ASSY,FR,LH

34027-1106

Unavailable

34028C

STEP-ASSY,FR,RH

34027-1107

Unavailable

92015

NUT-LOCK,12MM

92019-009

$7.29

92015A

NUT,LOCK,10MM

92019-021

$6.11

92022

WASHER,22.5X30X2.6

92022-181

Unavailable

92022A

WASHER,25X36X2.3

92022-250

$5.00

92043

PIN,6X28

92043-1464

$8.10

92043A

PIN,8X35.5

92043-115

$9.51

113

BOLT,HEX HEAD 10X40

92001-1253

Unavailable

410

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

411

WASHER-PLAIN,10MM

411B1000

$0.93

550

PIN-COTTER,2.0X12

550D2012

$1.11

550A

PIN-COTTER,2.5X15

550D2515

$0.47

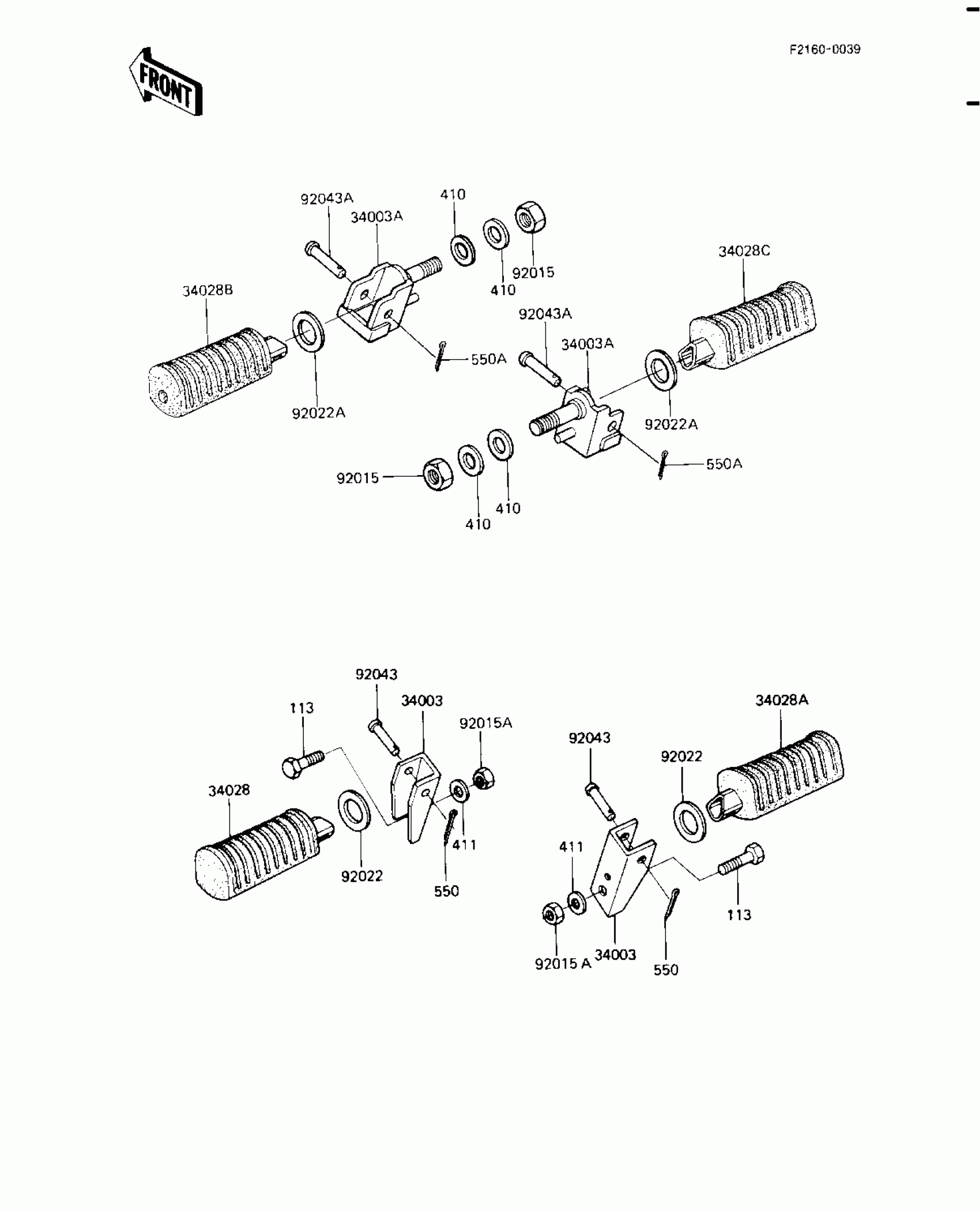

Kawasaki Shaft FOOTRESTS Diagram

HOLDER,REAR FOOTREST

HOLDER-STEP

STEP,RR FOOTREST,L.H

STEP,RR FOOTREST,R.H

STEP-ASSY,FR,LH

STEP-ASSY,FR,RH

NUT-LOCK,12MM

NUT,LOCK,10MM

WASHER,22.5X30X2.6

WASHER,25X36X2.3

PIN,6X28

PIN,8X35.5

BOLT,HEX HEAD 10X40

WASHER-PLAIN-SMALL,12MM

WASHER-PLAIN,10MM

PIN-COTTER,2.0X12

PIN-COTTER,2.5X15
