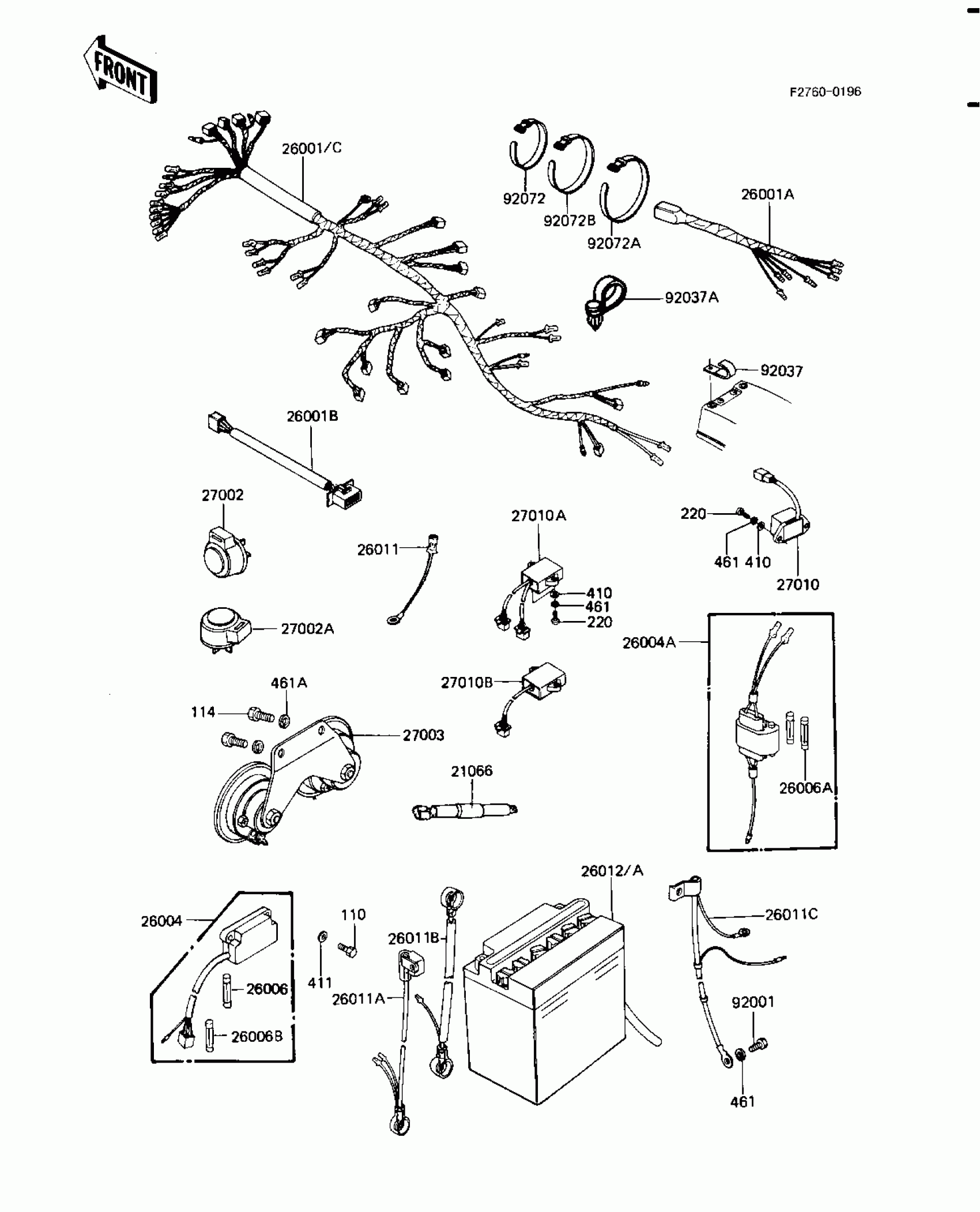

Kawasaki Shaft CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

26001A

HARNESS,RR

26001-1242

Unavailable

26001B

HARNESS,RESERVE LIGHT

26001-1248

$14.16

26001C

HARNESS,MAIN

26001-1466

$207.72

26004

FUSE-ASSY

26004-1011

$95.87

26004A

FUSE-ASSY,ACCESSORY

26004-1014

$70.27

26006

FUSE,10A,L=25

26006-003

$4.72

26006A

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.96

26006B

FUSE,30A,L=25

26006-1005

$5.06

26011

WIRE-LEAD,ACCESSORY GROUND

26011-1100

$11.79

26011B

WIRE-LEAD,BATTERY,(+)

26011-1120

$40.02

26011C

WIRE-LEAD,BATTERY,(-)

26011-1124

$40.02

26012

YUA BAT YB18L-A

26012-1039

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

27002A

RELAY,TURN SIGNAL

27002-016

Unavailable

27003

HORN

27003-1304

Unavailable

27010

SWITCH,RESERVE LIGHTI

27010-1024

Unavailable

27010B

SWITCH,SELF CANCELING

27010-1079

$125.17

92001

BOLT,6X10

92001-137

$6.52

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$6.57

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=218

92072-032

$5.00

92072B

BAND,L=186

92072-056

$5.00

110

BOLT 6X22

112B0622

$3.48

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER SPRING 8MM

461F0800

$0.40
