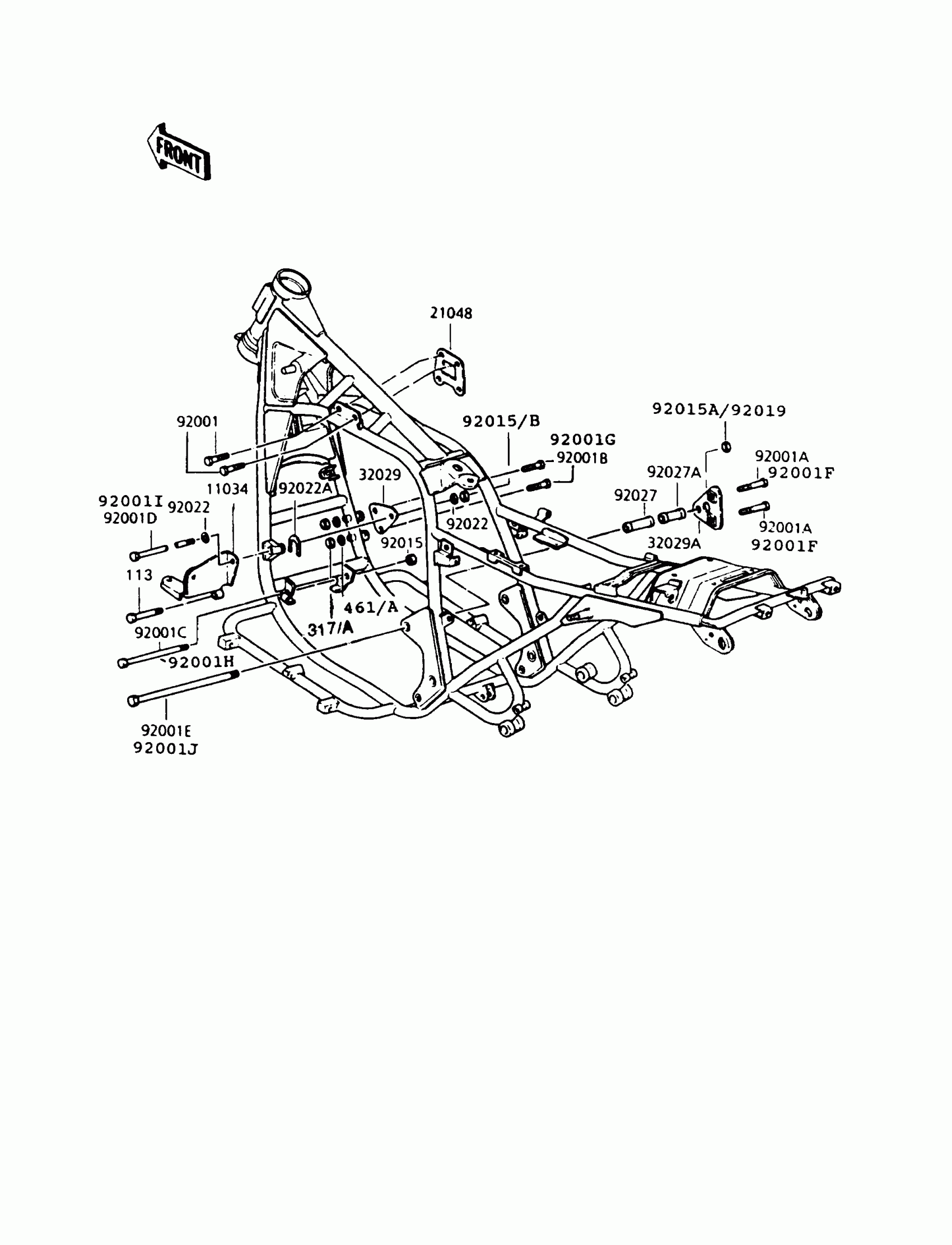

Kawasaki Police 1000 Frame Fittings Diagram

Description

Price

11034

BRACKET,SIREN

11034-4218

$70.90

21048

PLATE-COIL

21048-1001

$20.77

32029

BRACKET-ENGINE,FR,UPP

32029-1142

$19.74

32029A

BRACKET-ENGINE,RR

32029-1143

$22.48

92001

BOLT,6X10

92001-137

$6.52

92001F

BOLT,FLANGED,8X40,BLACK

92001-1612

$5.22

92001G

BOLT,FLANGED,8X65,BLACK

92001-1616

$9.00

92001H

BOLT,FLANGED,10X155,BLACK

92001-1620

$24.03

92001I

BOLT,FLANGED,10X320,BLACK

92001-1624

$34.51

92001J

BOLT,FLANGED,12X285,BLACK

92001-1655

$39.63

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92022

WASHER,10.5X22X4.5

92022-1022

$5.24

92022A

WASHER,U FORMED

92022-1259

$7.98

92027

COLLAR,13X25X54

92027-1310

$41.53

92027A

COLLAR,13X25X29.5

92027-1311

$29.42

113

BOLT,10X70

113B1070

$9.55

317A

NUT-HEX-SMALL,8MM,BLACK

317J0800

$4.37

461A

WASHER-SPRING,8MM,BLACK

461K0800

$2.33
