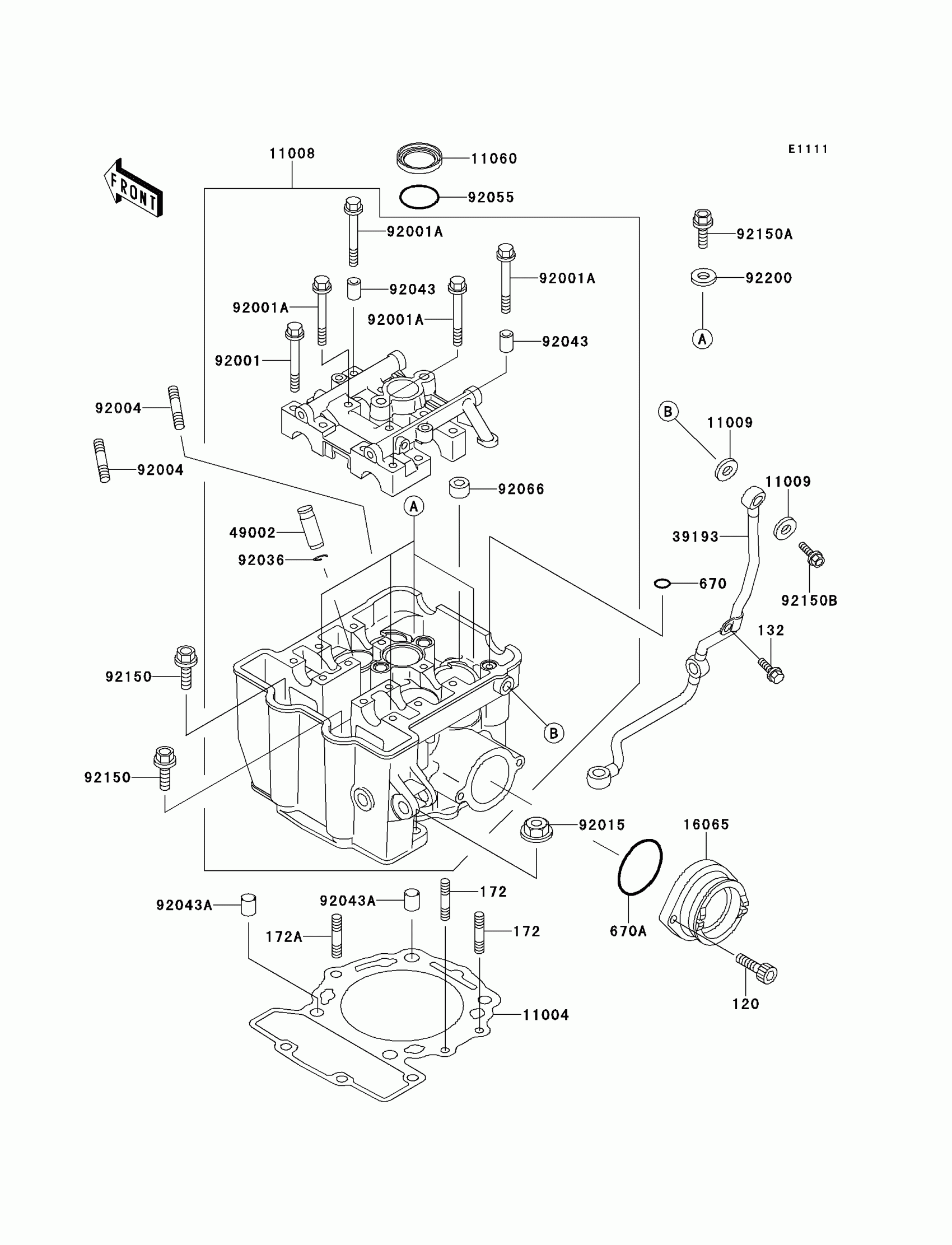

Kawasaki KLX650R Cylinder Head Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120Z0620

$4.35

132

BOLT-FLANGED-SMALL,6X10

132Y0610

$4.15

172

BOLT-STUD,6X22

172G0622

Unavailable

172A

BOLT-STUD,8X25

172G0825

$3.70

670

O RING,8MM

670D1508

$4.31

670A

O RING,48MM

670D3048

$7.34

11004

GASKET-HEAD

11004-1253

$75.34

11008

HEAD-COMP-CYLINDER

11008-1270

Unavailable

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11060

GASKET,CAP

11060-1297

$11.68

16065

HOLDER-CARBURETOR

16065-1104

$100.17

39193

PIPE-OIL

39193-1012

Unavailable

49002

GUIDE-VALVE

49002-1125

Unavailable

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92001A

BOLT,6X46

92001-1872

$4.31

92004

STUD,8X22

92004-1217

$5.65

92015

NUT,8MM

92015-1402

$4.69

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,30MM

92055-1047

$8.46

92066

PLUG,PT1/2X12.5

92066-1253

$8.98

92150

BOLT,SOCKET,8X30

92150-1156

$6.63

92150A

BOLT,10X225

92150-1618

$25.27

92150B

BOLT,BANJO,10X23

92150-1641

$14.23

92200

WASHER,10.5X19X2.3

92200-1042

$3.92
