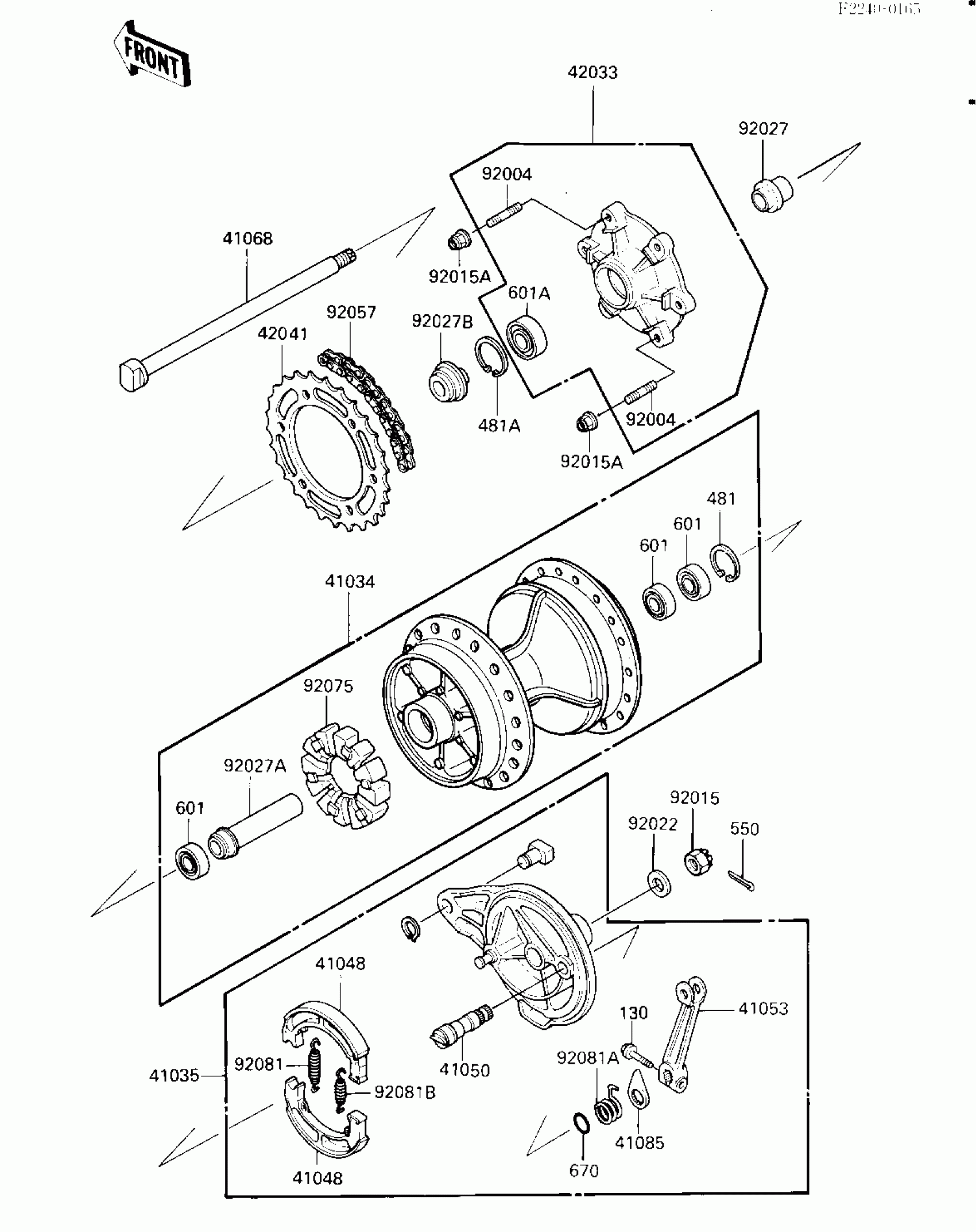

Kawasaki KLR250 REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
41034
DRUM-ASSY,REAR BRAKE
41034-1113
$551.44
41035
PANEL-ASSY-BRAKE,RR
41035-1173
$283.26
41048
SHOE-BRAKE
41048-1056
$29.87
41050
CAM-BRAKE
41050-1058
$44.80
41053
LEVER-BRAKE CAM
41053-1061
$86.11
41068
AXLE,RR
41068-1178
$87.77
41085
INDICATOR
41085-005
$12.96
42033
COUPLING-ASSY,REAR HUB
42033-1111
$249.60
42041
SPROCKET-HUB,44T
42041-1191
Unavailable
92004
STUD,8X18
92004-1149
$6.29
92015
NUT,CASTLE,16MM
42045-014
$9.91
92015A
NUT,LOCK,8MM
92015-1506
Unavailable
92022
WASHER,17.3X32X3.2
42046-009
$7.84
92027
COLLAR,REAR HUB COUPLING,L=23
92027-1770
$25.19
92027A
COLLAR,REAR BRAKE DRUM,L=78
92027-1823
$37.40
92027B
COLLAR,REAR HUB COUPLING,L=13
92027-1826
$37.01
92057
CHAIN,DRIVE,EK520L-OX104L(E)
92057-1181
$190.98
92075
DAMPER,SHOCK,RR HUB
92075-1068
$47.86
92081
SPRING,BRAKE SHOE
92081-1550
$9.49
92081A
SPRING,BRAKE CAM LEVER RETURN
92081-1615
$18.66
92081B
SPRING,BRAKE SHOE
92081-1766
$8.03
130
BOLT,FLANGED,6X25
130G0625
$1.17
481
CIRCLIP-TYPE-C,35MM
481J3500
$1.96
481A
RING-SNAP,42MM
92033-1041
$6.16
550
PIN-COTTER,4.0X35
550D4035
$2.17
601
BEARING-BALL,#6003UC3
601B6003U
$22.40
601A
BEARING-BALL,#6004UC3
601B6004U
$37.11
670
O RING,15MM
670B2015
$1.42
