Description

Price

32002

FRAME-COMP,RR

32002-1762

Unavailable

32002A

FRAME-COMP,FR

32002-1925

$1,127.56

32002B

FRAME-COMP,FR

32002-1926

$1,127.56

35011

STAY,FRAME,RR

35011-1236

$66.18

55020

GUARD,ENGINE

55020-1168

$235.98

92002

BOLT,SOCKET,8X40

92002-1181

$8.21

92002A

BOLT,FLANGED,8X20

92002-1417

$4.76

92002B

BOLT,6X20

92002-1418

$4.92

92002C

BOLT,SOCKET,8X25

92002-1442

$5.05

92002D

BOLT,SOCKET,8X10

92002-1443

$5.59

92015

NUT,18MM

92015-1404

$23.49

92015A

NUT,FLANGED,8MM

92015-1406

$4.45

92015B

NUT,25MM,T=12

92015-1546

$20.96

92022

WASHER,CLAW,18.5X30X2.3

92022-1555

$7.62

92027

COLLAR,L=12

92027-1842

$8.76

92027A

COLLAR,L=13.1

92027-251

Unavailable

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$9.28

92049A

SEAL-OIL,STEERING STEM

92049-1214

$16.69

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$36.32

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

$36.32

410

W-PLAIN-S

410F1800

$5.21

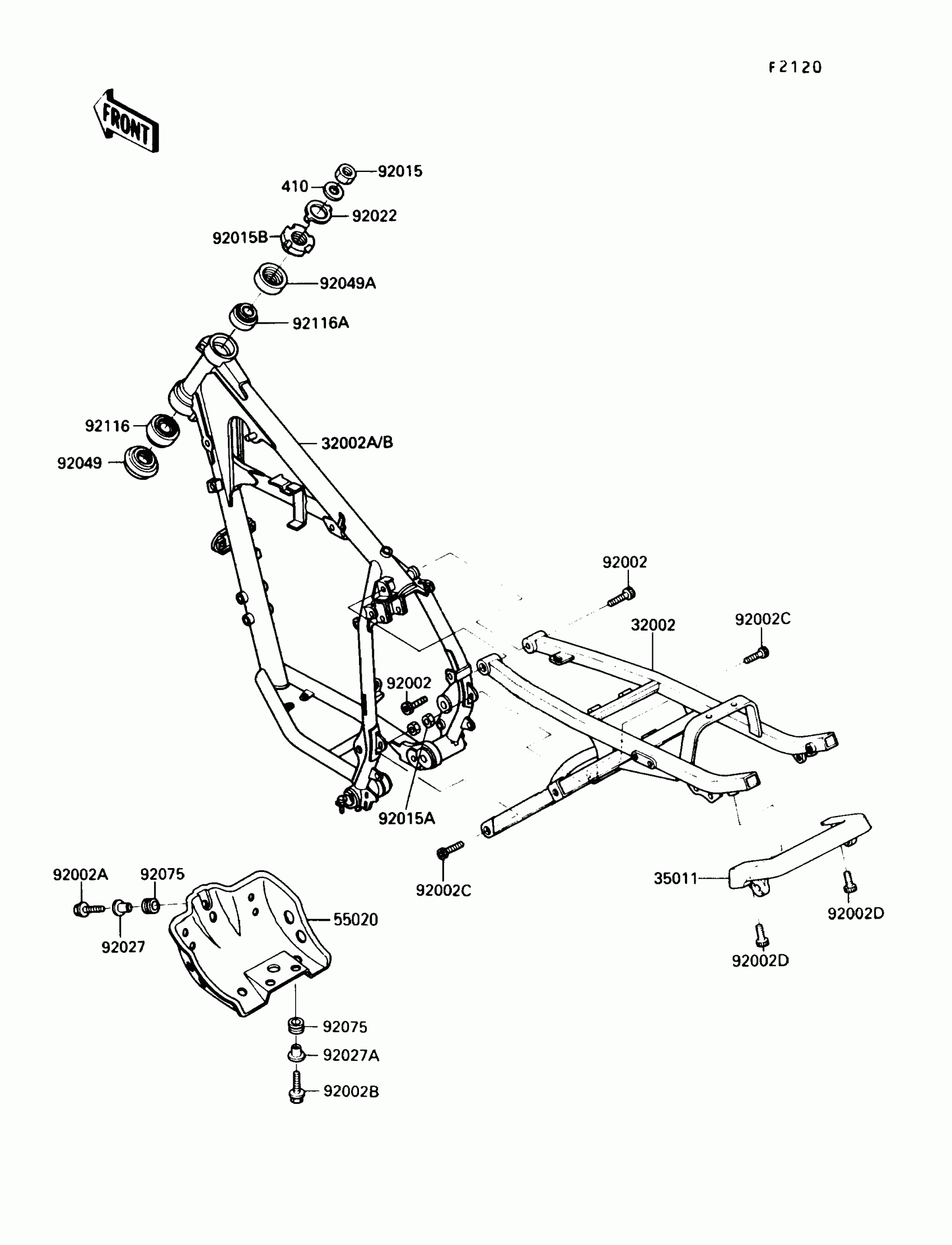

Kawasaki KLR250 Frame Diagram

FRAME-COMP,RR

FRAME-COMP,FR

FRAME-COMP,FR

STAY,FRAME,RR

GUARD,ENGINE

BOLT,SOCKET,8X40

BOLT,FLANGED,8X20

BOLT,6X20

BOLT,SOCKET,8X25

BOLT,SOCKET,8X10

NUT,18MM

NUT,FLANGED,8MM

NUT,25MM,T=12

WASHER,CLAW,18.5X30X2.3

COLLAR,L=12

COLLAR,L=13.1

SEAL-OIL,XMHE36X52X4J

SEAL-OIL,STEERING STEM

DAMPER RUBBER,RR FENR

BEARING-ROLLER,HR320/28XJ

BEARING-ROLLER,HICAP 32005JR

W-PLAIN-S
